Screw Electrolytic Capacitors ▏85℃ 2,000Hrs ▏CAWA

FEATURES
◆Used for air conditioner, general-purpose inverter、power supplies
◆RoHS Compliant
◆Endurance with ripple current: 85°C, 2，000 hours

Item	Performance
Operating Temp.	-40°C ~+85°C					-25°C ~+85°C
	10 ~ 100V					160 ~ 450V
Capacitance Toloerance	± 20% (120Hz, 20°C)
LeakageCurrent (at 20°C)	I = 0.01CV or 5 (mA) whichever is smaller (after 5 minutes) Where, C= rated capacitance in F. V= rated DC working voltage in V.
Dissipation Factor Tan at 120Hz, 20°C	Rated Voltage	10 ~ 100				160 ~ 450
	Tan (max)	See the case size list				0.15
Low Temperature Characteristics (at 120Hz)	Capacitance change: C(-25°C)/ C(+20°C) 0.7
Load Life Test at 20°C after subjected to DC voltage with rated rippled current applied for 2000 hours at 85°C	Test Time	2000 hours
	Capacitance Change	Within ±15% of initial value
	Dissipation Factor	Less than 175% of specified value
	Leakage Current	Within specified value
Shelf Life Test at 20°C after exposing them for 500 hours at 85°C without voltage applied. The rated voltage shall be applied to the capacitors beforethe measurements. (Refer to JIS 5102)	Test Time	500 hours
	Capacitance Change	Within ±20% of initial value
	Dissipation Factor	Less than 200% of specified value
	Leakage Current	Within specified value
Ripple Current & Frequency Multipliers	Frequency (Hz)	50 / 60	120	300	1K		10K up
	Multiplier	0.7	1.0	1.1	1.3		1.4
Ripple Current & Temperature Multipliers	Temperature(°C)	40	60	70	85
	Mutipliers	2.7	2.0	1.7	1.0
Standards	Satisfies Characteristic W of JIS C 5101-4

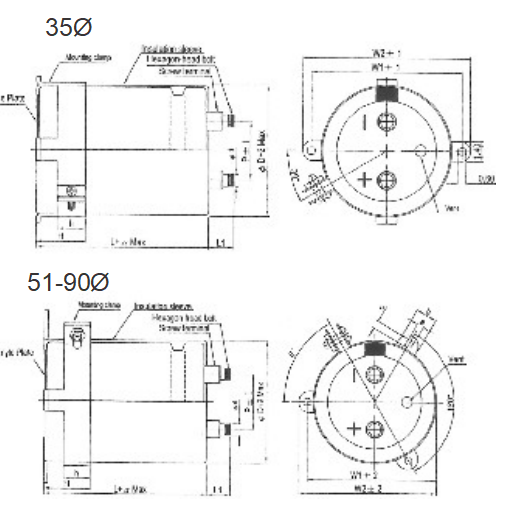

D	P		L1	W1	W2	H	h
35	12.7	2	10.0	48	58	15.0	10.0

Screw Specifications:

Plus hexagon-headed screw: M5 x 0.8 x 10

Max. screw tightening torque: 3.23Nm

FEATURES

◆ Endurance with ripple current:85°C,2000hours

◆Used for air conditioner, general-purpose inverter、power supplies

◆ RoHS Compliant
