SMD Aluminum Electrolytic Capacitors ▏105℃ 1,000Hrs ▏Low ESR ▏CAHB
FEATURES
105°C, 1000 hours assured
Low Impedance
Smaller size than VEH
RoHS Compliant
105°C, 1000 hours assured
Low Impedance
Smaller size than VEH
RoHS Compliant
SPECIFICATIONS
| Items | Performance | |||||||||
| Operating Temperature Range | -55 °C~ +105 °C | |||||||||
| Capacitance Tolerance | +20% (at 120Hz, 20°C) | |||||||||
| Leakage Current (at 20°C) | I = 0.01CV or 3 (µ A) whichever is greater (after 2 minutes) Where,
C= rated capacitance in µF. V= rated DC working voltage in V. |
|||||||||
| Dissipation Factor (Tanδ at 120Hz, 20°C) | Rated
Voltage |
6.3 | 10 | 16 | 25 | 35 | 50 | |||
| Tanδ (max) | 0.28 | 0.24 | 0.2 | 0.16 | 0.14 | 0.12 | ||||
|
Low Temperature Characteristics (at 120Hz) |
Impedance ratio shall not exceed the values given in the table below. | |||||||||
| Rated Voltage | 6.3 | 10 | 16 | 25 | 50 | |||||
| Impedance
Ratio |
Z (-25°C)/Z(+20°C) | 4 | 3 | 2 | 2 | 2 | ||||
| Z(-40°C)/Z(+20°C) | 8 | 5 | 4 | 3 | 3 | |||||
|
Load Life Test |
Test Time | 1,000 Hrs | ||||||||
| Capacitance Change | Within +25% of initial value | |||||||||
| Dissipation Factor | Less than 200% of specified value | |||||||||
| Leakage Current | Within specified value | |||||||||
| * The above specifications shall be satisfied when the capacitors are restored to 20°C after the rated voltage applied for 1,000 hrs at 105°C | ||||||||||
| Shelf Life Test | Test Time: 1000 hrs; other items are the same as those for the load lifetest. | |||||||||
|
Ripple Current & Frequency Multipliers |
Freq. (Hz)
VDC(V) |
50, 60 |
120 |
1k |
10k up |
|||||
| 6.3 ~ 35 | 0.64 | 0.8 | 0.93 | 1.0 | ||||||
| Standards | JIS C 5101-1 | |||||||||
DIMENSION, IMPEDANCE & PERMISSIBLE RIPPLE CURRENT
Dimension: φD x L(mm)
Ripple Current mA/rms at 100KHz, 105°C Impedance: at 100KHz, 20ºC
| V.DC
μF Contents |
6.3V (0J) | 10V (1A) | 16V (1C) | 25V (1E) | 35V (1V) | 50V (1H) | |||||||||||||
| φD x L | mA | Imp. | φD x L | mA | Imp. | φD x L | mA | Imp. | φD x L | mA | Imp. | φD x L | mA | Imp. | φD x L | mA | Imp. | ||
| 1.0 | 010 | 4 x 5.3 | 30 | 5.0 | |||||||||||||||
| 2.2 | 2R2 | 4 x 5.3 | 30 | 5.0 | |||||||||||||||
| 3.3 | 3R3 | 4 x 5.3 | 30 | 5.0 | |||||||||||||||
| 4.7 | 4R7 | 4 x 5.3 | 65 | 3.20 | 4 x 5.3 | 65 | 3.20 | 5 x 5.3 | 50 | 3.0 | |||||||||
| 10 | 100 | 4 x 5.3 | 65 | 3.20 | 4 x 5.3 | 65 | 3.20 | 5 x 5.3 | 110 | 1.50 | 5 x 5.3 | 110 | 1.50 | 6.3 x 5.3 | 70 | 2.0 | |||
| 22 | 220 | 4 x 5.3 | 65 | 3.20 | 5 x 5.3 | 110 | 1.50 | 5 x 5.3 | 110 | 1.50 | 6.3 x 5.3 | 170 | 0.85 | 6.3 x 5.3 | 170 | 0.85 | 6.3 x 5.3 | 70 | 2.0 |
| 33 | 330 | 5 x 5.3 | 110 | 1.50 | 5 x 5.3 | 110 | 1.50 | 6.3 x 5.3 | 170 | 0.85 | 6.3 x 5.3 | 170 | 0.85 | 6.3 x 5.3 | 170 | 0.85 | 6.3 x 7.7 | 170 | 1.0 |
| 47 | 470 | 5 x 5.3 | 110 | 1.50 | 6.3 x 5.3 | 170 | 0.85 | 6.3 x 5.3 | 170 | 0.85 | 6.3 x 5.3 | 170 | 0.85 | 6.3 x 7.7 | 255 | 0.50 | |||
| 100 | 101 | 6.3 x 5.3 | 170 | 0.85 | 6.3 x 5.3 | 170 | 0.85 | 6.3 x 5.3 | 170 | 0.85 | 6.3 x 7.7 | 255 | 0.50 | ||||||
| 150 | 151 | 6.3 x 7.7 | 255 | 0.50 | 6.3 x 7.7 | 255 | 0.50 | 6.3 x 7.7 | 255 | 0.50 | |||||||||
| 220 | 221 | 6.3 x 7.7 | 255 | 0.50 | 6.3 x 7.7 | 255 | 0.50 | 6.3 x 7.7 | 255 | 0.50 | |||||||||

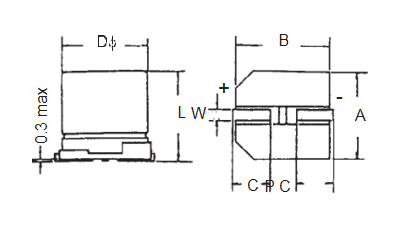

PAD SPACING AND DIAMETER
| φD | L | A | B | C | W | P+0.2 |
| 4 | 5.3 + 0.2 | 4.3 | 4.3 | 2.0 | 0.5 to 0.8 | 1.0 |
| 5 | 5.3 + 0.2 | 5.3 | 5.3 | 2.3 | 0.5 to 0.8 | 1.5 |
| 6.3 | 5.3 + 0.2 | 6.6 | 6.6 | 2.7 | 0.5 to 0.8 | 2.0 |
| 6.3 | 7.7 + 0.3 | 6.6 | 6.6 | 2.7 | 0.5 to 0.8 | 2.0 |
PART NUMBER EXAMPLE
CAHB 220 M 1A TR 050053
FEATURES
◆ 105°C, 1000 hours assured
◆ Low Impedance
◆ Smallersizethan CAHA
◆ RoHS Compliant
