Axial Leads Multilayer Ceramic Capacitor | CCCA

High-density multi-layer construction enabling an expanded range of values. Bodies are insulated with a proprietary flame retardant epoxy coating for superior environmental protection and dielectric strength. Non-standard values, increased voltage ratings, custom marking, military screening, cut & formed leads, etc., are available. Matched sets and networks also available.

FEATURES
◆ Conformal coated, miniature sizes, 0.3pF – 2.2uF
◆ Wide range of capacitance, tolerance, TC, and voltage
◆ C0G (NP0), X7R, Z5U and Y5V temperature coefficients
◆ Popular values available from stock

SPECIFICATIONS

JiNPEI

Type



WVDC1

CAPACITANCE RANGE

L

(Body Length, Max)



D

(Body Diameter, Max)



d (Lead Dia)

C0G (NPO) X7R Z5U/Y5V 2


CCCA05

25

50

100

0.3 – 1000pF

0.3 – 1000pF

0.5 – 820pF

100pF – 0.15uF

100pF- 0.10uF

100pF- 0.01uF

1000pF – 1.0uF

1000pF – 0.47uF

1000pF- 0.068uF

0.150

[3.8]

.100

[2.54]

018 ±.003

[0.45 ±.08]



CCCA10

25

50

100

0.5 – 2700pF

0.5 – 2200pF

0.5 – 1000pF

100pF – 0.22uF

100pF- 0.10uF

100pF- 0.033uF

1000pF – 1.2uF

1000pF – 1.0uF

1000pF- 0.10uF

0.170

[4.32]

.100

[2.54]

.018 ±.003

[0.45 ±.08]



CCCA12

25

50

100

0.5 – 5600pF

0.5 – 4700pF

0.5 – 3300pF

100pF –  1.0uF

100pF- 0.47uF

100pF- 0.10uF

1000pF – 2.2uF

1000pF – 1.0uF

1000pF- 0.10uF

0.200

[5.1]

.118

[3.0]

.018 ± .003

[0.45 ± .08]



DIELECTRIC CHARACTERISTICS (typical)

ITEM COG (NPO) X7R Y5V (Z5U) 2
Cap. Range, E12 values 0.3 pF- 5,600 pF 100 pF – 1uF 1,000 pF – 2.2uF
Capacitance Tolerance <10pF: ±.1pF, .25pF, .5pF (std)

10pF: ±1%, ±2%, ±5%(std),±10%

±5%, ±10% (std),

±20%

±20% (std), +80/- 20%
Operating Temperature Range -55°C to +125°C -55°C to +125°C -30°C to +85°C
Temperature Characteristics 0 ± 30ppm/°C 3 ±15% max over op.temp range +22%/-82%(+22%/-56%)

max over operating temp range

Aging (cap loss/decade hr) negligible 2% 7%
Voltage Coef ( C@ max V) negligible -50% to+10% typ -80% to+20% typ
Dissipation Factor (1KHz) 0.15% (+25°C & +125°C)

1.0VRMS, 1MHz for values<1000pF

2.5% Max., 1VRMS 4.0% Max. 0.5 VRMS
Insulation Resistance 25°C

(MIL-STD-202-METHOD-302)

100G or 1000M -uF

whichever is less

100G or 1000M -uF

whichever is less

10G or 1000M -uF

whichever is less

Dielectric Strength 2.5x rated VDC 2.5x rated VDC 2.5x rated VDC
Life Test (1000 hours) 2x rated voltage @+125°C

C<3% or 0.25pF wig

2x rated voltage at +125°C

C<20%

1.5x rated voltage at +85°C

C<30%

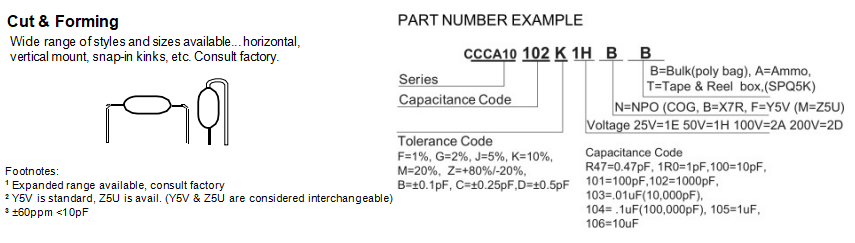

INTRODUCTION
High-density multi-layer construction enabling an expanded
range of values. Bodies are insulated with a proprietary
flame retardant epoxy coating for superior environmental
protection and dielectric strength. Non-standard values,
increased voltage ratings, custom marking, military screening,
cut & formed leads, etc., are available. Matched sets and
networks also available.
