Anti-Solvent Electrolytic Capacitors ▏CACA
FEATURES
105 ℃, Solvent-proof type
Suitable for high reliability products
SPECIFICATIONS
| Item | Performance | ||||||||||
| CACA | CACA | ||||||||||
| Life | At 105°C 1000 Hrs | At 105°C 2000 Hrs | |||||||||
| Operating
Temperature |
-55°C ~ +105°C |
||||||||||
| Capacitance Tolerance | ± 20% (120Hz, 20°C) | ||||||||||
| Leakage Current
(at 20°C) |
I = 0.01CV or 3 ( A) whichever is greater (after 2 minutes)
Where, C = rated capacitance in F. V=rated DC working voltage in V. |
||||||||||
| Dissipaton Factor
Tanδ at 120 Hz, 20°C |
Rated Voltage | 6.3 | 10 | 16 | 25 | 35 | 50 | 63 | |||
| Tanδ (max) | 0.23 | 0.20 | 0.16 | 0.14 | 0.12 | 0.10 | 0.09 | ||||
| When the capacitance exceed 1000 F 0.02 shall be added every 1000 F increase.. | |||||||||||
|
Low Temperature Characteristics (at 120Hz) |
Impedance ratio shall not exceed the values given in the table below | ||||||||||
| Rated Voltage | 6.3 | 10 | 16 | 25 | 35 | 50 | 63 | ||||
|
Impedance Ratio |
Z(-25°C)
/Z(+20°C) |
φD<1 6 | 4 | 3 | 3 | 2 | 2 | 2 | 2 | ||
| φD>1 6 | 5 | 4 | 3 | 2 | 2 | 3 | 3 | ||||
| Z(-55°C)
/Z(+20°C) |
φD<1 6 | 8 | 6 | 4 | 4 | 4 | 3 | 3 | |||
| φD>1 6 | 10 | 8 | 6 | 4 | 3 | 3 | 3 | ||||
|
Load Life Test |
Test Time | 1000hrs / 2000hrs | |||||||||
| Capacitance Change | Within ± 20% | ||||||||||
| Dissipation Factor | Less than 200% of specified value. | ||||||||||
| Leakage Current | Within specified value | ||||||||||
| The above specification shall be satisfied when the capacitors are restored to 20°C after rated voltage applied for 1000/2000 hrs at 105°C. | |||||||||||
|
Shelf Life Test |
Test Time | 1000 Hrs | |||||||||
| Capacitance Change | Within ± 20% of initial value | ||||||||||
| Dissipation Factor | Less than 200% of specified value | ||||||||||
| Leakage Current | Within Specified value | ||||||||||
| The above specifications shall be satisfied when the capacitors are restored to 20°C after exposing them for 1000 hrs at 105°C
without voltage applied. |
|||||||||||
|
Ripple Current & Frequency Multilpiers |
Freq. (Hz)
Cap. (μF) |
60 |
120 |
500 |
1K |
10K up |
|||||
| Under 100 | 0.70 | 1.00 | 1.30 | 1.40 | 1.50 | ||||||
| 100 to 1000 | 0.75 | 1.00 | 1.20 | 1.30 | 1.35 | ||||||
| 1000 andabove | 0.80 | 1.00 | 1.10 | 1.12 | 1.15 | ||||||
| Riple Current &
Temperature Multipliers |
Temperature (°C) | 45 | 70 | 85 | 105 | ||||||
| Multipliers | 1.95 | 1.78 | 1.40 | 1.00 | |||||||
| Standards | Satisfies Characteristic W of JIS C 5141 | ||||||||||

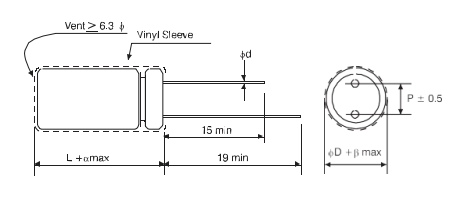

LEAD SPACING AND DIAMETER
| φD | 5 | 6.3 | 8 | 10 | 13 | 16 | 18 | 22 |
| P | 2.0 | 2.5 | 3.5 | 5.0 | 5.0 | 7.5 | 7.5 | 10 |
| φd | 0.5 | 0.6 | 0.8 | 1.0 | ||||
| α | 1.0 | 1.5 | 2.0 | |||||
| β | 0.5 | |||||||
PART NUMBER EXAMPLE
CACA 221 M 1H BK 100 200
DIMENSIONS AND PERMISSABLE RIPPLE CURRENT
Dimension: ΦD×L(mm) Ripple Current: mA/RMS at 120Hz 105°C
|
μF |
VDC
Code |
6.3v(0J) | 10V(1A) | 16V(1C) | 25V(1E) | 35V(1V) | 50V(1H) | 63V(1J) | |||||||
| φDxL | mA | φDxL | mA | φDxL | mA | φDxL | mA | φDxL | mA | φDxL | mA | φDxL | mA | ||
| 0.1 | 0R1 | 5 x 11 | 1.3 | 5 x 11 | 2.1 | ||||||||||
| 0.22 | R22 | 5 x 11 | 2.9 | 5 x 11 | 3.2 | ||||||||||
| 0.33 | R33 | 5 x 11 | 4.3 | 5 x 11 | 5.4 | ||||||||||
| 0.47 | R47 | 5 x 11 | 7.1 | 5 x 11 | 7.1 | ||||||||||
| 1 | 010 | 5 x 11 | 13 | 5 x 11 | 15 | ||||||||||
| 2.2 | 2R2 | 5 x 11 | 20 | 5 x 11 | 26 | ||||||||||
| 3.3 | 3R3 | 5 x 11 | 30 | 5 x 11 | 31 | ||||||||||
| 4.7 | 4R7 | 5 x 11 | 33 | 5 x 11 | 36 | ||||||||||
| 10 | 100 | 5 x 11 | 36 | 5 x 11 | 40 | 5 x 11 | 45 | 5 x 11 | 50 | 5 x 11 | 54 | ||||
| 22 | 220 | 5 x 11 | 58 | 5 x 11 | 68 | 5 x 11 | 71 | 5 x 11 | 78 | 6.3 x 11 | 96 | ||||
|
33 |
330 |
5 x 11 |
76 |
5 x 11 |
78 |
6.3 x 11
5 x 11 |
90
85 |
6.3 x 11
5 x 11 |
96
90 |
8 x 11.5
6.3 x 11 |
141
100 |
||||
|
47 |
470 |
5 x 11 |
76 |
5 x 11 |
90 |
5 x 11 |
97 |
6.3 x 11
5 x 11 |
105
90 |
8 x 11.5
6.3 x 11 |
130
117 |
8 x 11.5
6.3 x 11 |
151
129 |
||
|
100 |
101 |
5 x 11 |
103 |
5 x 11 |
111 |
6.3 x 11
5 x 11 |
133
110 |
6.3 x 11 |
142 |
8 x 11.5
6.3 x 11 |
170
150 |
8 x 11.5 |
188 |
10 x 12.5 |
235 |
|
220 |
221 |
6.3 x 11
5 x 11 |
160
140 |
6.3 x 11
5 x 11 |
175
150 |
8 x 11.5
6.3 x 11 |
215
180 |
8 x 11.5 |
236 |
10 x 12.5
8 x 11.5 |
300
270 |
10 x 20
10 x 16 |
355
335 |
10 x 20
10 x 16 |
400
360 |
|
330 |
331 |
8 x 11.5
6.3 x 11 |
219
190 |
8 x 11.5
6.3 x 11 |
245
200 |
8 x 11.5 | 260 | 10 x 12.5
8 x 11.5 |
335
330 |
10 x 16
10 x 12.5 |
400
350 |
10 x 20
10 x 16 |
460
410 |
13 x 20
10 x 20 |
520
490 |
|
470 |
471 |
8 x 11.5
6.3 x 11 |
261
230 |
8 x 11.5
6.3 x 11 |
290
250 |
10 x 12.5
8 x 11.5 |
370
310 |
10 x 16
10 x 12.5 |
440
380 |
10 x 20
10 x 16 |
520
460 |
13 x 20
10 x 20 |
610
530 |
13 x 25
13 x 20 |
720
665 |
|
1000 |
102 |
10 x 12.5
8 x 11.5 |
455
380 |
10 x 16
10 x 12.5 |
550
460 |
10 x 20
10 x 16 |
640
560 |
13 x 20
10 x 20 |
770
680 |
13 x 25
13 x 20 |
920
830 |
16 x 25
13 x 25 |
1080
980 |
16 x 31.5
16 x 25 |
1260
1190 |
|
2200 |
222 |
10 x 20 |
750 |
13 x 20
10 x 20 |
860
760 |
13 x 25
13 x 20 |
1000
920 |
16 x 25
13 x 25 |
1170
1090 |
16 x 31.5
16 x 25 |
1340
1260 |
18 x 35.5
16 x 35.5 |
1530
1470 |
||
|
3300 |
332 |
13 x 20
10 x 20 |
920
840 |
13 x 20 |
1100 |
16 x 25
13 x 25 |
1300
1170 |
16 x 31.5
16 x 25 |
1460
1400 |
18 x 35.5
16 x 35.5 |
1650
1610 |
22 x 40
18 x 35.5 |
1707
1650 |
||
|
4700 |
472 |
16 x 25
16 x 20 |
1330
1090 |
16 x 25
13 x 25 |
1400
1260 |
16 x 31.5
16 x 25 |
1600
1480 |
18 x 35.5
16 x 31.5 |
1780
1710 |
18 x 40
18 x 35.5 |
1900
1875 |
||||
PART NUMBER EXAMPLE
CACA 221 M 1H BK 100 200
FEATURES
◆ 105 ℃, Solvent-proof type
◆ Suitable for high reliability products
◆ Rohs Compliant
