Wide Temperature Coin Super Capacitors ▏EDLC ▏CEAC
Features
•Wide temperature range
•Quick charge & discharge
•RoHS compliant
•Computer & peripherals
•DSL modems & routers
•Automatic meter reader
•Wide temperature range
•Quick charge & discharge
•RoHS compliant
•Computer & peripherals
•DSL modems & routers
•Automatic meter reader
|
Items |
Characteristics |
|||||||||
| Rated Voltage |
5.5V |
|||||||||
|
Operating Temperature |
-40 ~+85℃ |
|||||||||
| Surge Voltage |
6.0V |
|||||||||
| Capacitance Range |
0.1~1.0 F |
|||||||||
|
Capacitance Tolerance (25°C) |
-20~+80% |
|||||||||
|
Temperature Characteristics |
||||||||||
| The specifications shall be met at category temperature rangefrom -45℃ to 85℃ |
Capacitance |
Within 30% of the value at 25℃ | ||||||||
|
ESR |
Less than 2 times of the initial specified value | |||||||||
|
High Temperature Loaded |
|
|||||||||
|
High Temperature Storage |
The specifications shall be met after storage at 85 ℃ for 1000 hours |
|||||||||

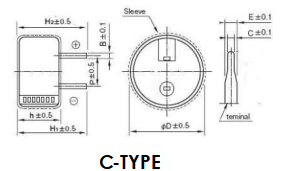

Dimensions
Standard Ratings for CEAC Series
| UR
(Surge Voltage) Code |
Rated Cap. 25℃, |
ESRAC (1KHz) |
Leakage Current (72hrs) |
Size | P/N | |||||||
| D | h | P |
H1 |
H2 |
B | C | E | |||||
| (v) | (F) | (Ω) | (mA) | (mm) | – | |||||||
| 5.5 | 0.1 | 75 | 0.003 | 13.5 | 9.0 | 5.0 | 14.5 | 15.5 | 0.4 | 0.8 | 1.2 | CEAC5R5104ZC135050 |
| (6) | 0.22 | 75 | 0.003 | 13.5 | 9.0 | 5.0 | 14.5 | 15.5 | 0.4 | 0.8 | 1.2 | CEAC5R5224ZC135050 |
| 5R5 | 0.33 | 50 | 0.005 | 13.5 | 9.0 | 5.0 | 14.5 | 15.5 | 0.4 | 0.8 | 1.2 | CEAC5R5334ZC135050 |
|
C-TYPE |
0.68 | 30 | 0.008 | 20.5 | 9.5 | 5.0 | 14.5 | 15.5 | 0.4 | 0.8 | 1.2 | CEAC5R5684ZC205050 |
| 1.0 | 30 | 0.010 | 20.5 | 9.5 | 5.0 | 14.5 | 15.5 | 0.4 | 0.8 | 1.2 | CEAC5R5105ZC205050 | |
FEATURES
⚫ Wide temperature range
⚫ Quick charge & discharge
⚫ Computer &peripherals
⚫ DSL modems & routers
⚫ Automatic meter reader
⚫ Rohs Compliant
