Super MINI Electrolytic Capacitors ▏85℃ 1,000~2,000Hrs ▏CAZD
FEATURES
85°C, 2000 hours assured, standard miniature type with 7mm height for compact circuits.
85°C, 2000 hours assured, standard miniature type with 7mm height for compact circuits.
SPECIFICATIONS
| Item | Performance | |||||||||||
| SE | SEA | |||||||||||
| Life | At 85°C 1000 Hrs | At 85°C 2000 Hrs | ||||||||||
| Operating Temp. | -40°C ~ +85°C Range | |||||||||||
| Capacitance Tolerance | ± 20% (120Hz, 20°C) | |||||||||||
| Leakage Current
(at 20°C) |
I = 0.01CV or 3 ( A) whichever is greater (after 2 minutes)
Where, C = rated capacitance in F. V=rated DC working voltage in V. |
|||||||||||
| Dissipaton Factor | Rated Voltage | 4 | 6.3 | 10 | 16 | 25 | 35 | 50 | 63 | |||
| Tan at 120 Hz,20°C | Tan (max) | 0.35 | 0.23 | 0.20 | 0.16 | 0.14 | 0.12 | 0.10 | 0.10 | |||
|
Low Temperature Characteristics (at 120Hz) |
Impedance ratio shall not exceed the values given in the table below | |||||||||||
| Rated Voltage | 4 | 6.3 | 10 | 16 | 25 | 35 | 50 | 63 | ||||
| Impedance Ratio | Z(-25°C) /Z(+20°C) | 7 | 4 | 3 | 3 | 2 | 2 | 2 | 2 | |||
| Z(-40°C) /Z(+20°C) | 14 | 10 | 8 | 6 | 4 | 4 | 4 | 4 | ||||
| Load Life Test at 20°C (after rated voltage is applied at 85°C for
1000/2000 hours) |
Test Time | 1000 / 200 Hrs | Shelf Life Test at 20°C (after exposure to 85°C for 1000 hours with no
voltage) |
Test Time | 1000 Hrs | |||||||
| Capacitance Change | ± 20% | Capacitance Change | ± 20% | |||||||||
| Dissipation Factor | Less than 200% of specified value | Dissipation Factor | Less than 200% of specified value | |||||||||
| Leakage Current | Within specified value | Leakage Current | Within specified value | |||||||||
| Ripple Current & | 60(50) | 120 | 500 | 1K | 10K up | |||||||
| Frequency Multilpliers | Under 33 | 0.70 | 1.00 | 1.20 | 1.30 | 1.45 | ||||||
| 47 to 220 | 0.80 | 1.00 | 1.10 | 1.15 | 1.20 | |||||||
| Riple Current &
Temperature Multipliers |
Temperature (°C) | Under 50 | 70 | 85 | ||||||||
| Multipliers | 1.75 | 1.58 | 1.00 | |||||||||
| Standards | Satisfies Characteristic W of JIS C 5141 | |||||||||||
DIMENSIONS & PERMISSABLE RIPPLE CURRENT
Dimension: D×L(mm); Ripple Current: mA/RMS at 120Hz 85°C
| VDC
F Contents |
4V(0G) | 6.3V(0J) | 10V(1A) | 16V(1C) | 25V(1E) | 35V(1V) | 50V(1H) | 63V(1J) | |||||||||
| DXL | mA | DXL | mA | DXL | mA | DXL | mA | DXL | mA | DXL | mA | DXL | mA | DXL | mA | ||
| 0.1 | 0R1 | 4 x 7 | 2 | 4 x 7 | 2 | ||||||||||||
| 0.22 | R22 | 4 x 7 | 3 | 4 x 7 | 3 | ||||||||||||
| 0.33 | R33 | 4 x 7 | 4 | 4 x 7 | 4.4 | ||||||||||||
| 0.47 | R47 | 4 x 7 | 5 | 4 x 7 | 7.9 | ||||||||||||
| 1 | 10 | 4 x 7 | 10 | 4 x 7 | 11 | ||||||||||||
| 2.2 | 2R2 | 4 x 7 | 15 | 4 x 7 | 17 | ||||||||||||
| 3.3 | 3R3 | 4 x 7 | 18 | 4 x 7 | 21 | ||||||||||||
| 4.7 | 4R7 | 4 x 7 | 22 | 5 x 7
4 x 7 |
23
22 |
5 x 7 | 26 | ||||||||||
| 10 | 100 | 4 x 7 | 25 | 4 x 7 | 26 | 5 x 7
4 x 7 |
30
26 |
6.3 x 7
5 x 7 |
34
31 |
6.3 x 7 | 40 | ||||||
| 22 | 220 | 4 x 7 | 31 | 4 x 7 | 32 | 5 x 7
4 x 7 |
39
33 |
5 x 7
4 x 7 |
41
34 |
6.3 x 7 | 47 | 6.3 x 7 | 53 | 8 x 7 | 70 | ||
| 33 | 330 | 4 x 7 | 32 | 4 x 7 | 32 | 4 x 7 | 35 | 5 x 7 | 43 | 6.3 x 7 | 53 | 8 x 7
6.3 x 7 |
71
60 |
8 x 7
6.3 x 7 |
76
65 |
||
| 47 | 470 | 4 x 7 | 38 | 4 x 7 | 38 | 5 x 7
4 x 7 |
47
39 |
6.3 x 7
5 x 7 |
59
49 |
6.3 x 7 | 65 | 8 x 7 | 83 | 8 x 7 | 85 | ||
| 100 | 101 | 5 x 7 | 61 | 6.3 x 7
5 x 7 |
75
63 |
6.3 x 7 | 80 | 6.3 x 7 | 90 | 8 x 7 | 125 | ||||||
| 220 | 221 | 6.3 x 7 | 90 | 6.3 x 7 | 99 | 8 x 7 | 140 | 8 x 7 | 146 | ||||||||
| 330 | 331 | 8 x 7 | 129 | 8 x 7 | 156 | ||||||||||||
| 470 | 471 | 8 x 7 | 154 | ||||||||||||||

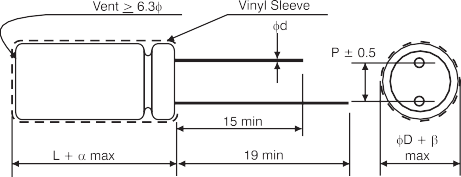

LEAD SPACING AND DIAMETER
| D | 4 | 5 | 6.3 | 8 |
| P | 1.5 | 2.0 | 2.5 | 3.5 |
| d | 0.45 | 0.5 | ||
| 1.0 | ||||
| 0.5 | ||||
PART NUMBER EXAMPLE
CAZD 0R1 M 1H SA 040 070
FEATURES
◆ 85°C, 1000 ~2000hours assured, 5mm height with low leakage.
◆ Use in very compact high temperature industrial equipment.
◆ RoHS Compliance
