Standard Radial Leads Super Capacitors ▏EDLC ▏CECD
Features
•Low temperature
•Wider temperature range
•RoHS compliant
•Consumer electronic
•Pulse power
•Hold-up power
•Low temperature
•Wider temperature range
•RoHS compliant
•Consumer electronic
•Pulse power
•Hold-up power
| Items | Characteristics | ||
| Rated Voltage | 3.8V~2.5V | ||
| Operating Temperature Range | -25 ~+60℃ | ||
| Surge Voltage | 4.2V | ||
| Capacitance Range | 30~220 F | ||
| Capacitance Tolerance (25°C) | -20~+20% | ||
|
Temperature Characteristics |
The specifications shall be met at category temperature range from
-25℃ to 60℃ |
||
|
High Temperature Loaded |
The specifications shall be met after rated voltage applied at
60℃ for 1000 hours |
||
|
High Temperature Storage |
The specifications shall be met after storage at 60℃ for 1000 hours | ||
|
Cycle Life |
The specifications shall be met after 250,000 cycles at 25 ℃ , cycle of charge/discharge from 3.8~2.5V. | ||

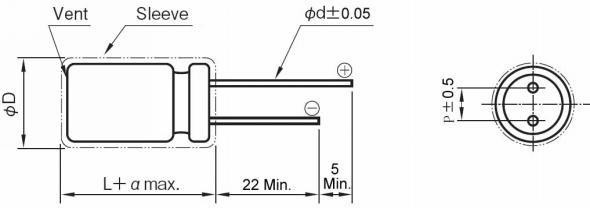

Dimensions
| ΦD | 10 | 12.5 | 16 |
| p | 5.0 | 5.0 | 7.5 |
| Φd | 0.6 | 0.6 | 0.8 |
| α | 2.0 | 2.0 | 2.0 |
Standard Ratings for CECD Series
| UR
(Surge Voltage) Code |
Rate d Cap. 25℃ , |
Impedance |
Rated . Current |
Self-discharge Current |
Size ΦDxL |
P/N |
|
|
ESRDC |
ESRAC
（1KHz） |
||||||
| (v) | (F) | (mΩ) | (mΩ) | (A) | (μA) | (mm) | |
| 3.8 | 30 | 550 | 250 | 0.15 | 1.5 | 10*16 | CECD3R8306M100016E |
| 70 | 250 | 100 | 0.35 | 2.5 | 10*25 | CECD3R8706M100025E | |
| 120 | 200 | 80 | 0.6 | 3.5 | 12.5*25 | CECD3R8127M125025E | |
| 3R8 | |||||||
| 220 | 100 | 60 | 1.1 | 5.5 | 16*25 | CECD3R8227M160025E | |
