Stacked Metallized Polyester Film Capacitor | CDFB

FEATURES

Reference Standard:GB7332(IEC 60384-2)

Climatic Category:55/100/56

Rated Temperature:85 ℃

OperatingTemperature Range:

(+85℃ to +105℃: decreasing factor 1.25% per ℃ for V R (DC))

Rated Voltage: 63V 1J, 100V 2A, 250V 2E, 400V 2G, 630V 2J,

Capacitance Range:0.0010µF ~ 1.5µF

CapacitanceTolerance:±5%(J), ±10%(K), ±20%(M)

PART  NUMBER EXAMPLE

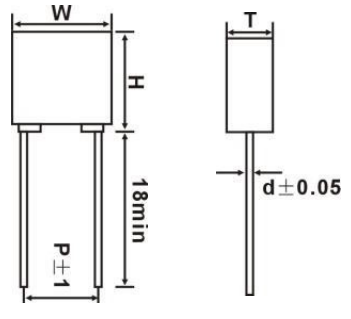

Outline Drawing

INTRODUCTION
High dv / dt ability and small size due to stacked construction
