Snap-In Electrolytic Capacitors ▏85℃ 3,000Hrs ▏CAIA
Has a snap-in terminal which can solder directly to a PCB
Suitable for electronic equipment with medium-high voltage circuits
Printed circuit board terminal snap-in type and lug terminal type available
SPECIFICATIONS
| Items | Performance | |||||||||||||||||
| Operating Temperature Range | -40 °C ~ +85 °C | |||||||||||||||||
| Capacitance Tolerance | +20% (at 120Hz, 20 °C) | |||||||||||||||||
| Leakage Current (at 20 °C) | I = 0.02CV or1.5 mA whichever is smaller (after 5 minutes)
Where, C= rated capacitance in µF.V= rated DC working voltage in V. |
|||||||||||||||||
| Dissipation Factor
(Tanδ at 120Hz, 20°C) |
Rated Voltage | 16 | 25 | 35 | 50 | 63 | 80 | 100 | 160 | 200 | 250 | 350 | 400 | 420 | 450 | 500 | ||
| Tanδ (max) | 0.50 | 0.45 | 0.40 | 0.35 | 0.30 | 0.25 | 0.20 | 0.15 | 0.15 | 0.15 | 0.15 | 0.15 | 0.15 | 0.15 | 0.15 | |||
|
Low Temperature Characteristics (at 120Hz) |
Impedance ratio shall not exceed the values given in the table below. | |||||||||||||||||
| Rated Voltage | 16 | 25 | 35 | 50 | 63 | 100 | 160 | 200 | 250 | 350 | 400 | 420 | 450 | 500 | ||||
| Impedance
Ratio |
Z (-25 °C)/Z(+20 °C) | 4 | 3 | 3 | 2 | 2 | 4 | 4 | 4 | 4 | 8 | 8 | 8 | 8 | 8 | |||
| Z(-40 °C)/Z(+20 °C) | 15 | 10 | 8 | 6 | 5 | 4 | 8 | 10 | 10 | 16 | 18 | 18 | 20 | 20 | ||||
|
Load Life Test |
Test Time | 3,000 Hrs |
* The specifications shall be satisfied when the capacitors are restored to 20 °C after the rated voltage applied for 3,000 hrs at 85 °C |
|||||||||||||||
| Capacitance Change | < + 20% | |||||||||||||||||
| Dissipation Factor | Less than 200% of specified value | |||||||||||||||||
| Leakage Current | Within specified value | |||||||||||||||||
|
Shelf Life Test |
Test Time | 1,000 Hrs |
* The specification shall be staisfied when the capacitors are restored to 20 °C after exposing them for 1,000 hrs at 85 °C |
|||||||||||||||
| Capacitance Change | < + 20% | |||||||||||||||||
| Dissipation Factor | Less than 200% of specified value | |||||||||||||||||
| Leakage Current | Within specified value | |||||||||||||||||
|
Ripple Current & Frequency Multipliers |
Freq. |
60 |
120 |
500 |
1k |
10k up |
||||||||||||
| (Hz)
W. V. (V) |
||||||||||||||||||
| Under 100 | 0.92 | 1.0 | 1.13 | 1.19 | 1.20 | |||||||||||||
| 160 and Up | 0.81 | 1.0 | 1.32 | 1.45 | 1.50 | |||||||||||||
| 350 and Up | 0.77 | 1.0 | 1.30 | 1.41 | 1.43 | |||||||||||||
| Ripple Current &
Temperature Multipliers |
Temperature
( °C) |
40 | 55 | 70 | 85 | |||||||||||||
| Multiplier | 2.1 | 1.8 | 1.5 | 1.0 | ||||||||||||||
| Other Standards | Satisfies Characteristic W fo JIS C 5141 | |||||||||||||||||

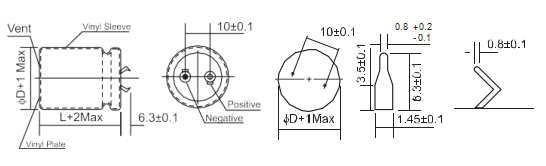

SNAP-IN TERMINAL TYPE (2 TERMINAL)

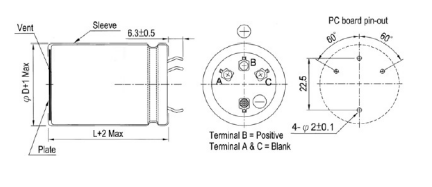

SNAP-IN TERMINAL (4 TERMINAL)
PART NUMBER EXAMPLE
FEATURES
◆Snap-In Terminal Types (2 Terminal & 4 Treminal)
◆ Has a snap-in terminal which can solder directly to a PCB
◆ Suitable for electronic equipment with medium-high voltage circuits
◆ Printed circuit board terminal snap-in type and lug terminal type available
