Snap-In Electrolytic Capacitors ▏105℃ 3,000Hrs ▏CAVB

FEATURES
Has a snap-in terminal which can solder to PCB directly and need not fixture to save processing time.
Suitable for electronic equipment with medium-high voltage circuits. Printed circuit board terminal snap-in type and lug terminal type available.
3,000 Hour Life

Datasheet-For-Snap-In-Electrolytic-Capacitor-▏105℃-3000Hrs-▏CAVB.pdf (1024 downloads)

SPECIFICATIONS

Item	Performance
Operating Temp. Range	-40°C ~ +105°C
Capacitance Tolerance	±20% (at 120Hz, 20°C)
Leakage Current (at 20°C)	I=0.02CV or 1.5mA whichever is smaller (after 5 minutes) Where, C=rated capacitance in F. V=rated DC working voltage.
Dissipation Factor (Tan at 120Hz, 20°C)	Rated Voltage		16	25		35	50		63		100		160		200		250		350		400		450
	Tan (max)		0.40	0.30		0.25	0.20		0.15		0.10*		0.15		0.10*		0.10*		0.15		0.15		0.15
	*0.15 for D = 35mm
Low Temperature Characteristics (at 120Hz)	Impedance ratio shall not exceed the values given in the table below.
	Rated Voltage						16	25		35		50	63	100		160		200	250	350		400		450
	Impedance Ratio	Z(-25°C) / Z(+20°C)					4	3		3		2	2	2		4		4	4	4		8		8
		Z(-40°C) / Z(+20°C)					15	10		8		6	6	5		4		8	10	16		18		20
Load Life Test	Test Time		3000 hours
	Capacitance Change		Within ±20% of initial value
	Dissipation Factor		Less than 200% of specified value
	Leakage Current		Within specified value
	The above specifications shall be satisfied when the capacitors are restored to 20°C after the rated voltage applied for 3000 hrs at 105°C
Shelf Life Test	Test Time		1000 hours
	Capacitance Change		Within ±20% of initial value
	Dissipation Factor		Less than 150% of specified value
	Leakage Current		Within specified value
	The above specifications shall be satisfied when the capacitors are restored to 20°C after exposing them for 1000 hrs at 105°C without voltage applied.
Ripple Current & Frequency Multipliers	WV (V) Freq (Hz)		50/60		120		300			1K			10K up
	Multiplier		0.8		1.0		1.1			1.3			1.4
Ripple Current & Temperature Multipliers	Temperature (°C)		40	60		70	85		105
	Multiplier		2.5	2.2		2.0	1.8		1.0
Standards	Satisfies Characteristics W of JIS C 5141

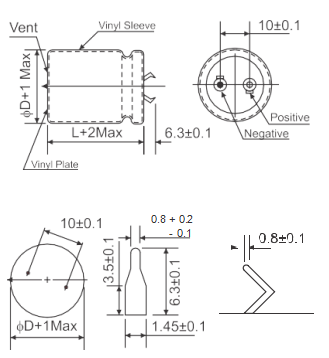

SNAP-IN TERMINAL TYPE

PART NUMBER EXAMPLE

FEATURES
◆ Has a snap-in terminal which can solder to PCB directly and need not fixture to save processing time.

◆ Suitable for electronic equipment with medium-high voltage circuits. Printed circuit board terminal snap-in type and lug terminal type available.

◆ 3,000 Hour Life
