SMD Organic Conductive Polymer Electrolytic Capacitors ▏High Ripple ▏CAYF
FEATURES
•105°C, 2,000 hoursassured.
•Ultra Low ESRwith large permissible ripple current
•RoHSCompliance
•105°C, 2,000 hoursassured.
•Ultra Low ESRwith large permissible ripple current
•RoHSCompliance
DIMENSION & PERMISSIBLE RIPPLE CURRENT
| W.V. (V) | Capacitance
(µF) |
Size
ö DxL(mm) |
Tan
(120Hz, 20°C) |
L.C.
(µA) |
E.S.R.
(m¿/at 100k ~ 300k Hz, 20°C MAX) |
Rated R.C.
(mA/rms at 100kHz, 105°C) |
||
| 1,500 | 8 | x | 12 | 0.15 | 750 | 12 | 5,150 | |
| 2.5V (0E) | 1,500 | 10 | x | 13 | 0.15 | 750 | 7 | 7,200 |
| 2,700 | 10 | x | 13 | 0.15 | 1,350 | 11 | 5,600 | |
| 1,200 | 8 | x | 12 | 0.15 | 960 | 12 | 4,700 | |
| 4V (0G) | 1,200 | 10 | x | 13 | 0.15 | 960 | 7 | 7,200 |
| 2,200 | 10 | x | 13 | 0.15 | 1,760 | 11 | 7,200 | |
| 820 | 8 | x | 12 | 0.15 | 1,033 | 13 | 4,700 | |
| 6.3V (0J) | 820 | 10 | x | 13 | 0.15 | 1,890 | 7 | 5,600 |
| 1,500 | 10 | x | 13 | 0.15 | 1,890 | 12 | 5,560 | |

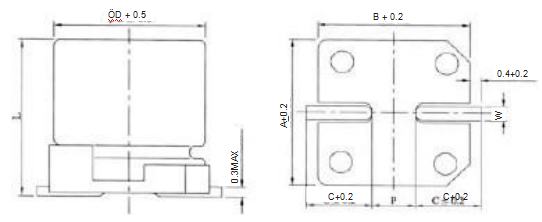

PAD SPACING AND DIAMETER
| D | L | A | B | C | W | P+0.2 |
| 8 | 11.8 + 0.5 | 8.4 | 8.4 | 3.0 | 0.7 to 1.1 | 3.1 |
| 10 | 12.7 + 0.5 | 10.4 | 10.4 | 3.3 | 0.7 to 1.1 | 4.7 |
