FEATURES

●Use non over case stacked technic. Small size.
●Stable performance. Good temperature and voltage characteristic.Time reliability and showerproof.
●High reliability
●Non-piezoelectric effect, non-polar,non-nonlinear distortion
●Low ESR, Low Noise Level
●Strong ability of anti-Pulse

SMD-Metallized-PEN-Film-Capacitor-CDGA.pdf (862 downloads)

FEATURES

●Use non over case stacked technic. Small size.
●Stable performance. Good temperature and voltage characteristic.Time reliability and showerproof.
●High reliability
●Non-piezoelectric effect, non-polar,non-nonlinear distortion
●Low ESR, Low Noise Level
●Strong ability of anti-Pulse

USE

●Telecommunications, base stations,distributor
●Automotive (engine control systems,
●security systems, car radios, navigation
●systems, air-conditioning)
●Lighting (electronic ballast)
●DC/DC switch
●Electrical appliance (LCD,PDP TV)

SPECIFICATIONS

Standard	IEC60384-19
Enviroment	55/125/56
Rated temperature	105^
Temperature	55t〜125t(+105t to + 125^:decreasing factor 1.25% pert for VJDC)
Rated Voltage	50/63V、100V、250V、400V、630V
Capacitance	0.001pF~12pF
Tolerance	±5%(J), ±10%(K),±20%(M)
Voltage	1.40UJ5S)
DF	sS0.008(1KHz)
InsulationResistance	>1000MQ, Cr 0.33uF Ur< 100 charging voltage 10V
InsulationResistance	2400s, Cr>0.33uF Ur浏00 charging voltage 100V(20t 1mini)
Max. speed of pulse up.	100

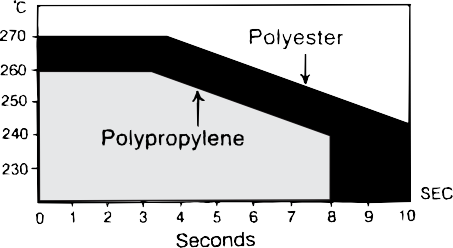

Solder	resolder

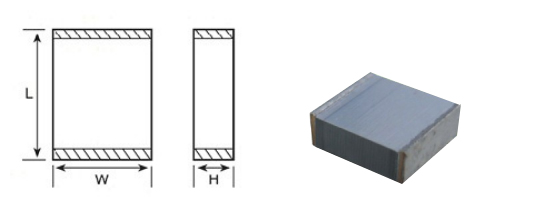

PATTRENⅠ

Cap （ μF）	Size	50 1H / 6 .H	3VDC 1J Tape Code	Size	100VDC .H	2A Tape Code	Size	250VDC .H	2E Tape Code	Size	400VDC .H	2G Tape Code	Size	630VDC .H	2J Tape Code
0.001	1812	1.4	a	1812	1.4	a	1812	1.4	a	1812	1.4	a	2220	1.4	a
0.0012	1812	1.4	a	1812	1.4	a	1812	1.4	a	1812	1.4	a	2220	1.4	a
0.0015	1812	1.4	a	1812	1.4	a	1812	1.4	a	1812	1.4	a	2220	1.4	a
0.0018	1812	1.4	a	1812	1.4	a	1812	1.4	a	1812	1.4	a	2220	1.4	a
0.0022	1812	1.4	a	1812	1.4	a	1812	1.4	a	1812	1.4	a	2220	1.4	a
0.0027	1812	1.4	a	1812	1.4	a	1812	1.4	a	1812	1.4	a	2220	1.4	a
0.0033	1812	1.4	a	1812	1.4	a	1812	1.4	a	1812	1.4	a	2220	1.4	a
0.0039	1812	1.4	a	1812	1.4	a	1812	1.4	a	1812	1.4	a	2220	1.4	a
0.0047	1812	1.4	a	1812	1.4	a	1812	1.4	a	1812	1.4	a	2220	1.4	a
0.0056	1812	1.4	a	1812	1.4	a	1812	1.4	a	1812	1.4	a	2220	1.4	a
0.0068	1812	1.4	a	1812	1.4	a	1812	1.4	a	1812	1.4	a	2220	1.4	a
0.0082	1812	1.4	a	1812	1.4	a	1812	1.4	a	1812	1.4	a	2220	1.8	a
0.010	1812	1.4	a	1812	1.4	a	1812	1.4	a	1812	2.0	a	2220	2.0	a
0.012	1812	1.4	a	1812	1.4	a	1812	1.4	a	1812	2.0	b	2220	2.4	b
0.015	1812	1.4	a	1812	1.4	a	1812	1.4	a	1812	1.4	b	2220	3.6	c
0.018	1812	1.4	a	1812	1.4	a	2220	1.4	a	1812	1.4	a	2220	4.0	c
0.022	1812	1.4	a	1812	1.4	a	2220	1.8	a	2220	2.0	a	2824	2.8	a
0.027	1812	1.4	a	1812	1.4	a	2220	2.0	a	2220	2.4	a	2824	3.2	a
0.033	1812	1.4	a	1812	1.4	a	2220	1.4	a	2220	2.8	a	2824	4.0	b
0.039	1812	1.8	b	1812	1.8	b	2220	1.4	a	2220	3.2	b	2824	4.8	c
0.047	1812	2.0	b	1812	2.0	b	2220	1.8	a	2220	3.6	b	4030	2.8	a
0.056	1812	1.4	a	1812	1.4	a	2220	1.8	a	2824	2.8	c	4030	3.6	b

0.068	1812	1.4	a	1812	1.4	a	2220	2.4	a	2824	3.2	a	4030	4.0	b
0.082	1812	1.4	a	1812	1.4	a	2824	1.8	a	2824	4.0	b	4030	4.8	c
0.10	1812	2.0	b	1812	1.4	b	2824	2.0	a	2824	4.8	c	5040	3.6	b
0.12	1812	1.4	a	2220	2.0	a	2824	2.4	a	4030	2.8	a	5040	4.0	b
0.15	1812	1.4	a	2220	1.4	a	2824	3.2	a	4030	3.6	b	5040	5.2	c
0.18	1812	2.0	b	2220	1.4	a	4030	2.0	a	4030	4.4	c	6054	3.6	a
0.22	1812	2.0	b	2220	1.4	a	4030	2.4	a	5040	3.2	a	6054	4.4	b
0.27	2220	1.4	a	2220	1.8	a	4030	2.8	a	5040	4.0	b	6054	5.2	c
0.33	2220	1.4	a	2220	2.4	b	4030	3.6	b	5040	4.8	c
0.39	2220	1.8	a	2824	2.8	a	5040				4.6	a
0.47	2220	1.8	a	2824	2.0	a	5040	2.8	a	6054	4.0	b
0.56	2220	2.4	a	2824	2.4	a	5040	3.6	b	6054	4.8	c
0.68	2220	2.8	b	2824	2.8	a	6054	2.4	a
0.82	2824	2.0	a	4030	3.6	a	6054	3.2	a
1.0	2824	2.4	a	4030	2.4	a	6054	3.6	a
1.2	2824	3.2	a	5040	2.8	a
1.5	5040	2.4	a	5040	2.4	a
1.8	5040	2.8	a	5040	2.4	a
2.2	5040	3.2	a	5040	3.2	a
2.7	5040	4.0	b	6054	2.8	a
3.3	6054	3.2	a	6054	3.2	a
3.9	6054	3.6	a	6054	3.6	a
4.7	6054	4.4	b	6054	4.4	b

PATTRENⅡ

Cap （ μF）	Size	50 1H/63VDC 1J .H Tape Code		Size	100VDC .H	2A Tape Code	Size	250VDC .H	2E Tape Code
0.001	1206	1.1	a	1206	1.1	a	1206	1.1	a
0.0012	1206	1.1	a	1206	1.1	a	1206	1.1	a
0.0015	1206	1.1	a	1206	1.1	a	1206	1.1	a
0.0018	1206	1.1	a	1206	1.1	a	1206	1.1	a
0.0022	1206	1.1	a	1206	1.1	a	1206	1.1	a
0.0027	1206	1.1	a	1206	1.1	a	1206	1.1	a
0.0033	1206	1.1	a	1206	1.1	a	1206	1.1	a
0.0039	1206	1.1	a	1206	1.1	a	1206	1.5	b
0.0047	1206	1.1	a	1206	1.1	a	1206	1.5	b
0.0056	1206	1.1	a	1206	1.1	a	1210	1.5	b
0.0068	1206	1.1	a	1206	1.1	a	1210	1.5	b
0.0082	1206	1.1	a	1206	1.1	a	1210	1.5	b
0.010	1206	1.1	a	1206	1.1	a	1210	2.1	c
0.012	1206	1.1	a	1206	1.1	a	1210	2.2	c
0.015	1206	1.1	a	1206	1.1	a	*	*	*
0.018	1206	1.1	a	1210	1.1	a	1812	1.4	a
0.022	1206	1.1	a	1210	1.1	a	1812	1.8	b
0.027	1206	1.1	a	1210	1.5	b	1812	2.0	b
0.033	1206	1.5	b	1210	1.5	b	1812	2.4	b
0.039	1210	2.1	c	1210	2.1	c	*	*	*
0.047	1210	2.1	c	1210	2.1	c	*	*	*
0.056	1210	1.5	b	*	*	*	*	*	*
0.068	1210	1.5	b	*	*	*	*	*	*
0.082	1210	2.1	c	*	*	*	2220	2.8	b
0.10	1210	2.1	c	*	*	*	2220	3.2	b
0.12	*	*	*	1812	2.4	b	2220	4.0	c
0.15	*	*	*	*	*	*	*	*	*
0.18	*	*	*	*	*	*	2824	3.6	b
0.22	*	*	*	*	*	*	2824	4.6	b
0.27	*	*	*	*	*	*	2824	5.2	c
0.33	*	*	*	*	*	*	*	*	*
0.39	*	*	*	2220	3.2	b	4030	4.0	b
0.47	*	*	*	2220	4.0	c	4030	4.8	c
0.56	*	*	*	2220	4.4	c	4030	5.6	c
0.68	*	*	*	*	*	*	5040	4.0	b
0.82	2220	3.2	b	2824	4.0	c	5040	4.8	c
1.0	2220	4.0	c	2824	5.2	c	*	*	*
1.2	*	*	*	4030	3.2	a	6054	4.4	b
1.5	2824	3.6	b	4030	4.0	b	6054	5.2	c
1.8	2824	4.4	c	4030	4.8	c
2.2	2824	5.2	c	4030	5.6	c
2.7	4030	3.6	b	5040	4.0	b
3.3	4030	4.4	c	5040	5.0	c
3.9	4030	4.8	c	5040	5.6	c
4.7	5040	3.6	b	*	*	*
5.6	5040	4.0	b	6054	5.0	c
6.8	5040	5.0	c
8.2	6054	3.6	a
10.0	6054	4.4	b
12	6054	5.2	c

INTRODUCTION
◆Use non over case stacked technic. Small size.
◆Stable performance. Good temperature and voltage characteristic.Time reliability and showerproof.
◆High reliability
◆Non-piezoelectric effect, non-polar,non-nonlinear distortion
◆Low ESR, Low Noise Level
◆Strong ability of anti-Pulse
