SMD Aluminum Electrolytic Capacitors ▏85℃ ▏Extended Range ▏CAGB

FEATURES
85℃, 2000hoursassured.
RoHSCompliant
Voltages up to 450vdc.

Datasheet-For-SMD-Aluminum-Electrolytic-Capacitors-▏85℃-▏Extended-Range-▏CAGB.pdf (1035 downloads)

SPECIFICATIONS

Item	Performance
Operating Temp. Range	-40°C ~ + 85°C
Capacitance Tolerance	± 20% (120Hz, 20°C)
Leakage Current (at 20·C)	I=0.01CV or 3µA (whichever is greater) after 2 minutes, where C=rated capacitance in F V=rated DC working Volts
Dissipation Factor Tanδ at 120 Hz, 20°C	Rated Voltage		6.3	10		16		25		35			50		63			100		160 ~ 250		400 ~ 450
	4 ~ 10φ		0.35	0.30		0.26		0.16		0.14			0.12		0.12			0.12		–		–
	12.5 ~ 16φ		0.38	0.34		0.30		0.26		0.22			0.18		0.14			0.10		0.20		0.25
Low Temperature Characteristics (at 120Hz)	Rated Voltage						6.3		10		16	25		35		50		63	100		160-250	400-450
	Impedance Ratio	Z(-25°C) /Z(+20°C)			4 ~ 10		4		4		3	2		2		2		2	3		–	–
					12.5 ~ 16		–		5		4	2		3		2		2	2		3	6
		Z(-40°C)			D<10		17		10		8	4		3		3		3	4		–	–
		/Z(+20°C)			D>10		–		12		10	5		4		3		3	3		6	10
Life Test	Test Time			Load Life													Shelf Life
				2000 Hrs													1000 Hrs
	Capacitance Change			Within ±20% of initial value													Within ± 20% of initial value
	Dissipation Factor			Less than 200% of specified value													Less than 200% of specified value
	Leakage Current			Within specified value													Within specified value
	Test Conditions			20°C (after rated voltage applied for 2000 hours at 85°C													20° C (after storage for 1000 hours at 85°C without voltage)
Ripple Current & Frequency Multilpiers	VDC(V) Freq. (Hz)		50,60	120		1K		10Kup
	6.3 ~ 35		0.64	0.8		0.93		1.0
Standards	JLS C 5101-1, -18

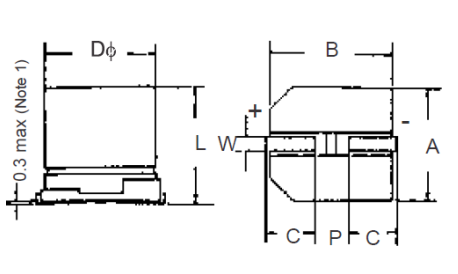

PAD SPACING AND DIAMETER

φD	L	A	B	C	W	P±0.2
4	5.3±0.2	4.3	4.3	2.0	0.5 to 0.8	1.0
5	5.3±0.2	5.3	5.3	2.3	0.5 to 0.8	1.5
6.3	5.3±0.2	6.6	6.6	2.7	0.5 to 0.8	2.0
6.3	7.7±0.3	6.6	6.6	2.7	0.5 to 0.8	2.0
8	10±0.3	8.4	8.4	3.0	0.7 to 1.1	3.1
10	10±0.3	10.4	10.4	3.3	0.7 to 1.1	4.7
12.5	1.3±0.3	12.8	12.8	4.9	1.1 to 1.4	4.6
12.5	16±0.3	12.8	12.8	4.9	1.1 to 1.4	4.6
16	16.5±0.3	16.3	16.3	5.8	1.8 to 2.2	6.0

Note 1-Diameters of 12.5mm & 16mm diameter is 0.4mm Max

PART NUMBER EXAMPLE

CAGB 220 M 1A TR 040 053

DIMENSION & PERMISSIBLE RIPPLE CURRENT

Dimension: φD x L(mm)

Ripple Current mA/rms at 120Hz, 85 °C

VDC μF Code		6.3V (0J)		10V (1A)		16V (1C)		25V (1E)		35V (1V)		50V (1H)
VDC μF Code		D x L	mA	D x L	mA	D x L	mA	D x L	mA	D x L	mA	D x L	mA
0.1	0R1											4 x 5.3	3
0.22	R22											4 x 5.3	5
0.33	R33											4 x 5.3	6
0.47	R47											4 x 5.3	7
1	010											4 x 5.3	10
2.2	2R2											4 x 5.3	15
3.3	3R3											4 x 5.3	15
4.7	4R7							4 x 5.3	19	4 x 5.3	18	4 x 5.3	18
10	100			4 x 5.3	26	4 x 5.3	26	4 x 5.3	24	4 x 5.3	24	5 x 5.3	30
22	220	4 x 5.3	30	4 x 5.3	26	4 x 5.3	26	5 x 5.3	41	5 x 5.3	41	6.3 x 5.3	47
33	330	4 x 5.3	30	5 x 5.3	30	5 x 5.3	37	5 x 5.3	47	6.3 x 5.3	54	6.3 x 7.7	70
47	470	4 x 5.3	33	5 x 5.3	44	5 x 5.3	44	6.3 x 5.3	60	6.3 x 5.3	64	6.3 x 7.7	85
100	101	5 x 5.3	55	6.3 x 5.3	70	6.3 x 5.3	70	6.3 x 7.7	120	6.3 x 7.7	120	8 x 10	190
220	221	6.3 x 5.3	88	6.3 x 7.7	130	6.3 x 7.7	130	8 x 10	260	8 x 10	260	10 x 10	320
330	331	6.3 x 7.7	135	8 x 10	270	8 x 10	270	8 x 10	300	10 x 10	360	12.5 x 13.5	600
470	471	8 x 10	280	8 x 10	280	8 x 10	280	10 x 10	400	12.5 x 13.5	600	12.5 x 16	740
1000	102	8 x 10	430	10 x 10	430	12.5 x 13.5	710	12.5 x 13.5	820	16 x 16.5	1100
2200	222	12.5 x 13.5	890	12.5 x 13.5	960	16 x 16.5	1150	16 x 16.5	1450
3300	332	12.5 x 16	1000	16 x 16.5	1300	16 x 16.5	1150
4700	472	16 x 16.5	1400	16 x 16.5	1300
6800	682	16 x 16.5	1700

VDC μF Code		63V (1J)		100V (2A)		160V (2C)		200V (2D)		250V (2E)		400V (2GH)
VDC μF Code		D x L	mA	D x L	mA	D x L	mA	D x L	mA	D x L	mA	D x L	mA
0.1	0R1	4 x 5.3	1.3
0.22	R22	4 x 5.3	30
0.33	R33	4 x 5.3	4
0.47	R47	4 x 5.3	5
1	010	4 x 5.3	8
2.2	2R2	4 x 5.3	12
3.3	3R3	5 x 5.3	17
4.7	4R7	5 x 5.3	20									12.5 x 13.5	120
10	100	6.3 x 5.3	32	8 x 10	90					12.5 x 13.5	150	12.5 x 13.5	120
22	220	6.3 x 7.7	60	8 x 10	90			12.5 x 13.5	240	12.5 x 13.5	150	16 x 16.5	140
33	330	6.3 x 7.7	60	10 x 10	120	12.5 x 13.5	240	12.5 x 16	310	12.5 x 16	240	16 x 16.5	3140
47	470	8 x 10	130	10 x 10	120	12.5 x 16	370	16 x 16.5	340	16 x 16.5	340
68	680	10 x 10	170	12.5 x 13.5	380	16 x 16.5	500	16 x 16.5	340
100	101	12.5 x 13.5	380	12.5 x 13.5	380
220	221	12.5 x 13.5	580	16 x 16.5	500
330	331	12.5 x 16	720
470	471	16 x 16.5	950

VDC μF Code		450V (2W)
VDC μF Code		D x L	mA
4.7	4R7	12.5 x 13.5	120
10	100	12.5 x 16	130
22	220	16 x 16.5	140

PART NUMBER EXAMPLE

RATED VOLTAGE

WV	6.3	10	16	25	35	50
Code	0J	1A	1C	1E	1V	1H
WV	63	100	160	200	250	400
Code	1J	2A	2C	2D	2E	2GH

SIZE CODE EXAMPLE

Type	Diameter	Length	Diameter	Length
Size	4.0	5.3	12.7	13.5
Code	040	053	127	135

TOLERANCE CODE

Code	Tolerance
J	+ 5%
K	+ 10%
M	+ 20%

FEATURES

◆ 85℃,2000hours assured.
◆ RoHS Compliant
◆ Voltages up to 450vdc.
