SMD Aluminum Electrolytic Capacitors ▏125℃ High Temperature ▏CAMA
FEATURES
High Temperature Range up to +125°C
For automobile modules and other high temperature applications
RoHS Compliant
High Temperature Range up to +125°C
For automobile modules and other high temperature applications
RoHS Compliant
SPECIFICATIONS
| Items | Performance | |||||||||
| Operating Temperature Range | 10 ~ 50V | |||||||||
| 40 °C ~ +125 °C | ||||||||||
| Capacitance Tolerance | +20% | |||||||||
| Leakage Current (at 20 °C) | I = 0.03CV or 4 (µA) whichever is greater (after 1 minute) Where C
= rated capacitance in µF. V = rated DC working voltage in V. |
|||||||||
| Dissipation Factor (Tan δ at 120Hz, 20 °C) | Rated
Voltage |
10 | 16 | 25 | 35 | 50 | ||||
| Tan δ (max) | 0.32 | 0.24 | 0.21 | 0.18 | 0.18 | |||||
|
Low Temperature Characteristics (at 120Hz) |
Impedance ratio shall not exceed the values given in the table below. | |||||||||
| Rated Voltage | 10 | 16 | 25 | 35 | 50 | |||||
| Impedance
Ratio |
Z (-40 °C)/Z(+20 °C) | 5 | 4 | 3 | 3 | 3 | ||||
|
Load Life Test |
Test Time | 1,000 Hrs | ||||||||
| Capacitance Change | Within +30% of initial value | |||||||||
| Dissipation Factor | Less than 300% of specified value | |||||||||
| Leakage Current | Within specified value | |||||||||
| * The above specifications shall be satisfied when the capacitors are restored to 20 °C after the rated
voltage applied for 1,000 hrs at 125 °C |
||||||||||
| Shelf Life Test | Test Time: 1,000 hrs; other items are the same as those for the load life test. | |||||||||
| Other Standards | JIS C 5101-1, -18 | |||||||||
DIMENSION & PERMISSIBLE RIPPLE CURRENT
Dimension: φD x L(mm)
Ripple Current mA/rms at 120KHz, 125°C
| V.DC | 10V (1A) | 16V (1C) | 25V (1E) | 35V (1V) | 50V (1H) | ||||||
| µF | Contents | D x L | mA | D x L | mA | D x L | mA | D x L | mA | D x L | mA |
| 33 | 330 | 6.3 x 5.7 | 50 | 6.3 x 5.7 | 50 | 6.3 x 7.7 | 70 | 8 x 10 | 130 | ||
| 47 | 470 | 6.3 x 5.7 | 70 | 6.3 x 7.7 | 70 | 8 x 6.5 | 75 | 8 x 10 | 130 | ||
| 100 | 101 | 8.0 x 6.5 | 78 | 8 x 6.5 | 75 | 8 x 10 | 134 | 10 x 10 | 182 | 12.5 x 13.5 | 357 |
| 220 | 221 | 8.0 x 10 | 131 | 10 x 10 | 181 | 10 x 10 | 181 | 12.5 x 13.5 | 357 | 12.5 x 16 | 401 |
| 330 | 331 | 8.0 x 10 | 131 | 12.5 x 13.5 | 480 | 12.5 x 13.5 | 480 | 16 x 16.5 | 650 | 16 x 16.5 | 652 |
| 470 | 471 | 12.5 x 13.5 | 480 | 12.5 x 13.5 | 480 | 12.5 x 13.5 | 480 | 16 x 16.5 | 650 | ||
| 680 | 681 | 12.5 x 13.5 | 480 | 12.5 x 13.5 | 480 | 12.5 x 16 | 585 | 16 x 16.5 | 650 | ||
| 1,000 | 102 | 12.5 x 16 | 585 | 12.5 x 16 | 589 | 16 x 16.5 | 650 | 18 x 16.5 | 855 | ||

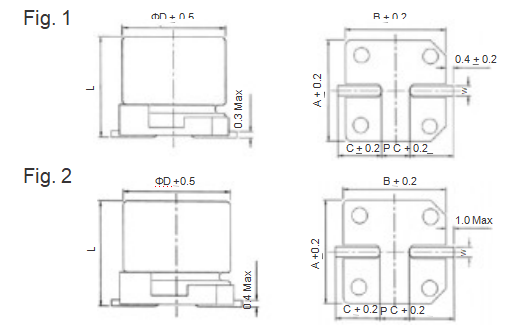

PAD SPACING AND DIAMETER
| ΦD | L | A | B | C | W | P±0.2 | Fig.
No. |
| 8 | 10.0 + 0.5 | 8.4 | 8.4 | 3.0 | 0.7 to 1.1 | 3.1 | 1 |
| 10 | 10.0 + 0.5 | 10.4 | 10.4 | 3.3 | 0.7 to 1.1 | 4.7 | 1 |
| 12.5 | 13.0 + 0.5 | 12.8 | 12.8 | 4.9 | 1.1 to 1.4 | 4.2 | 2 |
| 12.5 | 16.0 + 0.5 | 12.8 | 12.8 | 4.9 | 1.1 to 1.4 | 4.2 | 2 |
| 16 | 16.5 + 0.5 | 16.3 | 16.3 | 5.8 | 1.1 to 1.4 | 6.0 | 2 |
PART NUMBER EXAMPLE
CAMA 221 M 1A TR 080 100
