SMD Aluminum Electrolytic Capacitors ▏105℃ ▏Ultra Low ESR ▏CAHC

FEATURES
105°C, 2000 ~ 5000 hours assured
Ultra Low Impedance Capacitors
RoHS Compliant

Datasheet-For-SMD-Aluminum-Electrolytic-Capacitors-▏105℃-▏Ultra-Low-ESR-▏CAHC.pdf (1027 downloads)

SPECIFICATIONS

Items	Performance
Operating Temperature Range	6.3 ~ 63V								80 ~ 100V
	-55°C ~ +105°C								-40°C ~ +105°C
Capacitance Tolerance	+20%
Leakage Current (at 20°C)	I = 0.01CV or 3 (µA) whichever is greater (after 2 minutes) Where, C= rated capacitance in µ F. V= rated DC working voltage inV.
Dissipation Factor (Tanδ at 120Hz, 20°C)	Rated Voltage	6.3	10	16	25	35	50	63	80	100
	Tanδ (max)	0.30	0.26	0.22	0.16	0.13	0.10	0.08	0.08	0.07
Low Temperature Characteristics (at 120Hz)	Impedance ratio shall not exceed the values given in the table below.
	Rated Voltage				6.3	10	16	25	35	50	63	80	100
	Impedance Ratio	Z (-25°C)/Z(+20°C)			4	3	2	2	2	2	2	2	2
		Z(-40°C)/Z(+20°C)			8	5	4	3	3	3	3	3	3
Load Life Test	Test Time		2,000 Hrs for 4 ~ 6.3Φ					3,000 Hrs for 8 ~ 10Φ						5,000 Hrs for 12.5 ~ -16Φ
	Capacitance Change		Within +25% of initial value					Within +30% of initial value						Within +30% of initial value
	Dissipation Factor		Less than 200% of specified value					Less than 300% of specified value						Less than 300% of specified value
	Leakage Current		Within specified value					Within specified value						Within specified value
	* The above specifications shall be satisfied when the capacitors are restored to 20°C after the rated voltage applied for 2,000 ~ 5,000 hrs at 105°C
Shelf Life Test	Test Time: 1000 hrs; other items are the same as those for the load life test
Ripple Current & Frequency Multipliers	Freq. (Hz) V.DC (V)	50, 60	120	1k	1k up
	6.3 ~ 100	0.64	0.8	0.93	1.0
Standards	JIS C 5101-1

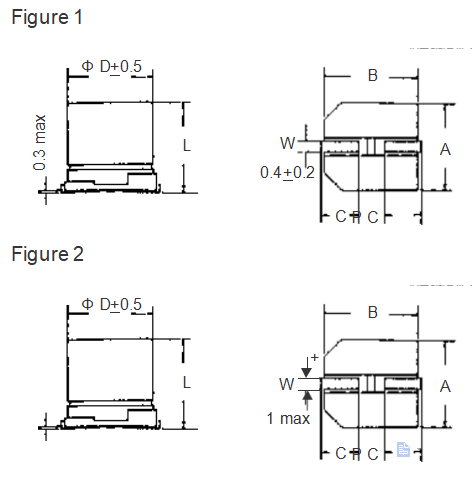

PAD SPACING AND DIAMETER

φD	L	A ±0.2	B ±0.2	C ±0.2	W	P±0.2	Fig. No.
4	5.7 ± 0.3	4.3	4.3	2.0	0.5 to 0.8	1.0	1
5	5.7 ± 0.3	5.3	5.3	2.3	0.5 to 0.8	1.5	1
6.3	5.7 ± 3.3	6.3	6.3	2.7	0.5 to 0.8	2.0	1
6.3	7.7 ± 0.3	6.6	6.6	2.7	0.5 to 0.8	2.0	1
8	10 ± 0.5	8.4	8.4	3.0	0.7 to 1.1	3.1	1
10	10 ± 0.5	10.4	10.4	3.3	0.7 to 1.1	4.7	1
12.5	13.5 ± 0.5	12.8	12.8	4.9	1.1 to 1.4	4.2	2
12.5	16 ± 0.5	12.8	12.8	4.9	1.1 to 1.4	4.2	2
16	16.5 ± 0.5	16.3	16.3	5.8	1.8 to 2.2	6.0	2

PART NUMBER EXAMPLE

CAHC 101 MI V TR 080100

DIMENSION, IMPEDANCE & PERMISSIBLE RIPPLE CURRENT

Dimension : φD x L(mm)

Ripple Current mA/rms at 100KHz, 105°C Impedance : at 100KHz, 20ºC

V.DC µF Contents		6.3V (0J)			10V (1A)			16V (1C)			25V (1E)			35V (1V)
V.DC µF Contents		ΦD x L	mA	Imp.	ΦD x L	mA	Imp.	ΦD x L	mA	Imp.	ΦD x L	mA	Imp.	ΦD x L	mA	Imp.
4.7	4R7													4 x 5.7	80	1.35
10	100							4 x 5.7	80	1.35	4 x 5.7	80	1.35	5 x 5.7	150	0.80
22	220	4 x 5.7	80	1.35	4 x 5.7	80	1.35	5 x 5.7	150	0.80	5 x 5.7	150	0.80	6.3 x 5.7	230	0.44
33	330	4 x 5.7	80	1.35	5 x 5.7	150	0.80	6.3 x 5.7	230	0.44	6.3 x 5.7	230	0.44	6.3 x 5.7	230	0.44
47	470	5 x 5.7	150	0.80	6.3 x 5.7	230	0.44	6.3 x 5.7	230	0.44	6.3 x 5.7	230	0.44	6.3 x 5.7	230	0.44
100	101	6.3 x 5.7	230	0.44	6.3 x 5.7	230	0.44	6.3 x 5.7	230	0.44	6.3 x 7.7	280	0.36	8 x 10	450	0.17
150	151	6.3 x 5.7	230	0.44	6.3 x 5.7	230	0.44	6.3 x 7.7	280	0.36	8 x 10	450	0.17	8 x 10	450	0.17
220	221	6.3 x 7.7	280	0.36	6.3 x 7.7	280	0.36	6.3 x 7.7	280	0.36	8 x 10	450	0.17	10 x 10	670	0.09
330	331	8 x 10	450	0.17	8 x 10	450	0.17	8 x 10	450	0.17	8 x 10	450	0.17	12.5 x 13.5	820	0.07
470	471	8 x 10	450	0.17	8 x 10	450	0.17	8 x 10	450	0.17	10 x 10	670	0.09	12.5 x 16	950	0.06
680	681	8 x 10	450	0.17	10 x 10	670	0.09	10 x 10	670	0.09	12.5 x 13.5	820	0.07	12.5 x 16	950	0.06
1,000	102	8 x 10	450	0.17	10 x 10	670	0.09	12.5 x 13.5	820	0.07	12.5 x 16	950	0.06	16 x 16.5	1,260	0.054
1,500	152	10 x 10	670	0.09	13 x 13.5	820	0.07	12.5 x 16	950	0.06	16 x 16.5	1,260	0.054
2,200	222	12.5 x 14	820	0.07	13 x 16	950	0.06	16 x 16.5	1,260	0.054	16 x 16.5	1,260	0.054
3,300	332	12.5 x 16	950	0.06	16 x 16.5	1,260	0.054	16 x 16.5	1,260	0.054
4,700	472	16 x 17	1,260	0.054	16 x 16.5	1,260	0.054

V.DC µF Contents		50V (1H)			63V (1J)			80V (1K)			100V (2A)
V.DC µF Contents		Φ D xL	mA	Imp.	Φ D x L	mA	Imp.	ΦD x L	mA	Imp.	ΦD x L	mA	Imp.
1	010	4 x 5.7	60	2.9
2.2	2R2	4 x 5.7	60	2.9
3.3	3R3	4 x 5.7	60	2.9
4.7	4R7	5 x 5.7	85	1.52	5 x 5.7	85	1.52
10	100	6.3 x 5.7	165	0.88	6.3 x 5.7	165	0.88
22	220	6.3 x 5.7	165	0.88	6.3 x 7.7	185	0.68
33	330	6.3 x 7.7	185	0.68	8 x 10	369	0.34
47	470	6.3 x 7.7	185	0.68	8 x 10	369	0.34				10 x 10	200	0.7
68	680	8 x 10	369	0.34	10 x 10	553	0.18	10 x 10	200	0.7	12.5 x 13.5	450	0.32
100	101	8 x 10	369	0.34	10 x 10	553	0.18	12.5 x 13.5	450	0.32	12.5 x 16	550	0.26
150	151	10 x 10	553	0.18	12.5 x 13.5	650	0.12	12.5 x 13.5	450	0.32	16 x 16.5	650	0.17
220	221	10 x 10	553	0.18	12.5 x 13.5	650	0.12	12.5 x 16	550	0.26
330	331	12.5 x 13.5	650	0.12	16 x 16.5	900	0.082	16 x 16.5	650	0.17
470	471	16 x 16.5	900	0.082	16 x 16.5	900	0.082
680	681	16 x 16.5	900	0.082

FEATURES

◆ 105°C, 2000 ~ 5000 hours assured
◆ Ultra Low Impedance Capacitors
◆ RoHS Compliant
