SMD Aluminum Electrolytic Capacitors ▏85℃ ▏ Low Leakage ▏CAHZ
FEATURES
Vertical chip type miniaturized for 5.5mm, high capacitors
Low leakage current
RoHS compliant
Vertical chip type miniaturized for 5.5mm, high capacitors
Low leakage current
RoHS compliant
SPECIFICATIONS
| Item | Performance | |||||||||||||||
| Operating Temp. Range | -40°C ~ + 85°C | |||||||||||||||
| Capacitance Tolerance | ± 20% (120Hz, 20°C) | |||||||||||||||
| Leakage Current (at 20•C) | I=0.002CV or 0.5µA (whichever is greater) after 2 minutes, where C=rated capacitance in µF and V = rated working Voltage | |||||||||||||||
| Dissipation Factor
Tanδ at 120 Hz, 20°C |
Rated Voltage | 6.3 | 10 | 16 | 25 | 35 | 50 | |||||||||
| Tanδ (max) | 0.28 | 0.24 | 0.20 | 0.14 | 0.12 | 0.10 | ||||||||||
| Low Temperature Characteristics (at 120Hz) | Rated Voltage | 6.3 | 10 | 16 | 25 | 35 | 50 | |||||||||
| Impedance Ratio Maximum | Z(-25°C) /Z(+20°C) | 3 | 3 | 2 | 2 | 2 | 2 | |||||||||
| Z(-40°C) /Z(+20°C) | 8 | 5 | 4 | 3 | 3 | 3 | ||||||||||
|
Life Test |
Test Time | Load Life | Shelf Life | |||||||||||||
| 2000 Hrs | 2000 Hrs | |||||||||||||||
| Capacitance Change | Within ± 20% of initial value | Within ± 20% of initial value | ||||||||||||||
| Dissipation Factor | Less than 200% of specified value | Less than 200% of specified value | ||||||||||||||
| Leakage Current | Within specified value | Within specified value | ||||||||||||||
| Test Conditions | 20°C (after rated voltage applied for 2000 hours at
85°C |
20° C (after storage for 2000 hours at 85°C
without voltage) |
||||||||||||||
|
Ripple Current & Frequency Multilpiers |
VDC(V) Freq. (Hz) | 50 | 120 | 1K | 10K up | |||||||||||
| Under 16 | 0.8 | 1.00 | 1.15 | 1.25 | ||||||||||||
| 25 ~ 35 | 0.8 | 1.00 | 1.25 | 1.40 | ||||||||||||
| 50 | 0.8 | 1.00 | 1.35 | 1.50 | ||||||||||||
| Standards | JIS C 5101-1,-18 | |||||||||||||||
DIMENSION & PERMISSIBLE RIPPLE CURRENT
Dimension: φ D x L(mm)
Ripple Current mA/rms at 120 Hz, 85°C
| VDC
μF Contents |
6.3V (0J) | 10V (1A) | 16V (1C) | 25V (1E) | 35V (1V) | 50V (1H) | |||||||
| φD x L | mA | φD x L | mA | φD x L | mA | φD x L | mA | φD x L | mA | φD x L | mA | ||
| 0.1 | 0R1 | 4 x 5.3 | 3 | ||||||||||
| 0.22 | R22 | 4 x 5.3 | 5 | ||||||||||
| 0.33 | R33 | 4 x 5.3 | 6 | ||||||||||
| 0.47 | R47 | 4 x 5.3 | 7 | ||||||||||
| 1 | 010 | 4 x 5.3 | 10 | ||||||||||
| 2.2 | 2R2 | 4 x 5.3 | 15 | ||||||||||
| 3.3 | 3R3 | 4 x 5.3 | 19 | ||||||||||
| 4.7 | 4R7 | 4 x 5.3 | 19 | 4 x 5.3 | 20 | 5 x 5.3 | 26 | ||||||
| 10 | 100 | 4 x 5.3 | 23 | 4 x 5.3 | 26 | 5 x 5.3 | 32 | 5 x 5.3 | 34 | 6.3 x 7.7 | 44 | ||
| 22 | 220 | 4 x 5.3 | 31 | 5 x 5.3 | 39 | 5 x 5.3 | 44 | 6.3 x 5.3 | 55 | 6.3 x 5.3 | 59 | ||
| 33 | 330 | 5 x 5.3 | 44 | 5 x 5.3 | 48 | 6.3 x 5.3 | 63 | 6.3 x 5.3 | 67 | ||||
| 47 | 470 | 5 x 5.3 | 52 | 6.3 x 5.3 | 67 | 6.3 x 5.3 | 75 | ||||||
| 100 | 101 | 6.3 x 5.3 | 89 | 6.3 x 5.3 | 98 | ||||||||

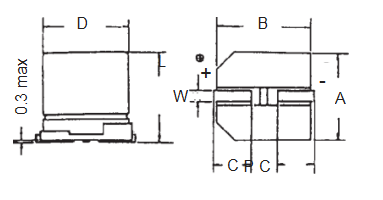

PAD SPACING AND DIAMETER
| φD | L | A | B | C | W | P+0.2 |
| 4 | 5.3±0.2 | 4.3 | 4.3 | 2.0 | 0.5 to 0.8 | 1.0 |
| 5 | 5.3±0.2 | 5.3 | 5.3 | 2.3 | 0.5 to 0.8 | 1.5 |
| 6.3 | 5.3±0.2 | 6.6 | 6.6 | 2.7 | 0.5 to 0.8 | 2.0 |
PART NUMBER EXAMPLE
CAHZ 100 M 1V TR 050053
