Screw Electrolytic Capacitors ▏85℃ 5,000Hrs ▏CAWC

FEATURES
◆Longest useful life
◆High Reliability
◆Used for inverter、professional power supplies
◆RoHS Compliant

Datasheet-For-Screw-Electrolytic-Capacitors-▏85℃-5000Hrs-▏CAWC.pdf (908 downloads)

SPECIFICATIONS

Item	Performance
Operating Temp.	-40°C ~+85°C
Capacitance Toloerance	± 20% (120Hz, 20°C)
LeakageCurrent (at 20°C)	I = 0.01CV or 5 (mA) whichever is smaller (after 5 minutes) Where, C= rated capacitance in F. V= rated DC working voltage in V.
Dissipation Factor Tan at 120Hz, 20°C	Tan (max)		0.15
Low Temperature Characteristics (at 120Hz)	Capacitance change: C(-25°C)/ C(+20°C) 0.7
Load Life Test at 20 °C after subjected to DC voltage with rated rippled current applied for 5000 hours at 85°C	Test Time		5000 hours
	Capacitance Change		Within ±15% of initial value
	Dissipation Factor		Less than 175% of specified value
	Leakage Current		Within specified value
Shelf Life Test at 20 °C after exposing them for 1000 hours at 85°C without voltage applied. The rated voltage shall be applied to the capacitors before the measurements. (Refer to JIS 5102)	Test Time		1000 hours
	Capacitance Change		Within ±20% of initial value
	Dissipation Factor		Less than 200% of specified value
	Leakage Current		Within specified value
Ripple Current & Frequency Multipliers	Frequenc	y (Hz)	50 / 60	120	300	1K	10K up
	Multiplier		0.7	1.0	1.1	1.3	1.4
Ripple Current & Temperature Multipliers	Temperature (°C)		40	60	85
	Mutipliers		1.89	1.67	1.0
Standards	Satisfies Characteristic W of JIS C 5101-4

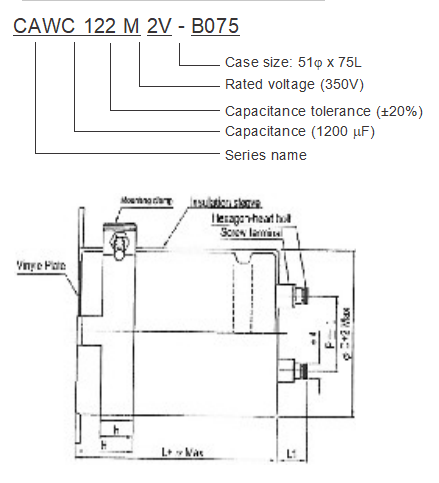

PART NUMBER EXAMPLE

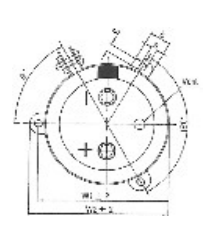

DIMENSIONS

D	P		L1	W1	W2	H	h	a	b	c	°
51	22.0	2	10	61.0	65.5	21.0	15.0	7.0	12.0	4.5	60
64	28.6	2	10	72.5	78.0	25.0	20.0	7.0	14.0	4.5	60
77	32.0	2	10	85.5	91.0	35.0	20.0	8.0	16.0	4.5	60
90	32.0	2	10	101	106	34.5	20.0	8.0	16.0	5.0	60

Screw Specifications:

Plus hexagon-headed screw: M5 x 0.8 x 10 Max. screw tightening torque: 3.23Nm

DIMENSIONS & PERMISSIBLE RIPPLE CURRENT

V.DC Item uF	350V (2V)						400V (2G)						450V (2W)						500V (2H)						525V (2Y)
V.DC Item uF	Size Code	D x L			Tan	Ripple Current	Size Code	D x L			Tan	Ripple Current	Size Code	D xL			Tan	Ripple Current	Size Code	D x L			Tan	Ripple Current	Size Code	D x L	Tan	Ripple Current
1,000							B075	51	x	75	0.15	5.0	B075	51	x	75	0.15	5.0	B096	51	x	96	0.20	5.5	B115	51 x 115	0.20	6.7
1,200	B075	51	x	75	0.15	5.5	B075	51	x	75	0.15	5.5	B096	51	x	96	0.15	6.0	B115	51	x	115	0.20	6.6	B130	51 x 130	0.20	7.6
1,200																			C096	64	x	96	0.20	6.9	C096	64 x 96	0.20	7.5
1,500	B075	51	x	75	0.15	6.1	B096	51	x	96	0.15	6.7	B115	51	x	115	0.15	7.2	B130	51	x	130	0.20	7.8	C115	64 x 115	0.20	8.4
1,500																			C096	64	x	96	0.20	7.7	C130	64 x 130	0.20	9.1
1,800	B096	51	x	96	0.15	73.4	B096	51	x	96	0.15	7.4	B130	51	x	130	0.15	8.3	C115	64	x	115	0.20	8.6	D115	77 x 115	0.20	9.9
2,200	B096	51	x	96	0.15	8.20	B130	51	x	130	0.15	9.2	C096	64	x	96	0.15	9.0	C130	64	x	130	0.20	9.40	D130	77 x 130	0.20	10.5
2,700	B130	51	x	130	0.15	10.20	C096	64	x	96	0.15	9.9	C115	64	x	115	0.15	10.7	D115	77	x	115	0.20	9.90	D155	77 x 155	0.20	11.2
3,300	B130	51	x	130	0.15	11.30	C115	64	x	115	0.15	11.8	C130	64	x	130	0.15	12.4	D130	77	x	130	0.20	10.40	E157	90 x 157	0.20	12.1
3,900	C115	64	x	115	0.15	12.80	C130	64	x	130	0.15	13.5	D115	77	x	115	0.15	13.6	D130	77	x	155	0.20	11.00
4,700							C155	64	x	155	0.15	15.9	C195	64	x	195	0.15	17.5
4,700	C130	64	x	130	0.15	14.8	D115	77	x	115	0.15	14.9	D130	77	x	130	0.15	15.6	E130	90	x	130	0.20	13.5
5,600	C155	64	x	155	0.15	17.3	C195	64	x	195	0.15	19.1
5,600	D115	77	x	115	0.15	16.3	D130	77	x	130	0.15	17.0	D155	77	x	155	0.15	18.3	E157	90	x	157	0.20	15.5
6,800	D130	77	x	130	0.15	18.8	D155	77	x	155	0.15	20.2	E157	90	x	157	0.15	21.4
8,200	D155	77	x	155	0.15	22.1	E157	90	x	157	0.15	23.5	E157	90	x	157	0.15	23.5
10,000	E157	90	x	157	0.15	25.9	E157	90	x	157	0.15	25.9	E196	90	x	196	0.15	28.3
12,000	E157	90	x	157	0.15	28.4	E196	90	x	196	0.15	31.0	E236	90	x	236	0.15	33.6
15,000	E196	90	x	196	0.15	34.6	E236	90	x	236	0.15	37.5
18,000	E236	90	x	236	0.15	41.4

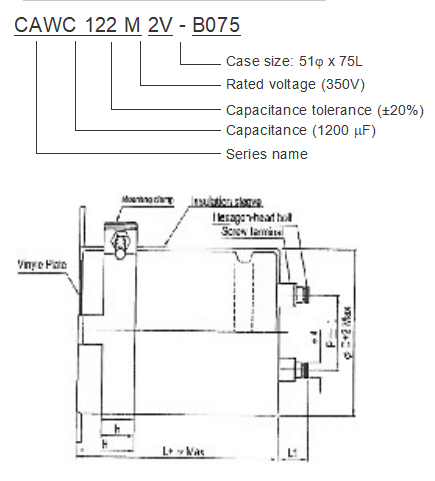

PART NUMBER EXAMPLE

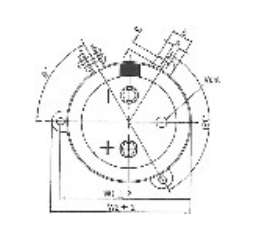

DIMENSIONS

D	P		L1	W1	W2	H	h	a	b	c	°
51	22.0	2	10	61.0	65.5	21.0	15.0	7.0	12.0	4.5	60
64	28.6	2	10	72.5	78.0	25.0	20.0	7.0	14.0	4.5	60
77	32.0	2	10	85.5	91.0	35.0	20.0	8.0	16.0	4.5	60
90	32.0	2	10	101	106	34.5	20.0	8.0	16.0	5.0	60

Screw Specifications:

Plus hexagon-headed screw: M5 x 0.8 x 10 Max. screw tightening torque: 3.23Nm

DIMENSIONS & PERMISSIBLE RIPPLE CURRENT

V.DC Item uF	350V (2V)						400V (2G)						450V (2W)						500V (2H)						525V (2Y)
V.DC Item uF	Size Code	D x L			Tan	Ripple Current	Size Code	D x L			Tan	Ripple Current	Size Code	D xL			Tan	Ripple Current	Size Code	D x L			Tan	Ripple Current	Size Code	D x L	Tan	Ripple Current
1,000							B075	51	x	75	0.15	5.0	B075	51	x	75	0.15	5.0	B096	51	x	96	0.20	5.5	B115	51 x 115	0.20	6.7
1,200	B075	51	x	75	0.15	5.5	B075	51	x	75	0.15	5.5	B096	51	x	96	0.15	6.0	B115	51	x	115	0.20	6.6	B130	51 x 130	0.20	7.6
1,200																			C096	64	x	96	0.20	6.9	C096	64 x 96	0.20	7.5
1,500	B075	51	x	75	0.15	6.1	B096	51	x	96	0.15	6.7	B115	51	x	115	0.15	7.2	B130	51	x	130	0.20	7.8	C115	64 x 115	0.20	8.4
1,500																			C096	64	x	96	0.20	7.7	C130	64 x 130	0.20	9.1
1,800	B096	51	x	96	0.15	73.4	B096	51	x	96	0.15	7.4	B130	51	x	130	0.15	8.3	C115	64	x	115	0.20	8.6	D115	77 x 115	0.20	9.9
2,200	B096	51	x	96	0.15	8.20	B130	51	x	130	0.15	9.2	C096	64	x	96	0.15	9.0	C130	64	x	130	0.20	9.40	D130	77 x 130	0.20	10.5
2,700	B130	51	x	130	0.15	10.20	C096	64	x	96	0.15	9.9	C115	64	x	115	0.15	10.7	D115	77	x	115	0.20	9.90	D155	77 x 155	0.20	11.2
3,300	B130	51	x	130	0.15	11.30	C115	64	x	115	0.15	11.8	C130	64	x	130	0.15	12.4	D130	77	x	130	0.20	10.40	E157	90 x 157	0.20	12.1
3,900	C115	64	x	115	0.15	12.80	C130	64	x	130	0.15	13.5	D115	77	x	115	0.15	13.6	D130	77	x	155	0.20	11.00
4,700							C155	64	x	155	0.15	15.9	C195	64	x	195	0.15	17.5
4,700	C130	64	x	130	0.15	14.8	D115	77	x	115	0.15	14.9	D130	77	x	130	0.15	15.6	E130	90	x	130	0.20	13.5
5,600	C155	64	x	155	0.15	17.3	C195	64	x	195	0.15	19.1
5,600	D115	77	x	115	0.15	16.3	D130	77	x	130	0.15	17.0	D155	77	x	155	0.15	18.3	E157	90	x	157	0.20	15.5
6,800	D130	77	x	130	0.15	18.8	D155	77	x	155	0.15	20.2	E157	90	x	157	0.15	21.4
8,200	D155	77	x	155	0.15	22.1	E157	90	x	157	0.15	23.5	E157	90	x	157	0.15	23.5
10,000	E157	90	x	157	0.15	25.9	E157	90	x	157	0.15	25.9	E196	90	x	196	0.15	28.3
12,000	E157	90	x	157	0.15	28.4	E196	90	x	196	0.15	31.0	E236	90	x	236	0.15	33.6
15,000	E196	90	x	196	0.15	34.6	E236	90	x	236	0.15	37.5
18,000	E236	90	x	236	0.15	41.4

FEATURES

◆ Endurancewith ripple current: 85℃,5，000 hours

◆ Used for air conditioner, general-purpose inverter. and Power Supplies

◆ RoHS Compliant
