Screw Electrolytic Capacitors ▏85℃ 20,000Hrs ▏CAWD

FEATURES
◆Longest useful life
◆High Reliability
◆Used for inverter、professional power supplies
◆RoHS Compliant

Items	Performance
Operating Temperature Range	-40°C ~ +85°C
Capacitance Tolerance	+20% (at 120Hz, 20°C)
Leakage Current (at 20°C)	I = 0.01CV or 5 mA whichever is smaller (after 5 minutes) Where, C= rated capacitance in F. V= rated DC working voltage in V.
Dissipation Factor (Tan at 120Hz, 20°C)	Rated Voltage		350 ~ 450
	Tan (max)		0.15
Low Temperature Characteristics (at 120Hz)	Capacitance change: C( -25 °C) / C( +20 °C) > 0.7
Load Life Test	Test Time		20,000 Hrs
	Capacitance Change		Within +20% of initial value
	Dissipation Factor		Less than 200% of specified value
	Leakage Current		Within specified value
	* The above specifications shall be satisfied when the capacitors are restored to 20°C after subjected to DC voltage with rated ripple current applied for 20,000 hrs at 85 °C.
Shelf Life Test	Test Time		1,000 Hrs
	Capacitance Change		Within +20% of initial value
	Dissipation Factor		Less than 200% of specified value
	Leakage Current		Within specified value
	* The above specifications shall be satisfied when the capacitors are restored to 20°C after exposing them for 1,000 hrs at 85°C without voltage applied. The rated voltage shall be applied to the capacitors before the measurements (Refer to JIS C 5102-4.4).
Ripple Current & Frequency Multipliers	Frequency (Hz)	50/60	120	300	1K	10K up
	Multiplier	0.7	1.0	1.1	1.3	1.4
Ripple Current & Temperature Multipliers	Temperature (°C)	40	60	85
	Multiplier	2.44	2.2	1.0
Standards	JIS C 5101-4

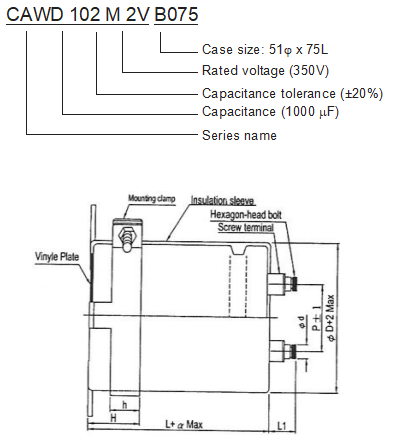

Screw Specifications:

Plus hexagon-headed screw: M5 x 0.8 x 10

Max. screw tightening torque: 3.23Nm
