Radial Leads Mica Capacitor | CGDA
Specifications&Outline Drawing
Refenence standard:GB/T2693-2001
Operating Temperatune:-55℃~+125 ℃
Rated Voltage 50V to 3000V
Capacitarce Range ±1%, ±2%, ±5%
Insulation Resistance(min):1* 1090hms
Refenence standard:GB/T2693-2001
Operating Temperatune:-55℃~+125 ℃
Rated Voltage 50V to 3000V
Capacitarce Range ±1%, ±2%, ±5%
Insulation Resistance(min):1* 1090hms
Features
Monolithic/Miniature size Low
loss and high stability
Min.work voltage under 10uV
Meet MIL-C5
Configuration
Dipped Mica Capacitors are fabricated from The top best China Danba Mica available.Using this Mica,results in the capacitor with outstanding high Temperature&frequency performance as well as Excellent stability.
Capacitance Range: 1to120,000PF
Capacitance Tolerance: +/-1%;+-2%;+/-5%
Rated Voltage 50V to 3000V
Operating Temperature: -55to + 125 degree C(+200degree C is available if requested)
Insulation Resistance(Min.): 1×109ohms

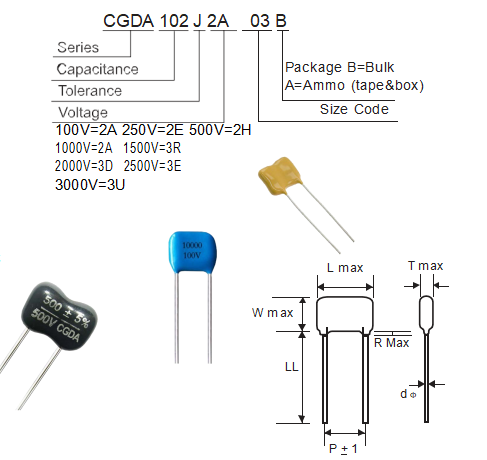

PART NUMBER EXAMPLE
INTRODUCTION
◆Monolithic/Miniature size
◆Low loss and high stability
◆Min.work voltage under 10uV
◆Meet MIL-C5
