Radial Leads Low ESR Super Capacitors ▏EDLC ▏CECA
Features
•Lower ESR
•Low temperature
•RoHS compliant
•Consumer electronic
•Pulse power
•Hold-up power
•Lower ESR
•Low temperature
•RoHS compliant
•Consumer electronic
•Pulse power
•Hold-up power

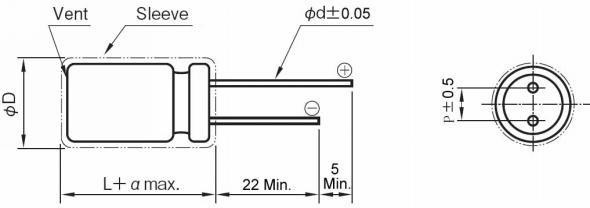

Dimensions
| ΦD | 8 | 10 | 12 | 12.5 | 16 | 18 |
| p | 3.5 | 5.0 | 7.5 | |||
| Φd | 0.6 | 0.6 | 0.8 | |||
| α | 1.5 | 2.0 | ||||
Standard Ratings for CECA Series
| UR
(Surge Voltage) Code |
Rate d Cap.
25℃ , |
Impedance | Leakage Current (72hrs) |
Size ΦDxL |
Weight |
P/N |
|
| ESRDC | ESRAC
（1KHz） |
||||||
| (v) | (F) | (mΩ) | (mΩ) | (mA) | (mm) | (g) | – |
| 1 | 400 | 200 | 0.008 | 8 x 14 | 0.8 | CECA2R7105Q080014E | |
| 2 | 250 | 130 | 0.010 | 8 x 14 | 1 | CECA2R7205Q080014E | |
| 3 | 150 | 80 | 0.012 | 8 x 20 | 1.4 | CECA2R7305Q080020E | |
| 3.3 | 150 | 80 | 0.014 | 8 x 20 | 1.5 | CECA2R7335Q080020E | |
| 5 | 130 | 70 | 0.016 | 10 x 20 | 2.1 | CECA2R7505Q100020E | |
| 2.7 | 7 | 80 | 55 | 0.020 | 10 x 25 | 2.3 | CECA2R7705Q100025E |
| (2.85) | 10 | 60 | 40 | 0.030 | 10 x 30 | 3.2 | CECA2R7106Q100030E |
| 2R7 | 10 | 60 | 40 | 0.030 | 12.5 x 25 | 3.5 | CECA2R7106Q125025E |
| 25 | 35 | 25 | 0.080 | 16 x 25 | 7 | CECA2R7256Q160025E | |
| 50 | 22 | 15 | 0.140 | 18 x 40 | 12.8 | CECA2R7506Q180040E | |
| 60 | 22 | 15 | 0.140 | 18 x 40 | 13 | CECA2R7606Q180040E | |
| 70 | 20 | 14 | 0.160 | 18 x 50 | 15 | CECA2R7706Q180050E | |
| 100 | 18 | 12 | 0.180 | 18 x 60 | 20 | CECA2R7107Q180060E | |
Features
⚫ Lower ESR
⚫ Low temperature
⚫ Consumer electronic
⚫ Pulse power
⚫ Hold-up power
⚫ Rohs Compliant
