MTBF test report of tantalum capacitor for avionics & defense

MTBF test report of tantalum capacitor for avionics & defense

Jinpei had successfully R&D strictest & NASA military grade the CBFBseries tantalum capacitor that match MTBF test for filter application on military field

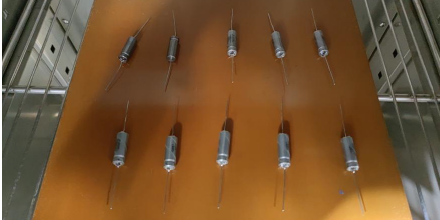

Jinpei Brand Hermetic seal non-solid axial leads tantalum capacitor-CBFBA887M2AT4(880uF 100V) alternative Evans HC4D100881S,Vishay STE series

Electrical parameters after MTBF test as below:
Test condition: 2,000hours, rated voltage 100V, 85℃, 100Hz

1) Capacitance within 880uf, (capacitance not exceeding specific +10% -15%)

2) DCL @25C max 35uA, (DCL value not exceeding specific 125%)

3) DCL @85C 200uA, (DCL value not exceeding specific 125%)

4) ESR max 0.6ohm @100Hz, (ESR not exceeding specific +/-20%)

5) (Dissipation Factor remain with specific)
