Micro MINI Electrolytic Capacitors ▏85℃ 1,000Hrs ▏CAZF

FEATURES
85°C, 1000 hours assured.
Standard micro miniature size with 5mm height.

Item	Performance
Operating Temperature Range	~40°C ~+85°C
Capacitance Tolerance	±20% (120Hz, 20°C)
LeakageCurrent (at 20°C)	I = 0.01CV or 3 (µA) whichever is greater (after 2 minutes) Where, C = rated capacitance in µF, V = rated DC working voltage in V.
Dissipation Factor Tan at 120Hz, 20°C)	Rated Voltage	4	6.3		10	16	25		35	50
	Tan (max)	0.35	0.25		0.20	0.17	0.15		0.13	0.10
Low Temperature Characteristics (at 120Hz)	Rated Voltage	4	6.3		10	16	25		35	50	Impendance ratio shall not exceed the values given in this table.
	Impendance Ratio	7	6		4	3	2		2	2
		15	12		8	6	4		4	4
Load Life Test at 20°C (after rated voltage is applied at 85°C for 2000/3000 hours)	Test Time	1000 hours						Shelf Life Test at 20°C after exposure to 85 for 1000 hours with no voltage				Test Time	1000 hours
	Capacitance Change	Within ± 20% of inital value										Capacitance Change	Within ± 20% of inital value
	Dissipation Factor	Less than 200% of specified value										Dissipation Factor	Less than 200% of specified value
	Leakage Current	Within specified value										Leakage Current	Within specified value
Ripple Current & Frequency Multipliers	Cap.( F) Freq.(Hz )	60 (50)		120		500		1K		10K up
	Under 33	0.75		1.00		1.15		1.34		1.50
	47 to 220	0.80		1.00		1.08		1.20		1.30
Ripple Current & Temperature Multipliers	Temperature(°C)	Under 50		70		85
	Multipliers	1.27		1.27		1.00
Standards	Satisfies Characteristic W of JIS C 5141

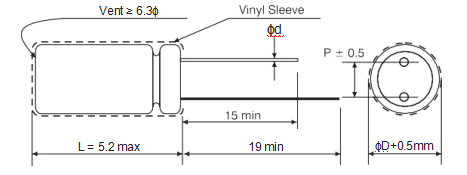

Dimension: fD×L(mm); Ripple Current: mA/RMS at 120Hz 85°C

CAZF 0R1 M 1H SA 040 050

FEATURES

◆ 85°C, 1000 hours assured.
◆ Standard micro miniature size with 5mm height.
◆ RoHS Compliance
