Metallized Polypropylene Film Capacitor | Double | CDBB - Specializing in capacitor production since 2005.

Metallized Polypropylene Film Capacitor | Double | CDBB

FEATURES

◆High moisture resistance
◆Rated voltage : 250~2000Vdc (180~700Vac)
◆Capacitance range : 0.00022 ~3.9 uF
◆Flame-retardant epoxy resin (Compliant to UL 94V-0)
◆RoHS Compliant and lead-free terminations
For high dv/dt application

Datasheet-For-Metallized-Polypropylene-Film-Capacitor-Double-CDBB.pdf (762 downloads)

FEATURES

◆ High moisture resistance
◆ Rated voltage : 250~2000Vdc(180~700Vac)
◆ Capacitance range : 0.00022 ~3.9uF
◆ Flame-retardant epoxy resin (Compliant to UL 94V-0)
◆ RoHS Compliant and lead-freeterminations
◆ For high dv/dt application

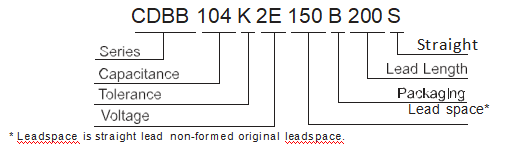

PART NUMBER EXAMPLE

ELECTRICAL CHARACTERISTICS

Items

Performance

Operating Voltage Range

250Vdc ~ 2,000Vdc

Rated Temperature

-40°C ~ +105°C (Derates over 85°C at 1.25% per °C)

Climatic Category

40 / 105 / 56

Capacitance Range

0.00022 µF ~ 3.9µF

Capacitance Tolerance

±5% (J), ±10% (K), other tolerances on request

Dissipation Factor (tan fiÅ

C ≤0.1µF

0.1µF < C ≤ 1.0µF

C > 1.0µF

1KHz, 20°C

0.0003

1KHz, 20°C

0.0004

0.0006

—

100KHz, 20°C

0.0015

—

Insulation Resistance

Measured at 20°C, 100Vdc for 1 minute

Minimum Value Between Terminals
Cr ≤ 0.33 µF	IR ≥ 100,000 MΩ
Cr > 0.33 µF	IR ≥ 30,000 MΩ • µF
Minimum Value Between Terminals and Case
	IR ≥ 30,000 MΩ

RATINGS & DIMENSIONS (mm)

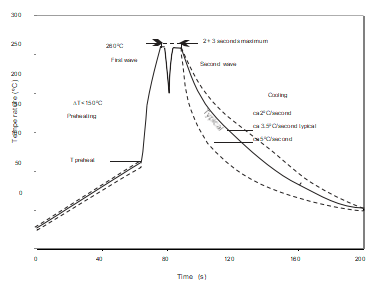

Wave Soldering Recommendations

(μF)	Workin g Voltage	250Vdc (2E)						400Vdc (2G)						630Vdc (2J)
	Workin g Voltage	180Vac						250Vac						400Vac
	Code	W	H	T	P	dø	dv/dt	W	H	T	P	dø	dv/dt	W	H	T	P	dø	dv/dt
0.01	103													13.0	11.0	5.0	10.0	0.6	3,000
0.012	123													13.0	11.0	5.0	10.0	0.6	3,000
0.015	153													13.0	12.0	6.0	10.0	0.6	3,000
0.018	183													18.0	11.0	5.0	15.0	0.8	2,500
0.022	223													18.0	11.0	5.0	15.0	0.8	2,500
0.027	273							13.0	11.0	5.0	10.0	0.6	1,400	18.0	11.0	5.0	15.0	0.8	2,500
0.033	333							13.0	11.0	5.0	10.0	0.6	1,400	18.0	12.0	6.0	15.0	0.8	2,500
0.039	393							13.0	12.0	6.0	10.0	0.6	1,400	18.0	12.0	6.0	15.0	0.8	2,500
0.047	473	13.0	11.0	5.0	10.0	0.6	1,000	18.0	11.0	5.0	15.0	0.8	1,000	18.0	12.0	6.0	15.0	0.8	2,500
0.056	563	13.0	11.0	5.0	10.0	0.6	1,000	18.0	11.0	5.0	15.0	0.8	1,000	26.5	15.0	6.0	22.5	0.8	1,800
0.068	683	13.0	12.0	6.0	10.0	0.6	1,000	18.0	12.0	6.0	15.0	0.8	1,000	26.5	15.0	6.0	22.5	0.8	1,800
0.082	823	18.0	11.0	5.0	15.0	0.8	600	18.0	12.0	6.0	15.0	0.8	1,000	26.5	15.0	6.0	22.5	0.8	1,800
0.1	104	18.0	11.0	5.0	15.0	0.8	600	18.0	13.5	7.5	15.0	0.8	1,000	26.5	15.0	6.0	22.5	0.8	1,800
0.12	124	18.0	12.0	6.0	15.0	0.8	600	18.0	13.5	7.5	15.0	0.8	1,000	26.5	16.0	7.0	22.5	0.8	1,800
0.15	154	18.0	12.0	6.0	15.0	0.8	600	26.5	15.0	6.0	22.5	0.8	600	26.5	17.0	8.5	22.5	0.8	1,800
0.18	184	18.0	13.5	7.5	15.0	0.8	600	26.5	15.0	6.0	22.5	0.8	600	32.0	18.0	9.0	27.5	0.8	1,100
0.22	224	18.0	13.5	7.5	15.0	0.8	600	26.5	16.0	7.0	22.5	0.8	600	32.0	18.0	9.0	27.5	0.8	1,100
0.27	274	18.0	14.5	8.5	15.0	0.8	600	26.5	17.0	8.5	22.5	0.8	600	32.0	18.0	9.0	27.5	0.8	1,100
0.33	334	18.0	16.0	10.0	15.0	0.8	600	26.5	17.0	8.5	22.5	0.8	600	32.0	20.0	11.0	27.5	0.8	1,100
0.39	394	26.5	16.0	7.0	22.5	0.8	400	26.5	18.5	10.0	22.5	0.8	600	32.0	20.0	11.0	27.5	0.8	1,100
0.47	474	26.5	16.0	7.0	22.5	0.8	400	32.0	18.0	9.0	27.5	0.8	500	32.0	22.0	13.0	27.5	0.8	1,100
0.56	564	26.5	17.0	8.5	22.5	0.8	400	32.0	20.0	11.0	27.5	0.8	500	32.0	22.0	13.0	27.5	0.8	1,100
0.68	684	26.5	18.5	10.0	22.5	0.8	400	32.0	20.0	11.0	27.5	0.8	500	32.0	24.5	15.0	27.5	0.8	1,100
0.82	824	26.5	18.5	10.0	22.5	0.8	400	32.0	22.0	13.0	27.5	0.8	500	32.0	28.0	14.0	27.5	0.8	1,100
1	105	32.0	20.0	11.0	27.5	0.8	300	32.0	24.5	15.0	27.5	0.8	500	32.0	33.0	18.0	27.5	0.8	1,100
1.2	125	32.0	20.0	11.0	27.5	0.8	300	32.0	24.5	15.0	27.5	0.8	500	32.0	33.0	18.0	27.5	0.8	1,100
1.5	155	32.0	22.0	13.0	27.5	0.8	300	32.0	33.0	18.0	27.5	0.8	500	continue ……
1.8	185	32.0	24.5	15.0	27.5	0.8	300	32.0	33.0	18.0	27.5	0.8	500
2.2	225	32.0	24.5	15.0	27.5	0.8	300
2.7	275	32.0	33.0	18.0	27.5	0.8	300
3.3	335	32.0	33.0	18.0	27.5	0.8	300
3.9	395	32.0	33.0	18.0	27.5	0.8	300

RATINGS & DIMENSIONS (mm)

( F)	Workin g Voltage	1000VDC(3A)						1600Vdc (3C)						2000Vdc (3D)
	Workin g Voltage	600Vac						650Vac						700Vac
	Code	W	H	T	P	dø	dv/dt	W	H	T	P	dø	dv/dt	W	H	T	P	dø	dv/dt
0.00022	221													18.0	11.0	5.0	15.0	0.8	10,000
0.00027	271													18.0	11.0	5.0	15.0	0.8	10,000
0.00033	331													18.0	11.0	5.0	15.0	0.8	10,000
0.00047	471													18.0	11.0	5.0	15.0	0.8	10,000
0.00056	561													18.0	11.0	5.0	15.0	0.8	10,000
0.00068	681							18.0	11.0	5.0	15.0	0.8	6,000	18.0	11.0	5.0	15.0	0.8	10,000
0.00082	821							18.0	11.0	5.0	15.0	0.8	6,000	18.0	11.0	5.0	15.0	0.8	10,000
0.001	102							18.0	11.0	5.0	15.0	0.8	6,000	18.0	11.0	5.0	15.0	0.8	10,000
0.0012	122							18.0	11.0	5.0	15.0	0.8	6,000	18.0	11.0	5.0	15.0	0.8	10,000
0.0015	152							18.0	11.0	5.0	15.0	0.8	6,000	18.0	11.0	5.0	15.0	0.8	10,000
0.0018	182							18.0	11.0	5.0	15.0	0.8	6,000	18.0	11.0	5.0	15.0	0.8	10,000
0.0022	222							18.0	11.0	5.0	15.0	0.8	6,000	18.0	11.0	5.0	15.0	0.8	10,000
0.0027	272							18.0	11.0	5.0	15.0	0.8	6,000	18.0	11.0	5.0	15.0	0.8	10,000
0.0033	332							18.0	11.0	5.0	15.0	0.8	6,000	18.0	11.0	5.0	15.0	0.8	10,000
0.0039	392	13.0	11.0	5.0	10.0	0.6	6,000	18.0	11.0	5.0	15.0	0.8	6,000	18.0	11.0	5.0	15.0	0.8	10,000
0.0047	472	13.0	11.0	5.0	10.0	0.6	6,000	18.0	11.0	5.0	15.0	0.8	6,000	18.0	11.0	5.0	15.0	0.8	10,000
0.0056	562	13.0	12.0	6.0	10.0	0.6	6,000	18.0	11.0	5.0	15.0	0.8	6,000	18.0	13.5	7.5	15.0	0.8	10,000
0.0068	682	13.0	12.0	6.0	10.0	0.6	6,000	18.0	11.0	5.0	15.0	0.8	6,000	18.0	13.5	7.5	15.0	0.8	10,000
0.0082	822	18.0	11.0	5.0	15.0	0.8	3,300	18.0	12.0	6.0	15.0	0.8	6,000	26.5	15.0	6.0	22.5	0.8	5,000
0.01	103	18.0	11.0	5.0	15.0	0.8	3,300	18.0	12.0	6.0	15.0	0.8	6,000	26.5	15.0	6.0	22.5	0.8	5,000
0.012	123	18.0	11.0	5.0	15.0	0.8	3,300	18.0	13.5	7.5	15.0	0.8	6,000	26.5	15.0	6.0	22.5	0.8	5,000
0.015	153	18.0	11.0	5.0	15.0	0.8	3,300	18.0	13.5	7.5	15.0	0.8	6,000	26.5	16.0	7.0	22.5	0.8	5,000
0.018	183	18.0	13.5	7.5	15.0	0.8	3,300	18.0	14.5	8.5	15.0	0.8	6,000	26.5	16.0	7.0	22.5	0.8	5,000
0.022	223	18.0	13.5	7.5	15.0	0.8	3,300	18.0	14.5	8.5	15.0	0.8	6,000	26.5	17.0	8.5	22.5	0.8	5,000
0.027	273	18.0	14.5	8.5	15.0	0.8	3,300	26.5	15.0	6.0	22.5	0.8	3,000	26.5	18.5	10.0	22.5	0.8	5,000
0.033	333	26.5	15.0	6.0	22.5	0.8	2,100	26.5	16.0	7.0	22.5	0.8	3,000	26.5	18.5	10.0	22.5	0.8	5,000
0.039	393	26.5	15.0	6.0	22.5	0.8	2,100	26.5	17.0	8.5	22.5	0.8	3,000	26.5	22.0	12.0	22.5	0.8	5,000
0.047	473	26.5	16.0	7.0	22.5	0.8	2,100	26.5	18.5	10.0	22.5	0.8	3,000	32.0	20.0	11.0	27.5	0.8	2,200
0.056	563	26.5	16.0	7.0	22.5	0.8	2,100	26.5	18.5	10.0	22.5	0.8	3,000	32.0	22.0	13.0	27.5	0.8	2,200
0.068	683	26.5	17.0	8.5	22.5	0.8	2,100	26.5	22.0	12.0	22.5	0.8	3,000	32.0	22.0	13.0	27.5	0.8	2,200
0.082	823	26.5	18.5	10.0	22.5	0.8	2,100	32.0	20.0	11.0	27.5	0.8	2,000	32.0	24.5	15.0	27.5	0.8	2,200
0.1	104	26.5	18.5	10.0	22.5	0.8	2,100	32.0	20.0	11.0	27.5	0.8	2,000	32.0	28.0	14.0	27.5	0.8	2,200
0.12	124	32.0	20.0	11.0	27.5	0.8	1,300	32.0	22.0	13.0	27.5	0.8	2,000	32.0	33.0	18.0	27.5	0.8	2,200
0.15	154	32.0	20.0	11.0	27.5	0.8	1,300	32.0	24.5	15.0	27.5	0.8	2,000	32.0	33.0	18.0	27.5	0.8	2,200
0.18	184	32.0	22.0	13.0	27.5	0.8	1,300	32.0	24.5	15.0	27.5	0.8	2,000
0.22	224	32.0	22.0	13.0	27.5	0.8	1,300	32.0	33.0	18.0	27.5	0.8	2,000
0.27	274	32.0	24.5	15.0	27.5	0.8	1,300	32.0	33.0	18.0	27.5	0.8	2,000
0.33	334	32.0	28.0	14.0	27.5	0.8	1,300	32.0	33.0	18.0	27.5	0.8	2,000
0.39	394	32.0	33.0	18.0	27.5	0.8	1,300
0.47	474	32.0	33.0	18.0	27.5	0.8	1,300

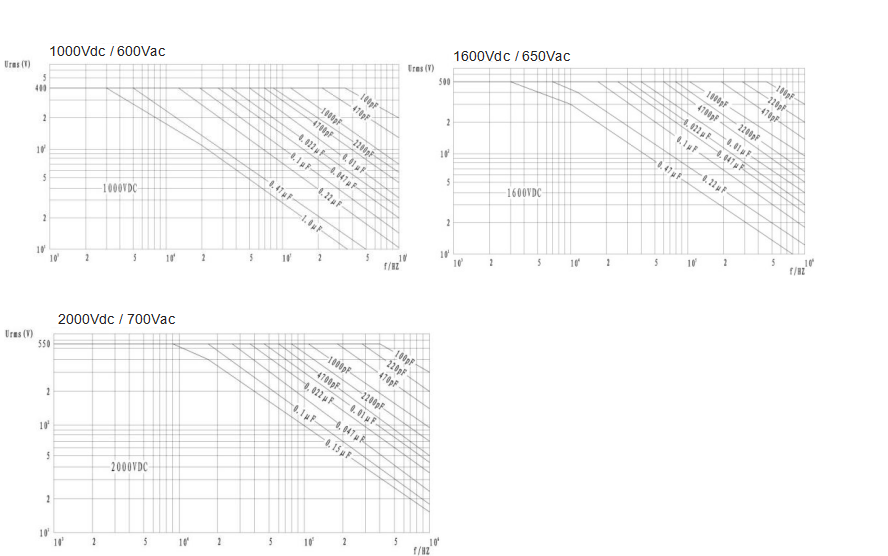

Vrms vs. Frequency, typical value

RADIAL TAPING CODE DIAGRAM

Fig. 4 Box or Expoxy Coated

F=10 = Ammo Only

F=15 Every other space skipped because

of Larger body – Ammo Only

(RT3 or RT4)

Description	Letter	Dimension (mm)
Description	Letter	RT4	Tol.
Lead Wire Diameter	d	0.6 / 0.8	± 0.05
Tape Pitch	P	25.4	± 1
Feed Hole Pitch	PO	12.7	± 0.2
Centering of the Lead Wire	P1	5.2	± 0.7
Centering of the Body	P2	12.7	± 1.3
Lead Spacing (Pitch)	F	15	+ 0.6; -0.1
Component Alignment	Δh	0	± 2
Height of Componenet from Tape Center	H	18.5	± 0.5
Carrier Tape Width	W	18	+ 1; -0.5
Hold Down Tape Width	WO	10	Min
Hole Position	W1	9	± 0.5
Hold Down Tape Position	W2	3	Max
Feed Hole Diameter	Do	4	± 0.2
Tape Thickness	t	0.5	± 0.2
Figure	fig	4

Remark: *Allowance of accumulated pitch less than 1mm at the sum of 20 pitches.

*Continuous empty component less than 3 consecutive pieces.

*Total empty on one reel less than 1%.

INTRODUCTION
CDBB Series are constructed specifically for Power Factor Correction (PFC) applications. Film was selected and metalization applied specifically for high dv/dt application
