INTRODUCTION

CDAD Series are constructed specifically for active filtering circuits like those used in power factor correction applications.

Datasheet-For-Metallized-Polyester-Film-Capacitor-Ultra-Mini-Size-CDAD.pdf (755 downloads)

FEATURES

◆ Operating Temp. Range :-40°C~105°C (V R Derates 1.25% per °C over85°C)
◆ Capacitance Range:0.1~10uF
◆ Capacitance Tolerance: J=5% K=10% M=20%
◆ Rated Voltage V R 85°C: 100V 250V 400V 630V
◆ Dissipation Factor: 1% MAX @1KHZ 25℃

PART NUMBER EXAMPLE

SPECIFICATIONS

Items	Performance
Operating Voltage Range	450Vdc, 630Vdc
Rated Temperature	-40 °C ~ +85°C
Usable Upper Category Temperature	+110°C (Derating ratio of rated voltage over +85 °C ~ +110°C: 1.5% per °C of Rated Voltage)
Capacitance Range	0.033 µF ~ 3.3 µF
Capacitance Tolerance	+2% (G), +5% (J), +10% (K)
Dissipation Factor	1.0% (max.) at 1KHz 1.6% (max.) at 10KHz
Insulation Resistance Terminal to Terminal	Voltage Charge: 100Vdc x 1min (at 20 °C+5°C) > 9,000MΏ for C < 0.33µF > 3,000MΏ x µF for C >0.33µF
Withstand Voltage	Terminal to Terminal:(at 20 °C + 5°C)
	1.6 x VR applied for 2sec. (cut off current 10mA)
	Slow-up voltage speed: 100V/sec
Rated Voltage Pulse Slope dV/dt (V/µs)	P VR	10mm	15mm	22.5mm
	450Vdc	110	45	20
	630Vdc	160	65	30

PERFORMANCE

Item	Test Methods	Requirements
Resistance to Soldering Heat IEC 60068-2-20″	Solder Bath: 260°C+ 5°C Immersion Time: 10sec + 1sec	Capacitance Change \|ΔC/C\| :<2% DF Change tanδ: 0.5% at 1KHz IR: > limit value
Resistance to Vibration IEC 60068-2-6″	Frequency Range: 10Hz to 55Hz Amplitude: 1.5m/m Duration: 6 hours	There shall be no Visible Damage, No Intermittent Contact, No Open or Short Circuit
Damp Heat, Steady State IEC 60068-2-3″	Temperature: 40°C + 2°C Relative Humidity: 90% to 95% Duration: 1,000 hours	Capacitance Change \|ΔC/C \|: <5% DF Change tanδ: 0.5% at 1KHz IR: > 50% limit value
Electrical Endurance IEC 60384-2″	Temperature: 85°C + 2°C Voltage Applied: 1.10 x Vr(DC) Duration: 1,000 hours	Capacitance Change \|ΔC/C \|: <5% DF Change tanδ: 0.5% at 1KHz IR: > 50% limit value

MAXIMUM DIMENSIONS (mm)

R.V.	450Vdc (2W)
Siz e	W	H	T	P	dΦ	Siz e	W	H	T	P	dΦ
(µF)						(µF)
0.047	13.0	13	5	10	0.6	1.0	13	19	8	10	0.8
0.068	12.5	10	5	10	0.6		18.0	17	7.5	15	0.8
0.1	12.5	9.5	4.5	10	0.6		26.0	16	7	22.5	0.8
0.1	18.0	11	5	15	0.8	1.2	18.0	18	8	15	0.8
0.15	12.5	12	4.5	10	0.6	1.5	13.0	21.5	9.5	10	0.8
0.22	12.5	12	6.5	10	0.6		18.0	18.5	8.5	15	0.8
0.22	18.0	11.5	6	15	0.8		26.0	17.5	7	22.5	0.8
0.33	12.5	12	6	10	0.6	2.2	18.0	21.5	11.5	15	0.8
0.33	18.0	13	5	15	0.8	2.2	26.0	19	9	22.5	0.8
0.47	12.5	15.5	6.5	10	0.6	3.3	26.0	23.5	13	22.5	0.8
0.47	18.0	13	5.5	15	0.8
0.68	12.5	16	7.5	10	0.6
0.68	18.0	15.5	5.5	15	0.8

R.V.	630Vdc (2J)
Siz e	W	H	T	P	dΦ
(µF)
0.033	12.5	10.5	4.5	10	0.6
0.047	12.5	13	5	10	0.6
0.047	18.0	11	5	15	0.8
0.068	13.0	13	6	10	0.6
0.068	18.0	11	5	15	0.8
0.1	12.5	16	6	10	0.6
0.1	18.0	11	5	15	0.8
0.22	18.0	13	5	15	0.8
0.33	18.0	13	5	15	0.8
0.47	18.0	17.5	9	15	0.8
0.68	18.0	20.5	10.5	15	0.8
1.0	26.0	20.5	9.5	22.5	0.8

RATED VOLTAGE (Vrms) VS. FREQUENCY

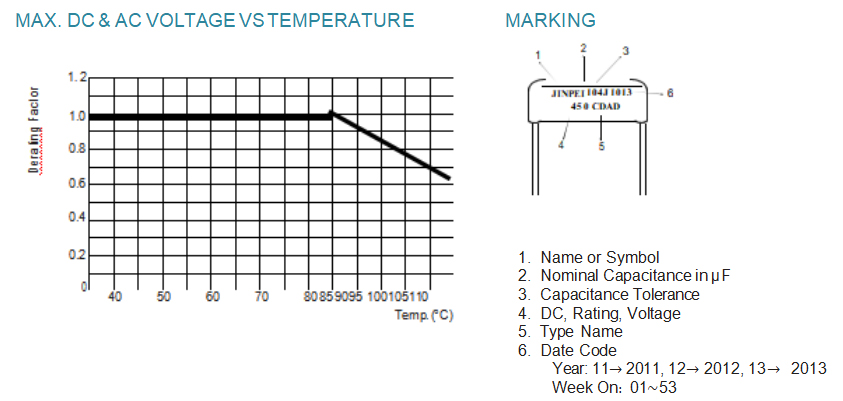

MAX. DC & AC VOLTAGE VS TEMPERATURE

MAXIMUM CURRENT, AMPS (rms)

450Vdc / 200Vac

CAP (µF)	P	15.75 KHz	35 KHz	45 KHz	65 KHz	80 KHz	100 Khz
0.047	10	0.18	0.20	0.21	0.23	0.24	0.25
0.068	10	0.20	0.22	0.23	0.24	0.25	0.26
0.1	10	0.36	0.46	0.50	0.56	0.60	0.64
0.1	15	0.15	0.17	0.19	0.20	0.21	0.22
0.15	10	0.40	0.48	0.53	0.58	0.62	0.66
0.22	10	0.45	0.57	0.61	0.69	0.73	0.78
0.22	15	0.18	0.19	0.20	0.21	0.22	0.23
0.33	10	0.48	0.60	0.65	0.72	0.74	0.80
0.33	15	0.77	0.97	1.05	1.17	1.25	1.32
0.47	10	0.50	0.70	0.80	0.90	1.00	1.10
0.47	15	0.67	0.88	0.99	1.06	1.17	1.31
0.68	10	0.60	0.90	1.00	1.10	1.20	1.30
0.68	15	0.88	1.13	1.24	1.41	1.48	1.63
1.0	10	0.80	1.20	1.30	1.50	1.60	1.80
1.0	15	1.06	1.38	1.59	1.77	1.84	1.91
1.2	15	1.20	1.50	1.65	1.85	2.00	2.20
1.5	10	0.98	1.30	1.40	1.60	1.70	1.90
	15	1.40	1.70	1.80	2.00	2.20	2.40
	22.5	1.38	1.68	1.78	1.96	2.00	2.04
2.2	15	1.70	2.00	2.20	2.35	2.50	2.70
2.2	22.5	2.30	2.37	2.43	2.52	2.55	2.60
3.3	22.5	2.65	2.69	2.80	2.81	2.82	2.90

MAXIMUM CURRENT, AMPS (rms)

630Vdc / 250Vac

CAP (µF)	P	15.75 KHz	35 KHz	45 KHz	65 KHz	80 KHz	100 KHz
0.033	10	0.14	0.20	0.22	0.25	0.27	0.30
0.047	10	0.18	0.24	0.30	0.35	0.39	0.42
0.068	10	0.21	0.29	0.32	0.37	0.41	0.44
0.1	10	0.25	0.37	0.45	0.50	0.55	0.63
0.047	15	0.16	0.22	0.24	0.27	0.30	0.32
0.068	15	0.23	0.26	0.32	0.35	0.40	0.44
0.1	15	0.42	0.55	0.58	0.65	0.69	0.73
0.22	15	0.58	0.62	0.67	0.78	0.80	0.85
0.33	15	0.91	1.15	1.25	1.40	1.48	1.58
0.5	15	0.85	1.08	1.18	1.30	1.40	1.49
0.68	15	1.16	1.48	1.60	1.80	1.90	2.05
1.0	22.5	1.85	2.25	2.36	2.60	2.70	2.85

PACKAGING CODE

Metho d	Bulk	Ammo	Reel
Code	B	A	R

LEAD LENGTH FROM SEATING PLANE

mm	5	10	15	20	25
Code	050	100	150	200	250

TAPE CODE (Lead spacing of tape, if taped)

Spacing	10mm	15mm
Packing	A	A
Code	RT3	RT4

LEAD STYLE CODE EXAMPLE

INTRODUCTION
CDAC Series are constructed with metalized polyester film dielectric, copperply lead and epoxy resin coating. They are suitable for blocking, coupling, decoupling, filtering, bypass timing circuit and ideal for use in data / telecomm equipment, industrial instrument, automatic control systems and other general electronic application.
