Metallized Polyester Film Capacitor Mini Size | CDAF
CDAF Series are constructed with metalized polyester film dielectric, copperply lead and epoxy resin powder coating. They are suitable for blocking, coupling, decoupling, filtering, bypass timing circuit and ideal for use in telecommunication equipment, data processing equipment, industrial instrument, automatic control systems and other general electronic equipment.
FEATURES
◆ Operating Temp. Range :-40°C ~ +125°C (Derates over 105°C)
◆ Capacitance Range:0.001~1.2uF
◆ Capacitance Tolerance: J=5% K=10% M=20%
◆ Rated Voltage V R 85°C: 50V, 63V,100Vdc, 250Vdc, 400Vdc, 450Vdc, 630Vdc,1000Vdc

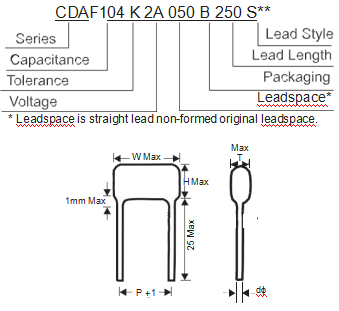

PART NUMBER EXAMPLE
TOLERANCE
| Code | Tolerance |
| J | ±5% |
| K | ±10% |
| M | ±20% |
LEAD STYLE EXAMPLES
CAPACITANCE CODE
| F | 0.01 | 0.047 | 0.1 | 0.47 | 1.0 |
| pF | 10000 | 47000 | 100000 | 470000 | – |
| Code | 103 | 473 | 104 | 474 | 105 |
RATED VOLTAGE
| WV | 50 | 63 | 100 | 250 | 400 | 630 |
| Code | 1H | 1J | 2A | 2E | 2G | 2J |
PACKAGING
| Meth | od | Bulk | Ammo | Reel |
| Code | B | A | R | |
LEAD LENGTH FROM SEATING PLANE
(Bulk Pack)
| mm | 5 | 10 | 15 | 20 | 25 |
| Code | 050 | 100 | 150 | 200 | 250 |
TAPE CODE (Lead spacing of tape)
| Spacin | g | 5mm |
| Packing | A or R | |
| Code | RT1 (See Diagram) | |
LEAD STYLE
| Code | Style |
| S | Straight |
| K | Kink-In (Stand Off) |
| F | Form Out |
| I | Form In |
** For Bulk packaging with formed leads, add an additional 3 digit lead spacing code at end of part number.
MAXIMUM DIMENSIONS (mm)
| W. V. | 50 / 63VDC (1H/1J) | 100VDC(2A) | 250VDC(2E) | 400VDC(2G) | 630VDC (2J) | ||||||||||||||||||||
| ( μF) | code | W | H | T | P | d | W | H | T | P | d | W | H | T | P | d | W | H | T | P | d | W | H | P | d |
| 0.001 | 102 | 6.5 | 6.5 | 3.5 | 5 | 0.5 | 6.5 | 6.5 | 3.5 | 5 | 0.5 | 6.5 | 6.5 | 3.5 | 5 | 0.5 | 6.5 | 6.5 | 3.5 | 5 | 0.5 | 6.5 | 6.5 | 5 | 0.5 |
| 0.0022 | 122 | 6.5 | 6.5 3.5 5 | 0.5 | 6.5 | 6.5 | 3.5 | 5 | 0.5 | 6.5 | 6.5 | 3.5 | 5 | 0.5 | 6.5 | 6.5 | 3.5 | 5 | 0.5 | 6.5 | 6.5 | 5 | 0.5 | ||
| 0.0033 | 332 | 6.5 | 6.5 | 3.5 | 5 | 0.5 | 6.5 | 6.5 | 3.5 | 5 | 0.5 | 6.5 | 6.5 | 3.5 | 5 | 0.5 | 6.5 | 6.5 | 3.5 | 5 | 0.5 | 6.5 | 6.5 | 5 | 0.5 |
| 0.0047 | 472 | 6.5 | 6.5 | 3.5 | 5 | 0.5 | 6.5 | 6.5 | 3.5 | 5 | 0.5 | 6.5 | 6.5 | 3.5 | 5 | 0.5 | 6.5 | 6.5 | 3.5 | 5 | 0.5 | 6.5 | 6.5 | 5 | 0.5 |
| 0.0056 | 562 | 6.5 | 6.5 | 3.5 | 5 | 0.5 | 6.5 | 6.5 | 3.5 | 5 | 0.5 | 6.5 | 6.5 | 3.5 | 5 | 0.5 | 6.5 | 6.5 | 3.5 | 5 | 0.5 | ||||
| 0.0068 | 682 | 6.5 | 6.5 | 3.5 | 5 | 0.5 | 6.5 | 6.5 | 3.5 | 5 | 0.5 | 6.5 | 6.5 | 3.5 | 5 | 0.5 | 6.5 | 6.5 | 3.5 | 5 | 0.5 | ||||
| 0.0082 | 822 | 6.5 | 6.5 | 3.5 | 5 | 0.5 | 6.5 | 6.5 | 3.5 | 5 | 0.5 | 6.5 | 6.5 | 3.5 | 5 | 0.5 | 6.5 | 6.5 | 3.5 | 5 | 0.5 | ||||
| 0.010 | 103 | 6.5 | 6.5 | 4.0 | 5 | 0.5 | 6.5 | 6.5 | 4.0 | 5 | 0.5 | 6.5 | 6.5 | 3.5 | 5 | 0.5 | 6.5 | 6.5 | 3.5 | 5 | 0.5 | ||||
| 0.012 | 123 | 6.5 | 6.5 | 4.0 | 5 | 0.5 | 6.5 | 6.5 | 4.0 | 5 | 0.5 | 6.5 | 6.5 | 3.5 | 5 | 0.5 | |||||||||
| 0.015 | 153 | 6.5 | 6.5 | 4.0 | 5 | 0.5 | 6.5 | 6.5 | 4.0 | 5 | 0.5 | 6.5 | 6.5 | 3.5 | 5 | 0.5 | |||||||||
| 0.018 | 183 | 6.5 | 6.5 | 4.0 | 5 | 0.5 | 6.5 | 6.5 | 4.0 | 5 | 0.5 | 6.5 | 6.5 | 3.5 | 5 | 0.5 | |||||||||
| 0.022 | 223 | 6.5 | 6.5 | 4.0 | 5 | 0.5 | 6.5 | 6.5 | 4.0 | 5 | 0.5 | 6.5 | 6.5 | 3.5 | 5 | 0.5 | |||||||||
| 0.027 | 273 | 6.5 | 6.5 | 4.0 | 5 | 0.5 | 6.5 | 6.5 | 4.0 | 5 | 0.5 | 7.5 | 9.5 | 3.5 | 5 | 0.5 | |||||||||
| 0.033 | 333 | 6.5 | 6.5 | 4.0 | 5 | 0.5 | 6.5 | 6.5 | 4.0 | 5 | 0.5 | 7.5 | 9.5 | 4.5 | 5 | 0.5 | |||||||||
| 0.039 | 393 | 6.5 | 6.5 | 4.0 | 5 | 0.5 | 6.5 | 6.5 | 4.0 | 5 | 0.5 | 7.5 | 9.5 | 4.5 | 5 | 0.5 | |||||||||
| 0.047 | 473 | 6.5 | 6.5 | 4.0 | 5 | 0.5 | 6.5 | 6.5 | 4.0 | 5 | 0.5 | 7.5 | 9.5 | 4.5 | 5 | 0.5 | |||||||||
| 0.056 | 563 | 6.5 | 6.5 | 4.0 | 5 | 0.5 | 6.5 | 6.5 | 4.0 | 5 | 0.5 | 7.5 | 9.5 | 4.5 | 5 | 0.5 | |||||||||
| 0.068 | 683 | 6.5 | 6.5 | 4.0 | 5 | 0.5 | 6.5 | 6.5 | 4.0 | 5 | 0.5 | 7.5 | 9.5 | 4.5 | 5 | 0.5 | |||||||||
| 0.082 | 823 | 6.5 | 6.5 | 4.0 | 5 | 0.5 | 6.5 | 6.5 | 4.0 | 5 | 0.5 | 7.5 | 9.5 | 4.5 | 5 | 0.5 | |||||||||
| 0.1 | 104 | 6.5 | 6.5 | 4.5 | 5 | 0.5 | 6.5 | 6.5 | 4.5 | 5 | 0.5 | 7.5 | 9.5 | 4.5 | 5 | 0.5 | |||||||||
| 0.12 | 124 | 6.5 | 6.5 | 4.5 | 5 | 0.5 | 6.5 | 6.5 | 4.5 | 5 | 0.5 | 7.5 | 10 | 5.0 | 5 | 0.5 | |||||||||
| 0.15 | 154 | 6.5 | 6.5 | 4.5 | 5 | 0.5 | 6.5 | 6.5 | 4.5 | 5 | 0.5 | 7.5 | 10 | 5.0 | 5 | 0.5 | |||||||||
| 0.18 | 184 | 6.5 | 6.5 | 4.5 | 5 | 0.5 | 6.5 | 6.5 | 4.5 | 5 | 0.5 | 7.5 | 10 | 6.0 | 5 | 0.5 | |||||||||
| 0.22 | 224 | 6.5 | 6.5 | 4.5 | 5 | 0.5 | 6.5 | 6.5 | 4.5 | 5 | 0.5 | 7.5 | 10 | 6.0 | 5 | 0.5 | |||||||||
| 0.27 | 274 | 6.5 | 6.5 | 4.5 | 5 | 0.5 | 6.5 | 6.5 | 4.5 | 5 | 0.5 | 7.5 | 10.5 | 7.0 | 5 | 0.5 | |||||||||
| 0.33 | 334 | 6.5 | 6.5 | 4.5 | 5 | 0.5 | 6.5 | 6.5 | 4.5 | 5 | 0.5 | 7.5 | 11 | 7.0 | 5 | 0.5 | |||||||||
| 0.39 | 394 | 6.5 | 6.5 | 4.5 | 5 | 0.5 | 6.5 | 6.5 | 4.5 | 5 | 0.5 | 7.5 | 12 | 8.0 | 5 | 0.5 | |||||||||
| 0.47 | 474 | 7.0 | 7.5 | 4.5 | 5 | 0.6 | 7.0 | 7.5 | 4.5 | 5 | 0.6 | 7.5 | 12 | 8.5 | 5 | 0.5 | |||||||||
| 0.56 | 564 | 7.0 | 8.5 | 5.0 | 5 | 0.6 | 7.0 | 8.5 | 5.0 | 5 | 0.6 | ||||||||||||||
| 0.68 | 684 | 7.0 | 8.5 | 5.0 | 5 | 0.6 | 7.0 | 8.5 | 5.0 | 5 | 0.6 | ||||||||||||||
| 1.0 | 824 | 7.0 | 8.5 | 5.0 | 5 | 0.6 | 7.0 | 10 | 6.0 | 5 | 0.6 | ||||||||||||||
| 1.5 | 155 | 7.0 | 10.0 | 6.5 | 5 | 0.5 | 7.0 | 10 | 6.0 | 5 | 0.6 | 17 | 15 | 7.0 | 15 | 0.8 | |||||||||
| 2.2 | 225 | 7.0 | 10.0 | 6.5 | 5 | 0.6 | 7.0 | 10.5 | 7.0 | 5 | 0.6 | 17 | 15.5 | 6.5 | 15 | 0.8 | |||||||||
PERFORMANCE
| Item | Metalized Polyester |
| Capacitance Drift | Cycled through the operating temperature range 2%. |
| Humidity Test | Will withstand the test of R.H. 95% at 40°C for 1000hrs. C < 5% DF < 1.2% IR > 10000MΩ |
| Load Test | Will withstand a testing voltage at 140% of W.V. for 1000hrs at 85°C. C < 5% DF < 1.2% IR > 5000MΩ |
| Lead Pull Test | Will withstand a pull of 1.5Kg applied axialy for 10 seconds. |
|
Lead Bend Test |
Will sustain two cycles without breaking when attaching a load of 0.5Kg to the end of the lead and then rotating the capacitor 90º from the direction of lead egress. Then 180 in opposite direction, then back to the starting point. |
| Solderability | Immersed in molten solder (230 + 0.5 sec.) after testing, the wound lead and gap in the wound lead will be covered and filled by solder. Will be difficult to unwind byfinger. |
| Dielectric Strength | Shall withstand 200% or 160% of rated voltage at 25°C for 1 minute with current limiting resistance of 1 Ω
/ V. |

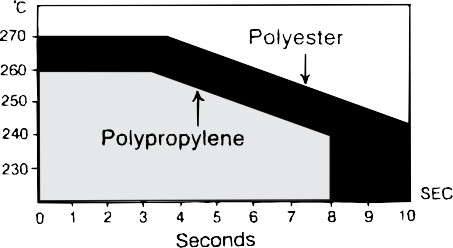

SOLDERING
The area under the curve is the recommended soldering time & temp. for the materials shown
RADIAL TAPING
SPECIFICATIONS
| Description |
Letter |
Dimension (mm) |
| RT1 | ||
| Lead Wire Diameter | d | 0.5 / 0.6 |
| Tapping Pitch | P | 12.7 |
| Feed Hole Pitch | PO | 12.7 |
| Centering of the Lead Wire | P1 | 3.85 |
| Centering of the Body | P2 | 6.35 |
| Lead Spacing (Pitch) | F | 5 |
| Component Alignment | ∆h | 0 |
| Height of Componenet from Tape Center | H | 18.5 |
| Carrier Tape Width | W | 18 |
| Hold Down Tape Width | WO | 6 |
| Hole Position | W1 | 9 |
| Hold Down Tape Position | W2 | 3 |
| Feed Hole Diameter | Do | 4 |
| Tape Thickness | t | 0.7 |
| Figure | fig | 1 or 2 |
Remark: *Allowance of accumulated pitch less than 1mm at the sum of 20 pitches.
*Continuous empty component less than 3 consecutive pieces.
*Total empty on one reel less than 1%.
INTRODUCTION
CDAF Series are constructed with metalized polyester film dielectric, copperply lead and epoxy resin powder coating. They are suitable for blocking, coupling, decoupling, filtering, bypass timing circuit and ideal for use in telecommunication equipment, data processing equipment, industrial instrument, automatic control systems and other general electronic equipment.
