Metallized Polyester Film Capacitor |High Moisture Resistance | CDAC
CDAC Series are constructed with metalized polyester film dielectric, copperply lead and epoxy resin coating. They are suitable for blocking, coupling, decoupling, filtering, bypass timing circuit and ideal for use in data / telecomm equipment, industrial instrument, automatic control systems and other general electronic application.
FEATURES
◆ Operating Temp. Range :-40°C~105°C (V R Derates 1.25% per °C over85°C)
◆ Capacitance Range:0.1~10uF
◆ Capacitance Tolerance: J=5% K=10% M=20%
◆ Rated Voltage V R 85°C: 100V 250V 400V 630V
◆ Dissipation Factor: 1% MAX @1KHZ 25℃

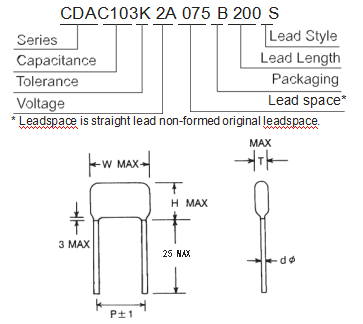

PART NUMBER EXAMPLE
CAPACITANCE CODE
| F | 0.01 | 0.047 | 0.1 | 0.47 | 1.0 | 4.7 | 10 |
| pF | 10000 | 47000 | 100000 | 470000 | – | – | – |
| Code | 103 | 473 | 104 | 474 | 105 | 475 | 106 |
RATED VOLTAGE
| WV | 100 | 250 | 400 | 630 |
| Code | 2A | 2E | 2G | 2J |
| Meth | d | Bulk | Ammo | Reel |
| Code | B | A | R | |
| Spacin | g | 7.5mm | 10mm | 15mm |
| Packing | A or R | A | A | |
| Code | RT2 | RT3 | RT4 | |
RADIAL LEAD SPACING
* Leadspace is straight lead non-formed original leadspace.
| mm | 7.5 | 10 | 15 | 20 | 27.5 | 32.5 | 37.5 | 42.5 | |
| Code | 075 | 100 | 150 | 200 | 275 | 325 | 375 | 425 | |
LEAD LENGTH FROM SEATING PLANE
| mm | 5 | 10 | 15 | 20 | 25 |
| Code | 050 | 100 | 150 | 200 | 250 |
LEAD STYLE
| Code | Style |
| S | Straight |
| K | Kink-In (Stand Off) |
| F | Form Out |
| I | Form In |
MAXIMUM DIMENSIONS (mm)
| (µF) |
Code |
W | H | T | P | d Φ | W | H | T | P | dΦ | W | H | T | P | dΦ | W | H | T | P | dΦ |
| 0.01 | 103 | 10.5 | 9.0 | 5.5 | 7.5 | 0.6 | 10.5 | 9.0 | 5.5 | 7.5 | 0.6 | 10.5 | 9.0 | 5.5 | 7.5 | 0.6 | 13.0 | 10.0 | 6.0 | 10.0 | 0.6 |
| 0.015 | 153 | 10.5 | 9.5 | 6.0 | 7.5 | 0.6 | 10.5 | 9.5 | 6.0 | 7.5 | 0.6 | 10.5 | 9.5 | 6.0 | 7.5 | 0.6 | 13.0 | 10.5 | 6.5 | 10.0 | 0.6 |
| 0.022 | 223 | 10.5 | 9.5 | 6.0 | 7.5 | 0.6 | 10.5 | 9.5 | 6.0 | 7.5 | 0.6 | 13.0 | 9.5 | 6.0 | 10.0 | 0.6 | 13.0 | 12.5 | 7.5 | 10.0 | 0.6 |
| 0.033 | 333 | 10.5 | 9.5 | 6.0 | 7.5 | 0.6 | 10.5 | 9.5 | 6.0 | 7.5 | 0.6 | 13.0 | 10.0 | 6.5 | 10.0 | 0.6 | 18.5 | 12.0 | 6.5 | 15.0 | 0.6 |
| 0.047 | 473 | 10.5 | 9.5 | 6.0 | 7.5 | 0.6 | 10.5 | 9.5 | 6.0 | 7.5 | 0.6 | 13.0 | 12.0 | 7.0 | 10.0 | 0.6 | 18.5 | 12.5 | 7.5 | 15.0 | 0.6 |
| 0.068 | 683 | 10.5 | 9.5 | 6.0 | 7.5 | 0.6 | 10.5 | 10.0 | 6.5 | 7.5 | 0.6 | 13.0 | 13.0 | 8.0 | 10.0 | 0.6 | 18.5 | 14.0 | 8.5 | 15.0 | 0.8 |
| 0.1 | 104 | 10.5 | 9.5 | 6.0 | 7.5 | 0.6 | 13.0 | 10.0 | 6.5 | 10.0 | 0.6 | 18.0 | 12.5 | 7.0 | 15.0 | 0.8 | 18.5 | 14.5 | 10.0 | 15.0 | 0.8 |
| 0.15 | 154 | 13.0 | 9.0 | 5.5 | 10.0 | 0.6 | 18.5 | 11.0 | 6.0 | 15.0 | 0.6 | 18.5 | 13.5 | 8.0 | 15.0 | 0.8 | 23.0 | 15.0 | 9.5 | 20.0 | 0.8 |
| 0.22 | 224 | 13.0 | 10.0 | 6.5 | 10.0 | 0.6 | 18.5 | 11.5 | 6.5 | 15.0 | 0.6 | 22.5 | 14.5 | 8.0 | 20.0 | 0.8 | 23.0 | 15.5 | 10.0 | 20.0 | 0.8 |
| 0.33 | 334 | 13.0 | 11.5 | 8.0 | 10.0 | 0.6 | 18.5 | 12.0 | 7.0 | 15.0 | 0.8 | 22.5 | 15.0 | 9.0 | 20.0 | 0.8 | 32.0 | 19.0 | 12.0 | 27.5 | 0.8 |
| 0.47 | 474 | 18.5 | 11.0 | 6.0 | 15.0 | 0.6 | 22.5 | 12.5 | 7.5 | 20.0 | 0.8 | 22.5 | 18.5 | 11.5 | 20.0 | 0.8 | 32.0 | 22.0 | 13.5 | 27.5 | 0.8 |
| 0.68 | 684 | 18.5 | 12.5 | 7.5 | 15.0 | 0.6 | 22.5 | 13.5 | 8.5 | 20.0 | 0.8 | 32.0 | 19.0 | 12.0 | 27.5 | 0.8 | 36.0 | 22.5 | 14.5 | 32.5 | 0.8 |
| 1 | 105 | 18.5 | 13.5 | 8.5 | 15.0 | 0.8 | 22.5 | 15.0 | 10.0 | 20.0 | 0.8 | 32.0 | 21.5 | 13.5 | 27.5 | 0.8 | 36.0 | 29.0 | 16.0 | 32.5 | 0.8 |
| 1.5 | 155 | 22.5 | 14.5 | 8.0 | 20.0 | 0.8 | 32.0 | 17.5 | 9.5 | 27.5 | 0.8 | 36.0 | 23.5 | 14.0 | 32.5 | 0.8 | 42.0 | 29.5 | 18.5 | 37.5 | 1.0 |
| 2.2 | 225 | 22.5 | 16.5 | 10.0 | 20.0 | 0.8 | 32.0 | 19.0 | 10.5 | 27.5 | 0.8 | 36.0 | 27.5 | 18.5 | 32.5 | 0.8 | 46.0 | 32.5 | 20.5 | 42.5 | 1.0 |
| 3.3 | 335 | 22.5 | 20.0 | 12.0 | 20.0 | 0.8 | 32.0 | 23.0 | 13.5 | 27.5 | 0.8 | 42.0 | 30.5 | 18.5 | 37.5 | 1.0 | |||||
| 4.7 | 475 | 22.5 | 21.5 | 14.0 | 20.0 | 0.8 | 36.0 | 24.0 | 14.0 | 32.5 | 0.8 | 46.0 | 34.0 | 22.0 | 42.5 | 1.0 | |||||
| 6.8 | 685 | 32.0 | 23.5 | 14.5 | 27.5 | 0.8 | 42.0 | 27.0 | 16.0 | 37.5 | 1.0 | ||||||||||
| 10 | 106 | 32.0 | 29.0 | 18.0 | 27.5 | 0.8 | 42.0 | 35.0 | 19.0 | 37.5 | 1.0 |
PERFORMANCE
| Item | Metalized Polyester |
| Capacitance Drift | Cycled through the operating temperature range 2% |
| Humidity Test | Will withstand the test of R.H. 95% at 40°Cfor 1000hrs. C < 5% DF < 1.2% IR > 10000M |
| Load Test | Will withstand a testing voltage at 140% of W.V. for 1000hrs at 85 °C. C< 5% DF < 1.2% IR > 5000M |
| Lead Pull Test | Will withstand a pull of 1.5Kg applied axially for 10 seconds |
|
Lead Bend Test |
Will sustain two cycles without breaking when attaching a load of 0.5Kg to the end of the lead and then rotating the capacitor 90°C from the direction of lead egress. Then 180°C in opposite direction. Then back to the starting point. |
| Solderability | Immersed in molten solder 230 + 0.5sec. After testing, the wound lead and gap in the wound lead will be covered and filled by solder. Will be difficult to unwind by finger. |
| Dielectric Strength | Shall withstand 200% or 160% of rated voltage at 25°C for 1 minute with current limiting resistance of 1 / V |
SOLDERING
The area under the curve is the recommended soldering time & temp. for the materials shown.
INTRODUCTION
CDAC Series are constructed with metalized polyester film dielectric, copperply lead and epoxy resin coating. They are suitable for blocking, coupling, decoupling, filtering, bypass timing circuit and ideal for use in data / telecomm equipment, industrial instrument, automatic control systems and other general electronic application.
