Low Leakge Electrolytic Capacitors 105℃ 1,000hrs ▏CABA
FEATURES
105℃, 1000 hours assured.
Very Low leakage current.
Use in high temperature industrial equipment.
105℃, 1000 hours assured.
Very Low leakage current.
Use in high temperature industrial equipment.
SPECIFICATIONS
| Item | Performance | ||||||||||||||||||||
| Operating Temperature Range | -40°C ~ +105°C | ||||||||||||||||||||
| Capacitance Tolerance | ± 20% (120Hz, 20°C) | ||||||||||||||||||||
| Leakage Current (at 20°C) | I = 0.002CV or 0.4 ( A) whichever is greater (after 2 minutes). Where, C = rated capacitance in F. V=rated DC working voltage in V. | ||||||||||||||||||||
|
Dissipaton Factor Tan δ at 120 Hz, 20°C |
Rated Voltage | 6.3 | 10 | 16 | 25 | 35 | 50 | 63 | 100 | ||||||||||||
| Tan δ (max) | 0.24 | 0.21 | 0.16 | 0.14 | 0.12 | 0.10 | 0.09 | 0.08 | |||||||||||||
| When the capacitance exceed 1000 F 0.02 shall be added every 1000 F. Impedance ratio shall not exceed the values given in the table below. | |||||||||||||||||||||
| Low Temperature Characteristics (at 120Hz) | Rated Voltage | 6.3 | 10 | 16 | 25 | 35 | 50 | 63 | 100 | ||||||||||||
| Impedance Ratio | Z(-25°C)/Z(+20°C) | 4 | 3 | 3 | 2 | 2 | 2 | 2 | 2 | ||||||||||||
| Z(-40°C)/Z(+20°C) | 8 | 6 | 6 | 4 | 4 | 3 | 3 | 3 | |||||||||||||
| Load Life Test
(after application of the rated voltage applied for 1000 hours at 105°C) |
Test Time | 1000 Hrs |
Shelf Life Test (at 20°C after rated voltage applied for 1000 hours at 105°C without voltage applied) |
Test Time | 1000 Hrs | ||||||||||||||||
| Capacitance Change | ≤ ± 20% | Capacitance Change | ≤ ± 20% | ||||||||||||||||||
| Dissipation Factor | Less than 200% of specified value | Dissipation Factor | Less than 200% of specified value | ||||||||||||||||||
| Leakage Current | Within specified value | Leakage Current | Within specified value | ||||||||||||||||||
|
Ripple Current & Frequency Multilpiers |
Freq. (Hz)
Cap. (μF) |
60(50) |
120 |
500 |
1K |
10K μp |
|||||||||||||||
| Under 100 | 0.75 | 1.00 | 1.35 | 1.55 | 1.90 | ||||||||||||||||
| 220 to 1000 | 0.83 | 1.00 | 1.23 | 1.32 | 1.45 | ||||||||||||||||
| 2200 up above | 0.90 | 1.00 | 1.12 | 1.10 | 1.12 | ||||||||||||||||
| Riple Current & Temperature Multipliers | Temperature (°C) | Under 50 | 70 | 85 | 105 | ||||||||||||||||
| Multipliers | 2.20 | 1.75 | 1.58 | 1.00 | |||||||||||||||||
| Standards | Satisfies Characteristic W of JIS C 5141 | ||||||||||||||||||||
DIMENSIONS AND PERMISSABLE RIPPLE CURRENT
Dimension: ΦD×L(mm) Ripple Current: mA/RMS at 120Hz 105°C
| VDC
μF Code |
6.3V(0J) | 10V(1A) | 16V(1C) | 25V(1E) | 35V(1H) | 50V(1H) | 63V(1J) | 100V(2A) | |||||||||
| φDXL | mA | φDXL | mA | φDXL | mA | φDXL | mA | φDXL | mA | φDXL | mA | φDXL | mA | φDXL | mA | ||
| 0.1 | 0R1 | 5 x 11 | 1.3 | 5 x 11 | 2.6 | ||||||||||||
| 0.22 | R22 | 5 x 11 | 2.9 | 5 x 11 | 5.8 | ||||||||||||
| 0.33 | R33 | 5 x 11 | 4.4 | 5 x 11 | 8 | ||||||||||||
| 0.47 | R47 | 5 x 11 | 7 | 5 x 11 | 10 | ||||||||||||
| 1 | 010 | 5 x 11 | 13 | 5 x 11 | 15 | ||||||||||||
| 2.2 | 2R2 | 5 x 11 | 20 | 5 x 11 | 23 | ||||||||||||
| 3.3 | 3R3 | 5 x 11 | 25 | 5 x 11 | 29 | ||||||||||||
| 4.7 | 4R7 | 5 x 11 | 26 | 5 x 11 | 28 | 5 x 11 | 30 | 5 x 11 | 32 | 5 x 11 | 34 | ||||||
| 10 | 100 | 5 x 11 | 35 | 5 x 11 | 38 | 5 x 11 | 41 | 5 x 11 | 46 | 5 x 11 | 50 | 6.3 x 11 | 56 | ||||
| 22 | 220 | 5 x 11 | 49 | 5 x 11 | 54 | 5 x 11 | 57 | 5 x 11 | 61 | 5 x 11 | 68 | 6.3 x 11 | 82 | 8 x 11.5 | 96 | ||
| 33 | 330 | 5 x 11 | 54 | 5 x 11 | 60 | 5 x 11 | 64 | 5 x 11 | 69 | 5 x 11 | 75 | 6.3 x 11 | 90 | 6.3 x 11 | 100 | 10 x 12.5 | 140 |
| 47 | 470 | 5 x 11 | 65 | 5 x 11 | 70 | 5 x 11 | 99 | 5 x 11 | 82 | 6.3 x 11 | 100 | 6.3 x 11 | 110 | 8 x 11.5 | 135 | 10 x 16 | 180 |
| 100 | 101 | 5 x 11 | 95 | 5 x 11 | 105 | 6.3 x 11 | 25 | 6.3 x 11 | 135 | 8 x 11.5 | 170 | 8 x 11.5 | 180 | 10 x 12.5 | 225 | 13 x 20 | 320 |
| 220 | 221 | 6.3 x 11 | 160 | 6.3 x 11 | 175 | 8 x 11.5 | 15 | 8 x 11.5 | 230 | 10 x 12.5 | 300 | 10 x 16 | 345 | 10 x 20 | 400 | 16 x 25 | 570 |
| 330 | 331 | 6.3 x 11 | 195 | 8 x 11.5 | 245 | 8 x 11.5 | 60 | 10 x 12.5 | 335 | 10 x 16 | 400 | 10 x 20 | 460 | 13 x 20 | 540 | 16 x 25 | 700 |
| 470 | 471 | 8 x 11.5 | 270 | 8 x 11.5 | 290 | 10 x 12.5 | 70 | 10 x 16 | 440 | 10 x 20 | 520 | 13 x 20 | 610 | 13 x 25 | 700 | 16 x 31.5 | 880 |
| 1000 | 102 | 10 x 12.5 | 460 | 10 x 16 | 550 | 10 x 20 | 40 | 13 x 20 | 770 | 13 x 25 | 920 | 16 x 25 | 1080 | 16 x 31.5 | 1210 | ||
| 2200 | 222 | 13 x 20 | 810 | 13 x 20 | 860 | 13 x 25 | 000 | 16 x 25 | 1170 | 16 x 31.5 | 1340 | 18 x 35.5 | 1530 | ||||
| 3300 | 332 | 13 x 20 | 960 | 13 x 25 | 1100 | 16 x 25 | 300 | 16 x 31.5 | 1460 | 18 x 35.5 | 1650 | ||||||
| 4700 | 472 | 16 x 25 | 1330 | 16 x 25 | 1400 | 16 x 31.5 | 600 | 18 x 35.5 | 1780 | 18 x 40 | 1900 | ||||||
PART NUMBER EXAMPLE
CABA 220 M 1C BK 050 110

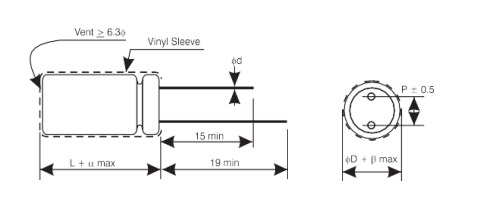

LEAD SPACING AND DIAMETER
| jd | 5 | 6.3 | 8 | 10 | 13 | 16 | 18 |
| P | 2.0 | 2.5 | 3.5 | 5.0 | 5.0 | 7.5 | 7.5 |
| jd | 0.5 | 0.6 | 0.8 | ||||
| a | 1.0 | 1.5 | |||||
| b | 0.5 | ||||||
FEATURES
◆ 105℃,1000hours assured.
◆ Very Low leakage current.
◆ Usei nhigh temperature industrial equipment.
◆ RoHS Compliant
