Low ESR Electrolytic Capacitors ▏6.3~63V ▏4,000~10,000Hrs ▏CADF

FEATURES
Long life, 105 ℃, 4,000 ~ 10,000 hours assured
Low Impedance, suitable for switching power supplies
Smallersize with largepermissibleripplecurrent

Datasheet-For-Low-ESR-Electrolytic-Capacitors-▏6.363V-▏400010000Hrs-▏CADF.pdf (1039 downloads)

SPECIFICATIONS

Items	Performance
Life	at 105 °C 4,000 ~ 10,000 Hours
Operating Temp.	-55 °C ~ +105 °C
Capacitance Tolerance	±20% (at 120Hz, 20 °C)
Leakage Current (at 20 °C)	I = – 0.1CV or 3 (µA) whichever is greater (after 2 minutes) Where C = rated capacitance in µF. V = rated DC working voltage in V.
Dissipation Factor (Tan φ at 120Hz, 20°C)	Rated Voltage		6.3	10	16	25	35	50	63
	Tan φ (max)		0.22	0.19	0.16	0.14	0.12	0.10	0.09
Low Temperature Characteristics (at 120Hz)	Impedance ratio shall not exceed the values given in the table below.
	Rated Voltage					6	10	16	25	35	50	63
	Impedance Ratio		Z (-25°C) / Z (+20 °C)			3	3	3	3	3	3	3
Load Life Test	Test Time	6.3 ~ 10V		4,000 Hrs for D = 5 ~ 6.3mm
				6,000 Hrs for D = 8 ~ 10mm
				8,000 Hrs for D >12.5mm
		16 ~ 63V		5,000 Hrs for D = 5 ~ 6.3mm
				7,000 Hrs for D = 8 ~ 10mm
				10,000 Hrs for D > 12.5mm
	Capacitance Change			Within ± 25% of initial value
	Dissipation Factor			Less than 200% of specified value
	Leakage Current			Within specified value
	* The above specifications shall be satisfied when the capacitors are restored to 20 °C after the rated voltage applied with rated ripple current for 4,000 ~ 10,000hrs at 105 ℃.
Shelf Life Test	Test Time			1,000 hours
	Capacitance Change			Within ± 25% of initial value
	Dissipation Factor			Less than 200% of specified value
	Leakage Current			Within specified value
	* The above specifications shall be satisfied when the capacitors are restored to 20 °C after exposing them for 1,000 hrs at 105 °C without voltage applied. The rated voltage shall be applied to the capacitors before the measurements. (Refer to JIS C 5101-4 4.1).
Ripple Current & Frequency Multipliers	Freq. (Hz) Cap. (µF)		120	1K	10K	100K up
	under ~ 33		0.42	0.70	0.90	1.0
	39 ~ 270		0.50	0.73	0.92	1.0
	330 ~ 680		0.55	0.77	0.94	1.0
	820 ~ 1,800		0.60	0.80	0.96	1.0
	2,200 ~ 18,000		0.70	0.85	0.98	1.0
Other Standards	JIS C 5101-4

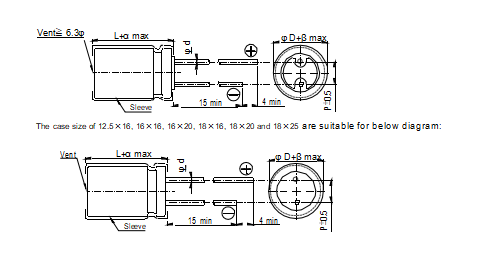

DIMENSIONS

Unit: mm

φD	5	6.3	8	10	12.5	16	18
P	2.0	2.5	3.5	5.0	5.0	7.5	7.5
φd	0.5		0.6			0.8
a	1.0			L < 20:1.5, L ≥ 20:2.0
b	0.5

DIMENSIONS & PERMISSIBLE RIPPLE CURRENT AND MAX IMPEDANCE

Dimension: jD x L(mm) Ripple Current: mA/rms at 100Hz, 105°C

	V.DC	6.3V (0J)				10V (1A)				16V (1C)				25V (1E)
	Contents	φ D x L	Impedance (Ω, Max / 100kHz)		Ripple Current (mA / rms, 105°C)	φ D x L	Impedance (Ω, Max / 100kHz)		Ripple Current (mA / rms, 105°C)	φ D x L	Impedance (Ω, Max / 100kHz)		Ripple Current (mA / rms,	φ D x L	Impedance (Ω, Max / 100kHz)		Ripple Current (mA / rms, 105°C)
	µ F		Impedance (Ω, Max / 100kHz)		Ripple Current (mA / rms, 105°C)		Impedance (Ω, Max / 100kHz)		Ripple Current (mA / rms, 105°C)		Impedance (Ω, Max / 100kHz)		Ripple Current (mA / rms,		Impedance (Ω, Max / 100kHz)		Ripple Current (mA / rms, 105°C)
	µ F		20°C	-10°C	100k Hz		20°C	-10°C	100k Hz		20°C	-10°C	100k Hz		20°C	-10°C	100k Hz
47	470													5 x 11	0.58	1.16	210
56	560
100	101					5 x 11	0.58	1.16	210					6.3 x 11	0.22	0.44	340
120	121									6.3 x 11	0.22	0.44	340
150	151	5 x 11	0.58	1.16	210
220	221					6.3 x 11	0.22	0.44	340					8 x 11.5	0.11	0.22	640
330	331	6.3 x 11	0.22	0.44	340					8 x 11.5	0.11	0.22	640	8 x 15	0.083	0.166	840
330	331	6.3 x 11	0.22	0.44	340					8 x 11.5	0.11	0.22	640	10 x 13	0.080	0.160	865
470	471					8 x 11.5	0.11	0.22	640	8 x 15 10 x 12.5	0.083 0.080	0.166 0.16	840 865	8 x 20 10 x 16	0.064 0.060	0.128 0.120	1,050 1,210
680	681	8 x 12	0.11	0.22	640	8 x 15 10 x 12.5	0.083 0.080	0.166 0.160	840 865	8 x 20 10 x 16	0.064 0.060	0.128 0.120	1,050 1,210	10 x 20 12.5 x16	0.046 0.049	0.092 0.098	1,400 1,450
820	821	10 x 12.5	0.080	0.16	865									10 x 25	0.042	0.084	1,650
1,000	102	8 x 15	0.087	0.174	840	8 x 20 10 x 16	0.064 0.060	0.128 0.120	1,050 1,210	10 x 20 12.5 x 16	0.046 0.049	0.092 0.098	1,400 1,450	10 x 30 12.5×20 16×16	0.031 0.035 0.042	0.062 0.070 0.084	1,910 1,900 1,940
1,200	122	8 x 20	0.069	0.128	1,050	10 x 20	0.046	0.092	1,400	10 x 25	0.042	0.084	1,650	18 x 16	0.043	0.086	2,210
1,200	122	10 x 16	0.060	0.120	1,210	10 x 20	0.046	0.092	1,400	10 x 25	0.042	0.084	1,650	18 x 16	0.043	0.086	2,210
1,500	152	10 x 20	0.046	0.092	1,400	10 x 25 12.5 x 16	0.042 0.049	0.084 0.090	1,650 1,450	10 x 30 12.5×20 16×16	0.031 0.035 0.042	0.062 0.070 0.084	1,910 1,900 1,940	12.5 x 25	0.027	0.054	2,230
1,800	182	12.5 x 16	0.045	0.090	1,450									12.5 x 30	0.024	0.048	2,650
1,800	182	12.5 x 16	0.045	0.090	1,450									16 x 20	0.027	0.054	2,530
2,200	222	10 x 25	0.042	0.084	1,650	10 x 30 12.5×20 16×16	0.031 0.035 0.042	0.062 0.070 0.084	1,910 1,900 1,940	12.5 x 25 18 x 16	0.027 0.043	0.054 0.086	2,230 2,210	12.5 x 35 18 x 20	0.020 0.026	0.040 0.052	2,880 2,860
2,700	272	10 x 30 16 x 16	0.031 0.042	0.062 0.084	1,910 1,940	18 x 16	0.043	0.086	2,210	12.5 x 30 16 x 20	0.024 0.027	0.048 0.054	2,650 2,530	12.5 x 40 16 x 25	0.017 0.021	0.034 0.042	3,350 3,610
3,300	332	12.5 x 20	0.035	0.070	1,900	12.5 x 25	0.027	0.054	2,230	12.5 x 35	0.020	0.040	2,880	16 x 31.5	0.017	0.034	3,450
3,300	332	12.5 x 20	0.035	0.070	1,900	12.5 x 25	0.027	0.054	2,230	12.5 x 35	0.020	0.040	2,880	18 x 25	0.019	0.038	3,140
3,900	392	12.5 x 25 18 x 16	0.027 0.043	0.054 0.086	2,230 2,210	12.5 x 30 16 x 20	0.024 0.027	0.048 0.054	2,650 2,530	12.5 x 40 16 x 25 18 x 20	0.017 0.021 0.026	0.034 0.042 0.052	3,350 2,930 2,860	16 x 35.5 18 x 31.5	0.015 0.015	0.030 0.030	3,610 4,170
4,700	472	12.5 x 30	0.024	0.048	2,650	12.5 x 35	0.020	0.040	2,880	16 x 31.5 18 x 25	0.017 0.019	0.034 0.038	3,450 3,140	16 x 40 18 x 35.5	0.013 0.014	0.026 0.028	4,080 4,220
5,600	562	12.5 x 35 16 x 20	0.02 0.027	0.040 0.054	2,880 2,530	12.5 x 40 16 x 25 18 x 20	0.017 0.021 0.026	0.034 0.042 0.052	3,350 2,930 2,860	16 x35.5 18 x31.5	0.015 0.015	0.030 0.030	3,610 4,170	18 x 40	0.012	0.024	4,280
6,800	682	12.5 x 40 16 x 25 18 x 20	0.017 0.021 0.026	0.034 0.042 0.052	3,350 2,930 2,860	16.0 x 31.5 18 x 25	0.017 0.019	0.034 0.038	3,450 3,140	16 x 40	0.013	0.026	4,080
8,200	822	16 x 31.5	0.017	0.034	3,450	16 x 35.5	0.015	0.030	3,610	18 x 35.5	0.014	0.020	4,220
8,200	822	16 x 31.5	0.017	0.034	3,450	18 x 31.5	0.015	0.030	4,170	18 x 35.5	0.014	0.020	4,220
10,000	103	16 x 35.5 18 x 25	0.015 0.019	0.030 0.038	3,610 3,140	16 x 31.5 18 x 25	0.017 0.019	0.034 0.038	3,450 3,140	16 x 40	0.013	0.026	4,080
12,000	123	16 x 40	0.013	0.026	4,080	18 x 40	0.012	0.024	4,280
12,000	123	18 x 31.5	0.015	0.030	4,170	18 x 40	0.012	0.024	4,280
15,000	153	18 x 35.5	0.014	0.028	4,220
18,000	183	18 x 40	0.012	0.024	4,280

Note: Case size in mark of ” ∗ ” is downsize

DIMENSIONS & PERMISSIBLE RIPPLE CURRENT AND MAX IMPEDANCE

Dimension: jD x L(mm) Ripple Current: mA/rms at 100Hz, 105°C

	V. DC	35V (1V)				50V (1H)				63V (1J)
	Contents	φ D x L	Impedance (Ω, Max / 100kHz)		Ripple Current (mA / rms, 105°C)	φ D x L	Impedance (Ω, Max / 100kHz)		Ripple Current (mA / rms, 105°C)	φ D x L	Impedance (Ω, Max / 100kHz)		Ripple Current (mA / rms, 105°C)
μF		φ D x L	20°C	-10°C	100k Hz	φ D x L	20°C	-10°C	100k Hz	φ D x L	20°C	-10°C	100k Hz
2.2	2R2					5 x 11	3.3	6.6	43
3.3	3R3					5 x 11	2.9	5.8	53
4.7	4R7					5 x 11	2.5	5.0	95
10	101					5 x 11	2	4.0	130
15	151									5 x 11	1.2	2.4	165
22	220					5 x 11	0.91	1.82	180
33	330	5 x 11	0.58	1.16	210					6.3 x 11	0.49	0.98	265
56	560	6.3 x 11	0.22	0.44	340	6.3 x 11	0.39	0.78	295	8 x 12	0.31	0.62	500
82	820									8 x 15	0.22	0.44	665
82	820									10 x 12.5	0.150	0.3	690
100	101					8 x 12	0.220	0.440	555
120	121					8 x 15	0.150	0.300	730	8 x 20.0	0.170	0.340	820
120	121					8 x 15	0.150	0.300	730	10 x 16.0	0.110	0.220	950
150	151	8 x 11.5	0.110	0.220	640	10 x 12.5	0.160	0.320	760
180	181					8 x 20	0.118	0.236	910	10 x 20.0	0.078	0.156	1,150
180	181					8 x 20	0.118	0.236	910	12.5 x 16.0	0.101	0.202	1,150
220	221	8 x 15	0.083	0.166	840	10 x 16	0.110	0.220	1,050	10 x 25	0.064	0.128	1,350
220	221	10 x 12.5	0.080	0.160	865	10 x 16	0.110	0.220	1,050	10 x 25	0.064	0.128	1,350
270	271	8 x 20	0.064	0.128	1,050	10.0 x 20	0.078	0.156	1,220	12.5 x 20	0.057	0.114	1,500
270	271	8 x 20	0.064	0.128	1,050	12.5 x 60	0.079	0.158	1,260	12.5 x 20	0.057	0.114	1,500
330	331	10 x 16	0.060	0.120	1,210	10 x 25	0.072	0.144	1,440
390	391									12.5 x 20	0.057	0.114	1,500
470	471	10 x 20 12.5 x 16	0.046 0.049	0.092 0.098	1,400 1,450	10 x 30 12.5 x 20 16 x 16	0.056 0.059 0.072	0.112 0.118 0.114	1,690 1,660 1,690	12.5 x 30 16 x 20	0.039 0.04	0.078 0.090	2,300 2,000
560	561	10 x 25	0.042	0.084	1,650	12.5 x 25	0.044	0.088	1,950	12.5 x 35	0.034	0.068	2,500
560	561	10 x 25	0.042	0.084	1,650	18 x 16	0.070	0.140	1,930	12.5 x 35	0.034	0.068	2,500
680	681	10 x 25 10 x 30 12.5 x 20 16 x 16	0.030 0.031 0.035 0.042	0.060 0.062 0.070 0.084	2,200 2,200 1,900 1,940	12.5 x 30	0.039	0.078	2,310	12.5 x 40 16 x 25 18 x 20	0.029 0.035 0.042	0.058 0.070 0.084	2,800 2,600 2,500
820	821	10 x 25	0.03	0.060	2,200	12.5 x 35 16 x 20	0.033 0.044	0.066 0.088	2,510 2,210	16 x 31.5 18 x 25	0.029 0.034	0.058 0.068	2,850 2,800
1,000	102	12.5 x 25 18 x 16	0.027 0.043	0.054 0.086	2,230 2,210	12.5 x 40 16 x 25 18 x 20	0.027 0.033 0.047	0.054 0.066 0.094	2,920 2,555 2,490	16 x 35.5	0.027	0.054	2,900
1,200	122	12.5 x 30 16 x 20	0.024 0.027	0.048 0.054	2,650 2,530	16 x 31.5 18 x 25	0.027 0.028	0.054 0.056	3,010 2,740	16 x 40 18 x 31.5	0.025 0.028	0.050 0.056	3,400 3,300
1,500	152	12.5 x 25	0.024	0.040	2,530	16 x 35.5	0.024	0.048	3,150	18 x 35.5	0.025	0.050	3,400
1,800	182	12.5 x 35 16 x 25 18 x 20	0.017 0.021 0.026	0.034 0.042 0.052	3,350 2,930 2,860	16 x 40 18 x 31.5	0.021 0.024	0.042 0.048	3,710 3,635	18 x 40	0.024	0.048	3,500
2,200	222	16 x 31.5	0.017	0.034	3,450	18 x 35.5	0.022	0.044	3,680
2,200	222	18 x 25	0.019	0.038	3,140	18 x 35.5	0.022	0.044	3,680
2,700	272	16 x 35.5	0.015	0.030	3,610	18 x 40	0.018	0.036	3,800
2,700	272	18 x 31.5	0.015	0.030	4,170	18 x 40	0.018	0.036	3,800
3,300	332	16 x 40	0.013	0.026	4,080
3,300	332	18 x 35.5	0.014	0.028	4,220
3,900	392	18 x 40	0.012	0.024	4,280

Note: Case size in mark of ” ” is downsize

PART NUMBER EXAMPLE

CADF 102 M 1C BK 100 200

FEATURES
◆ Long life,105 ℃,4,000~10,000hour sassured
◆ LowI mpedance,suitable fors witching power supplies
◆ Smalle rsize with large permissible ripple current

◆ Rohs Compliant
