Low ESR Electrolytic Capacitors ▏160~450V ▏CACB

FEATURES
105℃, 2000 ~ 3000 hours assured
Low ESR, suitable for switching power supplies, UPS
For ballast use, 3000 ~ 5000 hours assured
Smaller size with large permissible ripple current

Datasheet-For-Low-ESR-Electrolytic-Capacitors-▏160450V-▏CACB.pdf (979 downloads)

SPECIFICATIONS

Items	Performance
Operating Temperature Range	-40°C ~ +105°C
Rated Voltage Range	160 ~ 450V
Capacitance Tolerance	±20% (at 120Hz,20°C)
Leakage Current (at 20°C)	Time			After 5 minutes
	Leakage Current			CV<1000 I=0.03CV(mA)					CV>1000 I=0.02CV(mA)
	Where, C= rated capacitance in mF. V = rated DC working voltage
Dissipation Factor (Tan d at 120Hz, 20°C)	Rated Voltage		160		200		250	350			400			450
	Tan d(max)		0.20		0.20		0.20	0.24			0.24			0.24
	When the capacitance exceeds 1000mF, 0.02 shall be added every 1000mF increase.
Low Temperature Characteristics (at 120Hz)	Impedance ratio shall not exceed the values given in the table below.
	Rated Vo ltage							160		200		250	350			400		45 0
	Impedance Ratio	Z(-25°C)/Z(+20°C)						3		3		3	3			5		6
		Z(-40°C)/Z(+20°C)						4		4		4	4			6
Load Life Test	Test Time				2000 hrs for fD <10 mm 3000 hrs for fD > 13 mm
	Capacitance Change				Within ±20% of initial value
	Dissipation Factor				Less than 200% of specified value
	Leakage Current				Within specified value
	*The above specifications shall be satisfied when the capacitors are restored to 20°C after the rated voltage applied for 2000/3000 hrs at 105°C
Shelf Life Test	Test Time				1000 Hrs
	Capacitance Change				Within ±20% of initial value
	Dissipation Factor				Less than 200% of specified value
	Leakage Current				Less than 500% of specified value
	*The above specifications shall be satisfied when the capacitors are restored to 20°C after exposing them for 1000 hrs at 105°C without voltage applied.
Ripple Current & Frequency Multipliers	Freq.(Hz) Cap(mF)		60 (50)			120		500			1K			10K			100K
	Under33		0.40			0.55		0.65			0.80			0.90			1.00
	33 to 330		0.60			0.70		0.80			0.90			0.95			1.00
	390 to 1000		0.65			0.80		0.85			0.98			1.00			1.00
	1200 up above		0.80			0.90		0.95			0.98			1.00			1.00
Ripple Current & Temperature Multipliers	Temperature(°C)			65		70		85			95			105
	Multiplier			1.8		1.65		1.5			1.25			1.00
Standards	Satisfies Characteristic W of JIS C 5141

PART NUMBER EXAMPLE

CACB 100 M 2G BK 100 200

DIMENSIONS AND PERMISSABLE RIPPLE CURRENT

Dimension: D×L(mm) Ripple Current: mA/rms at 100K Hz 105°C

VDC mF	Code	fD x L	160V (2C) Impedance 20℃	Ripple 120Hz	Current 100KHz	fD x L	200V (2D) Impedance 20℃	Ripple 120Hz	Current 100KHz	fD x L	250V (2E) Impedance 20℃	Ripple 120Hz	Current 100KHz
0.47	R47	6.3 x 11	14.5	9	35	6.3 x 11	14.50	9	35	6.3 x 11	14.50	8	30
1.0	010	6.3 x 11	8.5	13	50	6.3 x 11	8.50	13	50	6.3 x 11	8.50	13	50
2.2	2R2	6.3 x 11	5.5	23	90	6.3 x 11	5.50	19	75	8 x 11.5	5.00	21	85
3.3	3R3	8 x 11.5	4.3	28	110	8 x 11.5	4.30	33	130	10 x 12.5	4.20	30	120
4.7	4R7	8 x 11.5	3.1	33	130	10 x 12.5	3.10	39	155	10 x 16	3.50	41	165
10	100	10 x 16	1.55	63	250	10 x 16	1.55	63	250	10 x 20	3.18	50	200
22	220	10 x 16	1.47	75	300	10 x 20	1.47	75	300	13 x 20	1.74	85	340
33	330	10 x 20	1.15	90	360	13 x 20	1.15	90	360	13 x 25	1.35	115	460
47	470	13 x 25	0.92	125	500	13 x 20	0.92	125	500	13 x 25	1.08	138	550
68	680	13 x 25	0.71	165	660	13 x 25	0.71	165	660	16 x 25	0.84	183	730
100	101	13 x 25	0.59	213	850	16 x 25	0.59	213	850	16 x 31.5	0.70	248	990
150	151	16 x 25	0.41	303	1,200	16 x 31.5	0.41	303	1,210	18 x 31.5	0.49	325	1,300
220	221	16 x 31.5	0.31	368	1,470	18 x 35.5	0.31	408	1,630	18 x 40	0.36	433	1,730
VDC mF 0.47	Code R47	fD x L 8 x 11.5	350V (2V) Impedance 20℃ 3.50	Ripple 120Hz 18	Current 100KHz 70	fD x L	400V (2G) Impedance 20℃	Ripple 120Hz	Current 100KHz	fD x L	450V (2W) Impedance 20℃	Ripple 120Hz	Current 100KHz
1.0	010	10 x 12.5	4.20	30	85	10 x 12.5	4.20	21	85	10 x 12.5	8.80	18	70
2.2	2R2	10 x 16	3.50	49	140	10 x 16	3.50	35	140	10 x 16	6.90	25	100
3.3	3R3	10 x 16	3.50	49	140	10 x 20	2.94	46	183	10 x 20	4.47	31	125
4.7	4R7	10 x 20	2.94	63	180	10 x 20	2.94	46	183	13 x 20	3.77	43	173
10	100	10 x 20	2.94	45	180	10 x 20	2.94	46	183	13 x 25	2.95	69	277
22	220	12.5 x 20	1.60	78	310	13 x 25	1.60	79	314	16 x 25	1.61	128	510
33	330	13 x 25	1.25	105	420	13 x 25	1.25	106	422	16 x 31.5	1.25	155	620
47	470	16 x 25	1.00	140	560	16 x 31.5	1.00	140	560	18 x 31.5	1.01	198	790
68	680	16 x 31.5	0.78	188	750	16 x 31.5	0.75	188	750	18 x 35.5	0.78	248	990
100	101	16 x 31.5	0.65	253	1,010	18 x 31.5	0.65	253	1,010

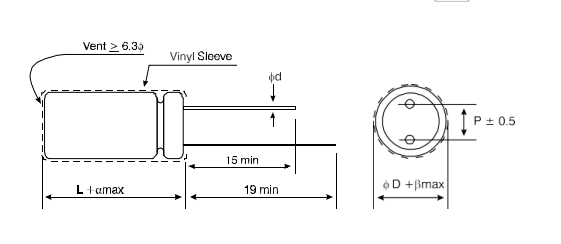

LEAD SPACING AND DIAMETER

D	5	6.3	8	10	12	16	18
P	2.0	2.5	3.5	5.0	5.0	7.5	7.5
d	0.5		0.6			0.8
a	1.0			1.5
b	0.5

FEATURES
◆ 105℃, 2000 ~ 3000 hours assured
◆ Low ESR, suitable for switching power supplies, UPS
◆ For ballast use, 3000 ~ 5000 hours assured
◆ Smaller size with large permissible ripple current

◆ Rohs Compliant
