Lithium Ion Capacitor ▏Radial Lead ▏CKBA CKBB
Lithium-ion capacitors (LIC) is a kind of hybrid capacitor. Jinpei has advanced R&D capability on lithium-ion capacitors. At present, Jinpei has completed the R&D of 3.8V 20F-750F CKBA 、 4.2V 80F-1200F CKBB series, 4.2V 100mah-4000mah cylinder CKAA Series monomer lithium-ion capacitors and ultra-fast battery module.
Being commonly used as a source of solutions,electric double layer capacitor (EDLC) and traditional lithium-ion batteries (LIB) in self- discharge characteristics, energy density, reliability, and thermal design aspects of life there are many obvious flaws,Jinpei brand lithium-ion capacitor(LIC) to overcome these problems, It just can make up the defect ofelectric double layer capacitor (EDLC) and lithium-ion batteries (LIB).
Market application covers new energy vehicles, mobile robots, military industry, power, energy storage, power tools, intelligent three meters, 5G/GPRS/ROLA/NB and other communication power supply, two-wheeler and other emerging industries.
| parameter | CKBA
0813 |
CKBA
0820 |
CKBA
1013 |
CKBA
1020 |
CKBA
1030 |
CKBA
1313 |
CKBA
1320 |
CKBA
1620 |
CKBA
1640 |
CKBA
1840 |
|
| Working Temperature | -40℃~ 70℃ | ||||||||||
| Work Voltage | 2.5~3.8V | ||||||||||
| Mix Voltage | 2.5V | ||||||||||
| (@25±2℃) Standard
Capacitance |
20F |
40F |
30F |
80F |
120F |
70F |
120F |
250F |
500F |
750F |
|
| Tolerance | -20% ~ +80% | ||||||||||
| AC(1kHz,3.8V)
Resistance |
≤500mΩ | ≤200mΩ | ≤250mΩ | ≤150mΩ | ≤100mΩ | ≤l75mΩ | ≤100mΩ | ≤50mΩ | ≤35mΩ | ≤25mΩ | |
| Max. discharge
current |
Continuous | 100mA | 200mA | 150mA | 250mA | 500mA | 250mA | 500mA | 750mA | 2.0mA | 3.0A |
| Pulse (1sec) |
0.5 A |
1.0A |
0.7A |
3.0 A |
5.0 A |
3.0 A |
5.0 A |
10.0 A |
20A |
30.0 A |
|
| Max charge voltage/current | 4.2V
200mA |
4.2V
300mA |
4.2V
350mA |
4.2V
500mA |
4.2V
1A |
4.2V
500mA |
4.2V
1A |
4.2V
2A |
4.2V
3A |
4.2V
5A |
|
|
Weight (g) Mass |
≤1.5 | ≤2.0 | ≤2.0 | ≤3.0 | ≤6.0 | ≤3.5 | ≤5.0 | ≤8.0 | ≤16.0 | ≤20.0 | |
| Dimension（D×L）mm | 8*13 | 8*20 | 10*13 | 10*20 | 10*30 | 13*13 | 13*20 | 16*20 | 16*40 | 18*40 | |
| Optimum storage condition | +10℃-50℃ 60%RH or lower | ||||||||||
CKBB | large capacitance | radial
| parameter | CKBB0825 ▏D*L 8*25 | CKBB1320 ▏13*20 | CKBB 1620 ▏16*20 | CKBB1840 ▏18*40 | |
| Working Temperature | -25℃~ 60℃ | ||||
| Work Voltage | 2.5-4.2V | ||||
| Mix Voltage | 2.5V | ||||
| (@25±2℃)
Standard Capacitance |
80F/40mAh |
250F/120mAh |
400F/200mAh |
1200F/600mAh |
|
| Tolerance | -20% ~ +80% | ||||
| AC(1kHz,3.8V)
Resistance |
≤600mΩ | ≤100mΩ | ≤50mΩ | ≤25mΩ | |
| Max. discharge
current |
Continuous | 400mA | 1000mA | 4000mA | 6000mA |
| Pulse (1sec). |
1A |
2A |
5A |
10A |
|
| Max charge voltage/current | 4.2V 200mA | 4.2V 600mA | 4.2V 2.0A | 4.2V 3.0A | |
| Weight(g) Mass | ≤2.5 | ≤5.0 | ≤8.0 | ≤20.0 | |
| Optimum storage condition | +10℃-50℃ 60%RH or lower | ||||

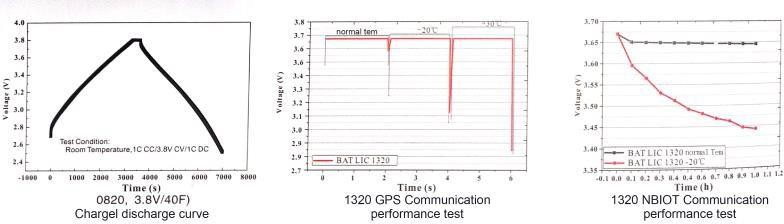

Flash charge graph
FEATURES
CKBA
◆OPERATINGTEMPERATURE: -40℃ TO + 70℃
◆CAPACITANCERANGE: 20F,40F,30F,80F,120F,70F,120F,250F,500F,750F
◆CAPACITANCETOLERANCE: -20%~+80%
◆RATEDVOLTAGE: 2.5V-3.8V
◆Mix Voltage:2.5V
——————————–
CKBB
◆OPERATINGTEMPERATURE: -25℃ TO + 60℃
◆CAPACITANCERANGE: 80F/40mA ,250F/120mAh,400F/200mAh,1200F/600mAh
◆CAPACITANCETOLERANCE: -20%~+80%
◆RATEDVOLTAGE: 2.5V-4.2V
◆Mix Voltage:2.5V
