Intelligent Integrated Power Capacitor | 400VAC | CJAD
Intelligent monitoring system
Acquisition of current, voltage, rely on 32-bit plug-in type MCU made by ST America, which can perform quick sampling, the transfer time of 12-bit AD need 1uS only, these can realize high accurate measurement and calculation of 3-P current, 3-P voltage, 3-P active power, reactive power, transparent power and etc, calculation and analysis of harmonics
HMI system
Monitor is LCD with 128X64 matrix, Chinese language, display the time, inside temperature, current, voltage, harmonic parameters at real time, check other parameters, operation status through keys, also the values of over-voltage, under- voltage, under-current, over-temperature, over-compensation can be set and saved, data not lost in case of power failure.
Intelligent connection with power system
The product provides RS485 port, built-in MODBUS-RTU protocol, compatible with DL645-2007 protocol, able to perform remote monitoring and controlling. When more than one product connected with system, they will have one master machine among them automatically, others as slave machines, become automatic control system of reactive power compensation, any of individual one has fault, it will stop running, does not influence on others operating; if the master machine has fault and out of operation, they will produce new master machine automatically, form a new system.
Power capacitor
Hi-performance dry type cylinder-shaped self-healing power capacity, has the merits of well radiation, small size, long service life, ensure the safety and reliability.
Fused disconnector
The general switch cooperated with high breaking fused disconnector is able to break 120KA short circuit current, large break position, to ensure the product able to isolate from system quickly and safely.

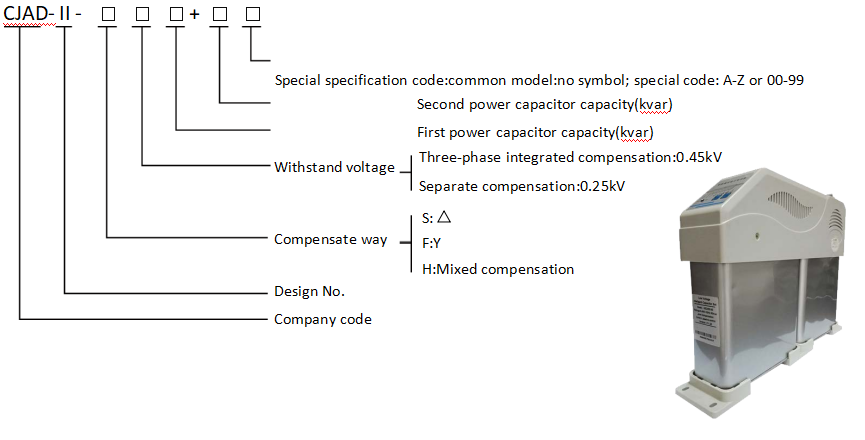

Part Number Example

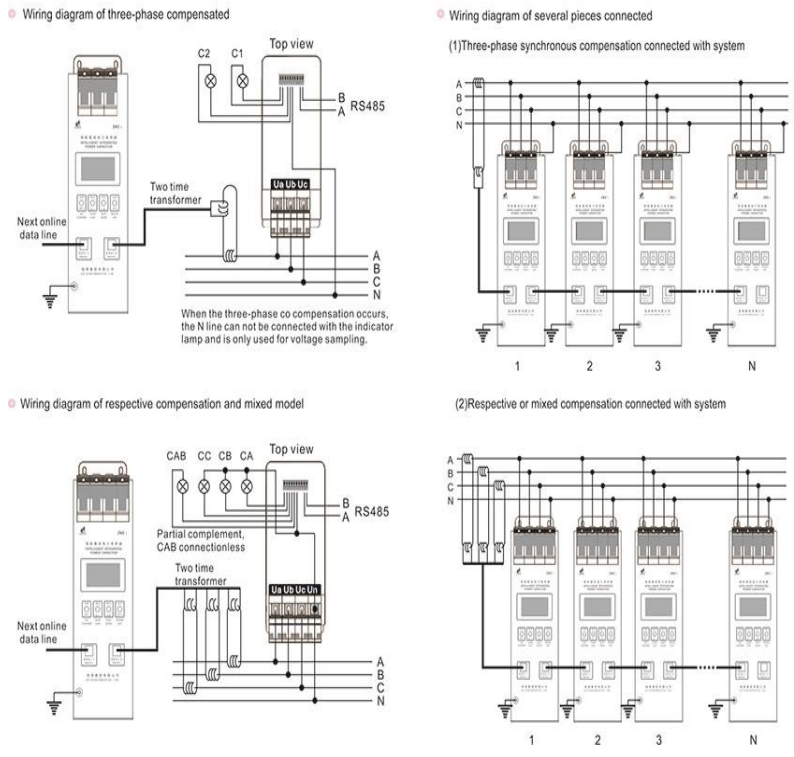

WIRING DIAGRAM
TECHNICAL PARAMETER
Parameters
Rated voltage: AC400V(deviation≤±10%， Sine wave total distortion rate <5%)
Rated current: AC0~5A (current harmonic <10%, current input impedance ≤0.02Ω) Operating freq：50Hz； Standby power：<0.5W
Measurement accuracy
Voltage≤0.5%; Current≤0.5%; Power≤0.5%; Power factor ±0.01%； Temperature ±1℃；
Time ≤100ms
Data of connecting with system
Maxi qty connected with system: ≤99PCS；
Initialized time of connecting with system ：≤10s Ambient operating conditions
Ambient temperature：-30~+60℃
Relative humidity: 90%RH(No dew at 20℃) Parameter of reactive power compensation
Interval between switching on/off: single piece ≥20s (increase if more pieces operated together) Maxi capacity of single capacitor: three-phase compensated together (30+30)kVar；
three-phase compensated respectively 30kVar Other parameters Capacitor attenuation rate: ≤0.5%/ year,
Failure rate: ≤5%/ year (servicing 6000h)
Permissible switching times: 106; Protective breaking capacity: 120KA. Comm. port：RS485

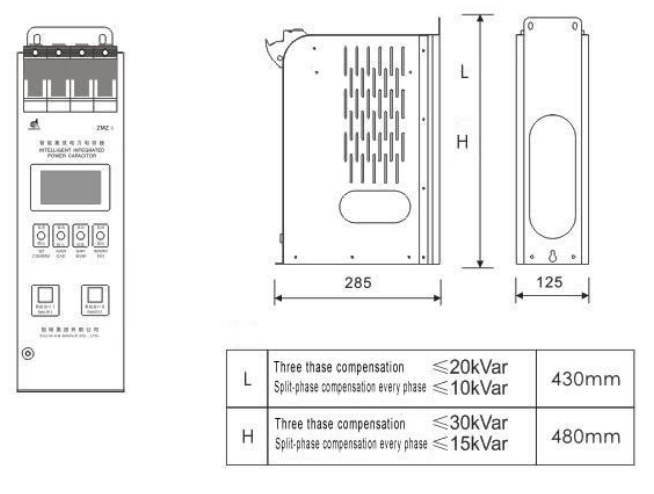

Shape And Installation Size
Shape Size
Installation Size
INTRODUCTION
Acquisition of current, voltage, rely on 32-bit plug-in type MCU made by ST America, which can perform quick sampling,the transfer time of 12-bit AD need 1uS only, these can realize high accurate measurement and calculation of 3-P current, 3-P voltage, 3-P active power, reactive power, transparent power and etc, calculation and analysis of harmonics
