High Voltage Mica Capacitor | CGAA

Feature

Using the best mica paper as material,dipping high temperature epoxy resin. High voltage,high frequency, and big current.

Application

JINPEI CGAA series mica capacitors are suitable to high frequency,high voltage, big current circuit. Like high frequency feedback circuit,high frequency resonance circuit and pulse circuit  etc.

Widely use in satellite,aerospace,ship,medical equipment,oil down-hole equipment,high  voltage

General Characteristics

Temperature Range: -40℃～+85℃

Capacitance Tolerance: ±5%,±10%,±20%

Relative Humidity: 80%, at +40℃ can be short time at 95~98%.

Atmospheric pressure: 6x104Pa~1.04x105Pa

Vibration: frequency 10~500Hz, acceleration: 10g

Working voltage: 2KV~30KV

Working current: 5A~50A

DC test  voltage:  at room termperature,rated  voltage  U0 ≤ 10KV capacitor, load 2 times working voltage,  Rated voltage  10KV﹤U0≤30KV capacitor,load 1.5 times  working  voltage,  Rated voltage U0  ﹥ 30KV  capacitor,load  1.2  times  working  voltage,  After  keep   1  minute,no   breakdown   and flashover.

Insulation resistance(R): normal climate

Capacitance C ≥ 0.1μF R≥1000MΩ

Capacitance C＜ 0.1μF    R＞5000MΩ

Dissipation factor: tgδ≤4×10-3(1KHz), Pass D.C. rated voltage test.

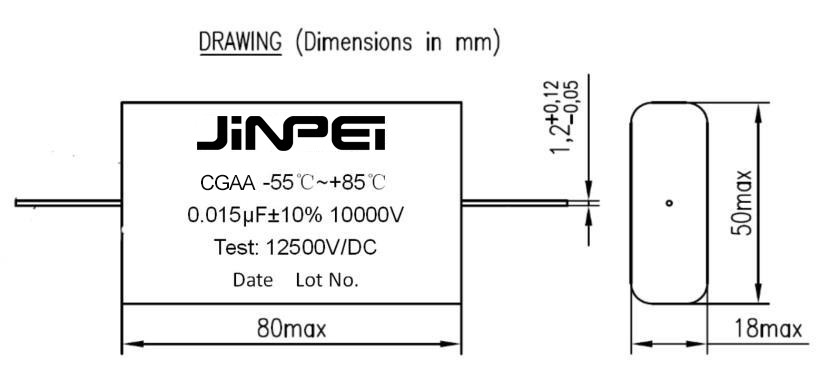

PART NUMBER EXAMPLE

INTRODUCTION
◆JINPEI CGAA series mica capacitors are suitable to high frequency,high voltage, big current circuit.
Like high frequency feedback circuit,high frequency resonance circuit and pulse circuit etc.
◆ Widely use in satellite,aerospace,ship,medical equipment,oil down-hole equipment,high voltage
transmission,welding machine,metallurgy equipment etc.
