High Temperature Tantalum Capacitors 200℃|6-125V|CBGF

Brief Introduction and Feature

1)CBGF(Equative CA382), All tantalum case ,hermetic sealed, with high-temp insulated sleeve wet tantalum electrolytic capacitors.
2)With polar, axial leads through hole.High reliability,long life,
3)This unit have a 3V reverse voltage capability. Big ripple current.
4)Can use in high temperature area 200℃ available.
5)Widely used in electronic equipment for high-temp applications such as oil down hole drilling, aerospace,satellite,military equipment and other DC or PC.
Meet standard: Q/RTO.464.199-2014

Datasheet-For-High-Temperature-Tantalum-Capacitors-200℃-6-125V-CBGF.pdf (1117 downloads)

General Characteristics
1) CBGF(Equative CA382), All tantalum case ,hermetic sealed, with high-temp insulated
sleeve wet tantalum electrolytic capacitors.
2) With polar, axial leads through hole.High reliability,long life,
3) This unit have a 3V reverse voltage capability. Big ripple current.
4) Can use in high temperature area 200℃ available.
5) Widely used in electronic equipment for high-temp applications such as oil down hole
drilling, aerospace,satellite,military equipment and other DC or PC.
Meet standard: Q/RTO.464.199-2014

General Characteristics

1)Operating Temperature: -55℃～+200℃(>85℃ use voltage derating);
2)Storage temperature：-62℃～+130℃
3) Capacitance Tolerance: K=±10% ,M=±20%,-10%~+30%,-20%~+50%
4)Leakage current: see the table 2 list
5)Ripple current: see the table 2 list

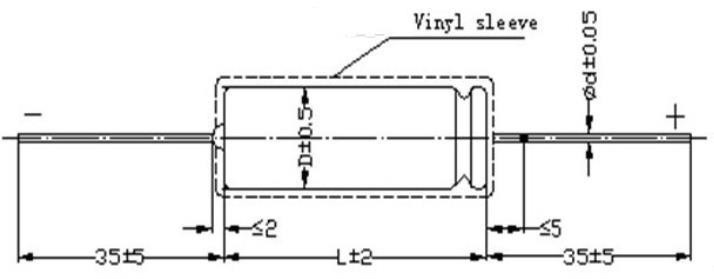

6)Dimensions and Max. weight: See table 1

PART NUMBER EXAMPLE

Notes

1、Tantalum capacitors can’t been measured by multimeter (Easily cause irreversible damage and lead to reject)
A Derated Vol. 125℃ (V) means temperature range 85℃~125℃ (not include 85℃ but include 125℃)
B Derated Vol. 200℃ (V) means temperature range 125℃~200℃ (not include 125℃ but include 200℃)
2、Capacitance, DF measure frequency: 100Hz，U-=2.20V，U~=1.0 0 V(effective value), measure method is by series equivalent circuit.
3、Measure leakage current above 125℃,please use derated voltage. DLC read within 5 minute.
4、Special size and big capacitance products, please negotiate with us

Brief Introduction and Feature

1) CBGF(Equative CA382), All tantalum case ,hermetic sealed, with high-temp insulated
sleeve wet tantalum electrolytic capacitors.
2) With polar, axial leads through hole.High reliability,long life,
3) This unit have a 3V reverse voltage capability. Big ripple current.
4) Can use in high temperature area 200℃ available.
5) Widely used in electronic equipment for high-temp applications such as oil down hole
drilling, aerospace,satellite,military equipment and other DC or PC.
Meet standard: Q/RTO.464.199-2014
