High Temperature Tantalum Capacitors 200℃| Silver Case|6-125V|CBGE
◆Silver case, Hermetic Seal, tubular, Axial leads, High temperature sleeve, Polarized.
◆Good performance of electrical, High reliability, long life, Low DF and LC.
◆Small Size, good high temperature performance, Can use at 200 ℃.
◆Suit for down-hole-drilling instrumentation and high temperature electronic devices DC or pulse circuit.
◆Implementation of standards: QJ/PWV308-2009, Can cross Vishay’s 135D
Technical Performance
Operation temperature: -55℃~+200℃ (＞85℃ use derated voltage)
Capacitance Tolerance: K=±10%；M=±20%；Q=-10%~+30% Dissipation Factor: 25℃，100Hz (see table 2)
Leakage current：
25℃I≤0.001 CRUR（μA）or 1μA (whichever is greater)
85℃I≤0.008 CRUR（μA）or 8μA (whichever is greater)
200℃ I≤0.04 CRUR（μA）or 40μA (whichever is greater)

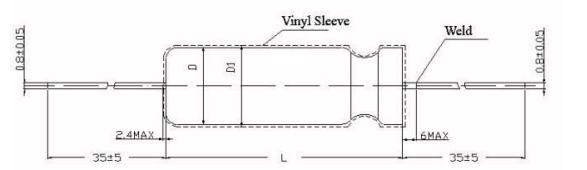

Diagram of Dimension (mm)
PART NUMBER EXAMPLE
Notes
1、Tantalum capacitors can’t been measured by multimeter (Easily cause irreversible damage and lead to reject)
2、Capacitance, DF measure frequency: 100Hz，U-=2.20V，U~=1.00V(effective value)
3、Measure leakage current above 85℃,please use derated voltage.
4、Special size and big capacitance products, please negotiate with us
Characteristics and Application
◆Silver case, Hermetic Seal, tubular, Axial leads, High temperature sleeve, Polarized.
◆Good performance of electrical, High reliability, long life, LowDF and LC.
◆Small Size, good high temperature performance, Can use at 200 ℃.
◆Suit for down-hole-drilling instrumentation and high temperature
electronic devices DC or pulse circuit.
◆Implementation of standards: QJ/PWV308-2009, Can cross Vishay’s 135D
