High Temperature Tantalum Capacitors 200℃|50-125V|CBGD
CBGD(Equative CA58B), All tantalum case ,hermetic sealed,
with high-temp insulation sleeve wet tantalum electrolytic capacitors.
With polar, axial leads through hole.High reliability,long life,high ripple current.
Widely used in electronic equipment for high-temp applications such as oil down hole drilling,and other DC or PC. Meet standard: QJ/PWV344-2011 Cross Vishay part 134D
General Characteristics
Operating Temperature: -55℃～+200℃(>85℃ with voltage derating);
Storage temperature：-62℃～+130℃
Capacitance Tolerance: K=±10% ,M=±20%
Case sizes, Dimensions and Max. weight: As shown in Table 1 and figure 1.
Performance: See table 2

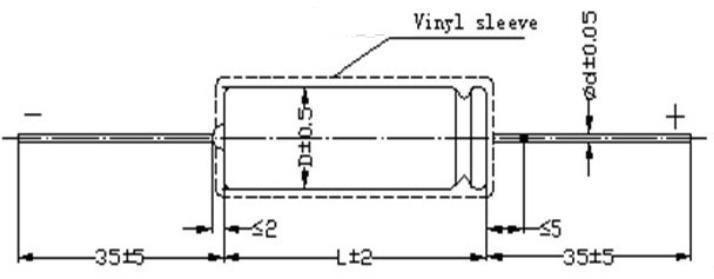

Drawing ，Case Dimension and Max. weight
PART NUMBER EXAMPLE
Notes
1、Tantalum capacitors can’t been measured by multimeter (Easily cause irreversible damage and lead to reject)
2、Capacitance, DF measure frequency: 100Hz，U=2.20- -1.0V，U =1.00 -~0.5V(effective value),
measure method is by series equivalent circuit.
3、Measure leakage current above 125℃,please use derated voltage. DLC read within 5 minute.
4、Special size and big capacitance products, please negotiate with us
