High Ripple Electrolytic Capacitors ▏10,000Hrs ▏CADB

FEATURES
105℃, 10,000 hours assured
Smaller size with large permissible ripple current
Slim Type

Datasheet-For-High-Ripple-Electrolytic-Capacitors-▏10000Hrs-▏CADB.pdf (924 downloads)

SPECIFICATIONS

Items	Performance
Life	at 105 °C 10,000 Hours
Operating Temp	400V				420 ~ 450V
	-40 °C ~ +105 °C				-25 °C ~ +105 °C
Capacitance Tolerance	+20% (at 120Hz, 20 °C)
Leakage Current (at 20 °C)	Time		after 5 minutes
	Leakage Current		CV ≤ 1,000 I = 0.01CV + 15(µA)			CV > 1,000 I = 0.02CV+25 (µA)
	Where C = rated capacitance in µF. V = rated DC working voltage in V
Dissipation Factor (Tan δ at 120Hz, 20°C)	Rated Voltage		400	420	450
	Tan δ (max)		0.24	0.24	0.24
Low Temperature Characteristics (at 120Hz)	Impedance ratio shall not exceed the values given in the table below
	Rated Voltage			400	420	450
	Impedance	Z (-25°C) / Z (+20 °C)		5	6	6
	Ratio	Z (-40°C) / Z (+20°C)		6	—	—
Load Life Test	Test Time		10,000 hrs
	Capacitance Change		Within + 20% of initial value
	Dissipation Factor		Less than 200% of specified value
	Leakage Current		Within specified value
	* The above specifications shall be satisfied when the capacitors are restored to 20 °C after the rated voltage applied with rated ripple current for 10,000 hrs at 105 °C
	Test Time		1,000 hours
Shelf Life Test	Capacitance Change		Within + 20% of initial value
	Dissipation Factor		Less than 200% of specified value
	Leakage Current		Within specified value
	* The above specifications shall be satisfied when the capacitors are restored to 20 °C after exposing them for 1,000 hrs at 105 °C without voltage applied. The rated voltage shall be applied to the capacitors before the measurements. (Refer to JIS C 5101-4 4.1)
Ripple Current & Frequency Multipliers	Freq. (Hz)		60	120	500	1k	10k up
	Multipliers		0.80	1.00	1.25	1.40	1.50
Other Standards	JIS C 5101-4

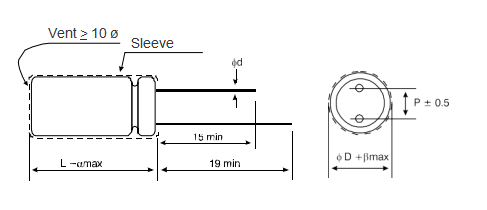

DIMENSIONS Unit: mm

φD	10	12.5	16	18
P	5.0	5.0	7.5	7.5
φd	0.6		0.8
a	2.0
β	0.5

DIMENSIONS & PERMISSIBLE RIPPLE CURRENT

Dimension: φ Dx L(mm)

Ripple Current: mA/rms at 100Hz, 105°C

V. DC	Cap. (µF)	10φ			12.5φ			16φ			18φ
		φ D x L	Ripple Current		φ D x L	Ripple Current		φ D x L	Ripple Current		φ D x L	Ripple Current
		φ D x L	120 Hz	100k Hz	φ D x L	120 Hz	100k Hz	φ D x L	120 Hz	100k Hz	φ D x L	120 Hz	100k Hz
400V (2G)	33	10 x 40	315	475
	39	10 x 45	360	545
	47	10 x 50	420	630	13 x 30	440	660
	56				13 x 35	500	750
	68				13 x 40	580	870	16 x 32	530	795
	82				13 x 50	625	935	16 x 35.5	615	920
	100							16 x 40	715	1,070
	120							16 x 40	800	1,200	18 x 35.5 18 x 40	790 870	1,185 1,305
	150							16 x 45	915	1,375	18 x 45	985	1,475
	180										18 x 50	1,120	1,685
420V (2P)	33	10 x 40	370	555
	39	10 x 45	410	615	12.5 x 30	390	585
	47	10 x 50	465	700	12.5 x 35	450	675
	56				12.5 x 40	520	780	16 x 31.5	500	750
	68				12.5 x 45	580	870	16 x 35.5	580	870
	82				12.5 x 50	660	990	16 x 35.5 16 x 40	730 675	1,095
	82				12.5 x 50	660	990	16 x 35.5 16 x 40	730 675	1,010
	100							16 x 40 16 x 45	750 755	1,125 1,130	18 x 36	725	1,085
	120										18 x 40 18 x 45	835 880	1,250 1,320
	150										18 x 50	1,030	1,550
450V (2W )	33	10 x 45	330	495	12.5 x 30	370	555
	39	10 x 50	380	570	12.5 x 35	420	630
	47				12.5 x 40	480	720
	53				12.5 x 45	500	750
	56				12.5 x 45	530	795	16 x 31.5	510	765
	68				12.5 x 50	620	930	16 x 35.5	590	885
	82							16 x 40	615	920	18 x 35.5	645	965
	100							16 x 45	715	1,070	18 x 40	750	1,125
	120										18 x 45	835	1,250
	150										18 x 50	975	1,465

PART NUMBER EXAMPLE

CADB 101 M 2P BK 160 400
