High Ripple Electrolytic Capacitors ▏5,000Hrs ▏CADA

FEATURES

Longlife, 105°C, 5,000 hoursassured
Smallersizewith largepermissibleripplecurrent
SlimType

Datasheet-For-High-Ripple-Electrolytic-Capacitors-▏5000Hrs-▏CADA.pdf (873 downloads)

SPECIFICATIONS

Items	Performance
Life	at 105 °C 5,000 Hours
Operating Temp.	400V						420 ~ 450V
	-40 °C ~ +105 °C						-25 °C ~ +105 °C
Capacitance Tolerance	+20% (at 120Hz, 20 ° C)
Leakage Current (at 20 °C)	Time		after 5 minutes
	Leakage Current		CV < 1,000 I = 0.03CV + 15(µA)					CV > 1,000 I = 0.02CV+25 ( A)
	Where C = rated capacitance in µF. V = rated DC working voltage in V.
Dissipation Factor (Tan δ at 120Hz, 20°C)	Rated Voltage		400	420	450
	Tan δ (max)		0.24	0.24	0.24
Low Temperature Characteristics (at 120Hz)	Impedance ratio shall not exceed the values given in the table below.
	Rated Voltage				400	420	450
	Impedance	Z (-25°C) / Z (+20 °C)			5	6	6
	Ratio	Z (-40°C) / Z (+20°C)			6	—	—
Load Life Test	Test Time			5,000 hrs
	Capacitance Change			Within + 20% of initial value
	Dissipation Factor			Less than 200% of specified value
	Leakage Current			Within specified value
	* The above specifications shall be satisfied when the capacitors are restored to 20 °C after the rated voltage applied with rated ripple current for 5,000 hrs at 105 °C.
	Test Time			1,000 hours
Shelf Life Test	Capacitance Change			Within + 20% of initial value
	Dissipation Factor			Less than 200% of specified value
	Leakage Current			Within specified value
	* The above specifications shall be satisfied when the capacitors are restored to 20 °C after exposing them for 1,000 hrs at 105 °C without voltage applied. The rated voltage shall be applied to the capacitors before the measurements. (Refer to JIS C 5101-4 4.1).
Ripple Current & Frequency Multipliers	Freq. (Hz)		60	120	500	1k	10k up
	Multipliers		0.80	1.00	1.25	1.40	1.50
Other Standards	JIS C 5101-4

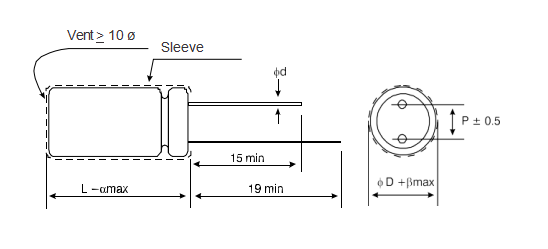

DIMENSIONS Unit: mm

φD	10	12.5	16	18
P	5.0	5.0	7.5	7.5
φd	0.6		0.8
a	2.0
R	0.5

DIMENSIONS & PERMISSIBLE RIPPLE CURRENT

V. DC	Cap. (µF)	10φ			12.5φ			16φ			18φ
		φD x L	Ripple Current		φD x L	Ripple Current		φD x L	Ripple Current		φD x L	Ripple Current
		φD x L	120 Hz	100k Hz	φD x L	120 Hz	100k Hz	φD x L	120 Hz	100k Hz	φD x L	120 Hz	100k Hz
400V (2G)	33	10 x 35	320	480
	39	10 x 40	380	570	12.5 x 30	380	570
	47	10 x 45	425	638
	56	10 x 50	490	735	12.5 x 35	475	713
	68				12.5 x 40	550	825	16 x 31.5	530	795
	82				12.5 x 45	615	923	16 x 35.5	605	908
	100				12.5 x 50	690	1,035	16 x 40	740	1,110
	120							16 x 45	795	1,193	18 x 36	730	1,095
	150							16 x 50	865	1,300	18 x 45	910	1,365
420V (2P)	33	10 x 40	350	525
	39	10 x 45	390	585	12.5 x 30	380	570
	47	10 x 50	445	668	12.5 x 35	410	615
	56				12.5 x 40	490	735	16 x 31.5	475	713
	68				12.5 x 45	560	840	16 x 35.5	550	825
	82				12.5 x 50	625	938	16 x 40	630	945
	100							16 x 45	750	1,125	18 x 36	675	1,013
	120							16 x 50	865	1,298	18 x 40 18 x 45	810 825	1,238 1,215
	150										18 x 45 18 x 50	950 950	1,425 1,425
450V (2W )	33	10 x 45	315	475	12.5 x 30	350	525
	39	10 x 50	360	545	12.5 x 35	400	600
	47				12.5 x 40	425	683	16 x 31.5	455	683
	56				12.5 x 45	500	750	16 x 35.5	560	750
	68				12.5 x 50 12.5 x 50	540 625	810 938	16 x 40 16 x 35.5	590 530	885 795
	82							16 x 45	675	1,013	18 x 36 18 x 32	645 585	968 875
	100							16 x 50	785	1,178	18 x 40 18 x 36	740 685	1,110 1,025
	120										18 x 45 18 x 40	825 790	1,238 1,185
	150										18 x 50	950	1,425

FEATURES
◆ Long life,105°C,5,000hours assured
◆ Smaller size with large permissible ripple current
◆ SlimType

◆ Rohs Compliant
