High Energy Hybrid Tantalum Capacitors|CBEJ
Tantalum case, Hermetically Sealed, Cylindrical, Radial-lead, Heteropolarity, with screws, convenient to fix Commingled by Electrolytic Tantalum Capacitor and Electrochemical Capacitor, Small size, Super Capacitance
Stable in Electrical Performances, High Reliability, Long life-span, Maximum in the Density of Capacitance and Energy, Nominal Capacitance is higher than CBEF series
Built-in as battery in Energy-conversed-circuit & Power-pulsed-circuit, functioned as filtering, storage energy,time-delay circuit.
SPECIFICATIONS
Operating Temperature：-55℃ to +125℃ (to +125℃, with rated
Storage Temperature：-62℃ ~ +130℃
Capacitance Tolerance：Q: (-10%~+30%), K: (±10%), M: (±20%)
Lead Length：(110±20)mm

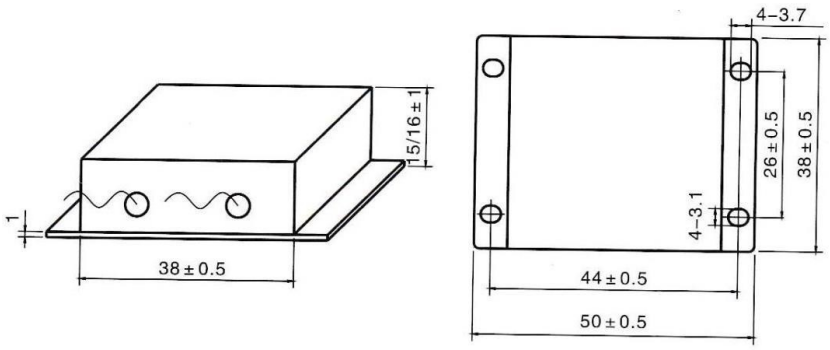

Dimensions (unit: mm)
Note
1.Please do not use multimeter through the measuring procedures (may cause irreversible damage and lead to discard).
2.Capacitance and DF measured at 100Hz, U_=2.200 V, U =1.00- V Test only applied in series equivalent circuit.
3.Voltage derating is applied at +125℃. (The DCL parameter should be read after 5 minutes when it connected to the circuit).
4.Special size and demand could consult with us.
PART NUMBER EXAMPLE
Characteristics and Application
◆Metal case, Square, Heteropolarity.
◆Commingled by Electrolytic Tantalum Capacitor and Electrochemical Capacitor, Small size, Super Capacitance
◆Stable in Electrical Performances, High Reliability, Long life-span, Maximum in the Density of Capacitance and Energy
◆Built-in as battery in Energy-conversed-circuit & Power-pulsed-circuit, functioned as filtering, storage energy, time-delay circuit.
