General Porpuse Metallized Polyaster Film Capacitor | CDAB
INTRODUCTION
CDAB Series are constructed with metalized polyester film dielectric, copperply lead and epoxy resin powder coating. They are suitable for blocking, coupling, decoupling, filtering, bypass timing circuit and ideal for use in telecommunication equipment, data processing equipment, industrial instrument, automatic control systems and other general electronic equipment.
FEATURES
◆Temperature Range: -40~115℃
◆ Capacitance Range: 0.01~10uF
◆ Capacitance Tolerance: 5% 10% 20%
◆ Rated Voltage 100VDC ~ 630VDC

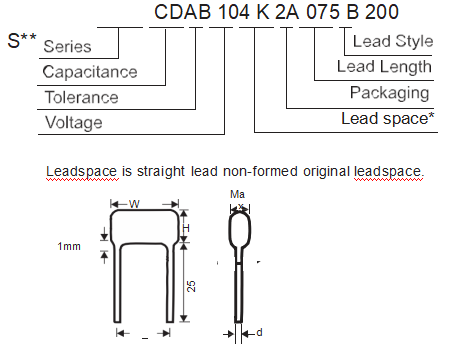

PART NUMBER EXAMPLE
TOLERANCE
| Code | Tolerance |
| J | + 5% |
| K | + 10% |
| M | + 20% |
CAPACITANCE CODE
| F | 0.01 | 0.047 | 0.1 | 0.47 | 1.0 | 4.7 | 10 |
| pF | 10000 | 47000 | 100000 | 470000 | – | – | – |
| Code | 103 | 473 | 104 | 474 | 105 | 475 | 106 |
RATED VOLTAGE
| WV | 100 | 250 | 400 | 630 |
| Code | 2A | 2E | 2G | 2J |
LEAD STYLE EXAMPLES
PACKAGING
| Meth | od | Bulk | Ammo | Reel |
| Code | B | A | R | |
TAPE CODE (Lead spacing on tape, if taped)
| Spacing | 5.0mm | 7.5mm | 10mm | 15mm |
| Packing | A or R | A or R | A | A |
| Code | RT1 | RT2 | RT3 | RT4 |
RADIAL LEAD SPACING
* Leadspace is straight lead non-formed original leadspace
| mm | 5.0 | 7.5 | 10 | 15 | 22.5 | 27.5 |
| Code | 050 | 075 | 100 | 150 | 225 | 275 |
LEAD LENGTH FROM SEATING PLANE
(Bulk Pack and is + 1mm when < 10mm, otherwise is nominal)
| mm | 5 | 10 | 15 | 20 | 25 |
| Code | 050 | 100 | 150 | 200 | 250 |
LEAD STYLE
| Code | Style |
| S | Straight |
| K | Kink-In (Stand Off) |
| F | Form Out** |
| I | Form In** |
** For Bulk packaging with formed leads, add an additional 3 digit lead spacing code at end of part number.
MAXIMUM DIMENSIONS (mm)
| W . V. | 1 0 0 V D C ( 2 A ) | 2 5 0 V D C ( 2 E ) | 4 0 0 V D C ( 2 G ) / 4 5 0 V D C ( 2 W ) | 6 3 0 V D C ( 2 J ) | |||||||||||||||||
| µ F | C o d e | W | H | T | P | d Φ | W | H | T | P | d Φ | W | H | T | P | d Φ | W | H | T | P | d Φ |
| 0 .0 1 | 1 0 3 | 13 .0 | 8 .0 | 5.0 | 10 .0 | 0 .6 | |||||||||||||||
| 0 .0 1 2 | 1 2 3 | 13 .0 | 8 .5 | 5.0 | 10 .0 | 0 .6 | |||||||||||||||
| 0 .0 1 5 | 1 5 3 | 10 .5 | 8.0 | 4 .5 | 7.5 | 0 .6 | 13 .0 | 9 .5 | 5.5 | 10 .0 | 0 .6 | ||||||||||
| 0 .0 1 8 | 1 8 3 | 10 .5 | 8.5 | 5 .0 | 7.5 | 0 .6 | 13 .0 | 11 .0 | 5.5 | 10 .0 | 0 .6 | ||||||||||
| 0 .0 2 2 | 2 2 3 | 10 .5 | 8.5 | 5 .0 | 7.5 | 0 .6 | 13 .0 | 11 .5 | 6.0 | 10 .0 | 0 .6 | ||||||||||
| 0 .0 2 7 | 2 7 3 | 10 .5 | 9.0 | 5 .5 | 7.5 | 0 .6 | 13 .0 | 12 .0 | 6.5 | 10 .0 | 0 .6 | ||||||||||
| 0 .0 3 3 | 3 3 3 | 10 .5 | 9.5 | 6 .0 | 7.5 | 0 .6 | 13 .0 | 12 .5 | 7.0 | 10 .0 | 0 .6 | ||||||||||
| 0 .0 3 9 | 3 9 3 | 10 .5 | 8 .0 | 4 .0 | 7 .5 | 0 .6 | 13 .0 | 8.5 | 4 .5 | 10 .0 | 0 .6 | 13 .0 | 14 .0 | 7.0 | 10 .0 | 0 .6 | |||||
| 0 .0 4 7 | 4 7 3 | 10 .5 | 8 .0 | 4 .5 | 7 .5 | 0 .6 | 9.5 | 7.5 | 4 .0 | 7.5 | 0 .6 | 13 .0 | 9 .0 | 5 .5 | 10 .0 | 0 .6 | |||||
| 13 .0 | 9.0 | 5 .0 | 10 .0 | 0 .6 | |||||||||||||||||
| 0 .0 5 6 | 5 6 3 | 10 .5 | 8 .5 | 5 .0 | 7 .5 | 0 .6 | 13 .0 | 9.5 | 5 .5 | 10 .0 | 0 .6 | 18 .5 | 11 .0 | 5.5 | 15 .0 | 0 .8 | |||||
| 0 .0 6 8 | 6 8 3 | 10 .5 | 8 .5 | 5 .0 | 7 .5 | 0 .6 | 13 .0 | 11 .0 | 5 .5 | 10 .0 | 0 .6 | 18 .5 | 11 .5 | 6.0 | 15 .0 | 0 .8 | |||||
| 0 .0 8 2 | 8 2 3 | 10 .5 | 9 .5 | 5 .5 | 7 .5 | 0 .6 | 13 .0 | 11 .5 | 5 .5 | 10 .0 | 0 .6 | 18 .5 | 12 .0 | 6.5 | 15 .0 | 0 .8 | |||||
| 0 .1 | 1 0 4 | 10 .5 | 7 .5 | 4.0 | 7 .5 | 0 .6 | 10 .5 | 10 .0 | 6 .0 | 7 .5 | 0 .6 | 12 .0 | 9.0 | 5 .0 | 10 .0 | 0 .6 | 18 .5 | 12 .0 | 6.0 | 15 .0 | 0 .8 |
| 0 .1 2 | 1 2 4 | 10 .5 | 7 .5 | 4.0 | 7 .5 | 0 .6 | 10 .5 | 10 .5 | 6 .5 | 7 .5 | 0 .6 | 18 .5 | 10 .5 | 5 .0 | 15 .0 | 0 .8 | 18 .5 | 14 .5 | 7.0 | 15 .0 | 0 .8 |
| 0 .1 5 | 1 5 4 | 10 .5 | 8 .0 | 4.5 | 7 .5 | 0 .6 | 10 .5 | 11 .0 | 7 .0 | 7 .5 | 0 .6 | 18 .5 | 11 .5 | 5 .5 | 15 .0 | 0 .8 | 18 .5 | 15 .5 | 8.0 | 15 .0 | 0 .8 |
| 0 .1 8 | 1 8 4 | 10 .5 | 8 .5 | 5.0 | 7 .5 | 0 .6 | 13 .0 | 9 .0 | 4 .5 | 10 .0 | 0 .6 | 18 .5 | 12 .0 | 6 .0 | 15 .0 | 0 .8 | 18 .5 | 16 .0 | 8.5 | 15 .0 | 0 .8 |
| 0 .2 2 | 2 2 4 | 10 .5 | 8 .5 | 5 .0 | 7 .5 | 0 .6 | 10 .3 | 11 .0 | 6 .1 | 7 .5 | 0 .6 | 11 .3 | 4.3 | 7 .0 | 10 .0 | 0 .8 | 11 .3 | 11 .3 | 7.0 | 10 .0 | 0 .6 |
| 13 .0 | 11 .0 | 5 .0 | 10 .0 | 0 .6 | 18 .5 | 13 .5 | 6 .0 | 15 .0 | 0 .8 | 18 .5 | 16 .5 | 9.0 | 15 .0 | 0 .8 | |||||||
| 0 .2 7 | 2 7 4 | 10 .5 | 9 .5 | 5.5 | 7 .5 | 0 .6 | 13 .0 | 11 .5 | 6 .0 | 10 .0 | 0 .6 | 18 .5 | 14 .0 | 7 .0 | 15 .0 | 0 .8 | 26 .5 | 16 .5 | 7.5 | 22 .5 | 0 .8 |
| 0 .3 3 | 3 3 4 | 10 .5 | 10 .0 | 6 .0 | 7 .5 | 0 .6 | 12 .0 | 12 .0 | 6 .5 | 7 .5 | 0 .6 | 12 .0 | 12 .0 | 7 .5 | 10 .0 | 0 .6 | 26 .5 | 17 .0 | 8 .5 | 22 .5 | 0 .8 |
| 13 .0 | 12 .0 | 6 .5 | 10 .0 | 0 .6 | 18 .5 | 15 .0 | 7 .5 | 15 .0 | 0 .8 | ||||||||||||
| 0 .3 9 | 3 9 4 | 10 .5 | 10 .5 | 6.0 | 7 .5 | 0 .6 | 18 .0 | 9 .0 | 5 .0 | 15 .0 | 0 .6 | 18 .5 | 15 .5 | 8 .5 | 15 .0 | 0 .8 | 26 .5 | 17 .0 | 9.0 | 22 .5 | 0 .8 |
| 0 .4 7 | 4 7 4 | 10 .5 | 12 .0 | 6.0 | 7 .5 | 0 .6 | 18 .5 | 13 .0 | 5 .5 | 15 .0 | 0 .8 | 18 .5 | 17 .5 | 8 .5 | 15 .0 | 0 .8 | 26 .5 | 18 .0 | 10 .0 | 22 .5 | 0 .8 |
| 0 .5 6 | 5 6 4 | 13 .0 | 11 .0 | 5.5 | 10 .0 | 0 .6 | 18 .5 | 13 .0 | 6 .0 | 15 .0 | 0 .8 | 26 .0 | 16 .0 | 7 .5 | 22 .5 | 0 .8 | 26 .5 | 18 .0 | 11 .0 | 22 .5 | 0 .8 |
| 0 .6 8 | 6 8 4 | 13 .0 | 11 .5 | 6.0 | 10 .0 | 0 .6 | 18 .5 | 13 .5 | 6 .0 | 15 .0 | 0 .8 | 26 .0 | 17 .0 | 8 .0 | 22 .5 | 0 .8 | 26 .0 | 21 .5 | 12 .5 | 22 .5 | 0 .8 |
| 0 .8 2 | 8 2 4 | 13 .0 | 13 .0 | 6.0 | 10 .0 | 0 .6 | 18 .5 | 14 .0 | 7 .0 | 15 .0 | 0 .8 | 26 .0 | 17 .5 | 9 .0 | 22 .5 | 0 .8 | 31 .0 | 21 .0 | 12 .0 | 27 .5 | 0 .8 |
| 1 | 1 0 5 | 13 .0 | 14 .0 | 6.5 | 10 .0 | 0 .6 | 18 .5 | 15 .0 | 8 .5 | 15 .0 | 0 .8 | 26 .0 | 18 .5 | 1 0 .0 | 22 .5 | 0 .8 | 31 .0 | 22 .0 | 13 .5 | 27 .5 | 0 .8 |
| 1 .2 | 1 2 5 | 18 .5 | 12 .5 | 5.5 | 15 .0 | 0 .8 | 18 .5 | 15 .5 | 8 .5 | 15 .0 | 0 .8 | 26 .0 | 20 .0 | 1 1 .0 | 22 .5 | 0 .8 | 31 .0 | 23 .5 | 15 .0 | 27 .5 | 0 .8 |
| 1 .5 | 1 5 5 | 18 .5 | 13 .5 | 6.0 | 15 .0 | 0 .8 | 18 .5 | 16 .5 | 9 .5 | 15 .0 | 0 .8 | 31 .0 | 19 .5 | 1 1 .0 | 27 .5 | 0 .8 | 31 .0 | 26 .5 | 16 .0 | 27 .5 | 0 .8 |
| 1 .8 | 1 8 5 | 18 .5 | 14 .0 | 6.5 | 15 .0 | 0 .8 | 26 .0 | 16 .0 | 7 .5 | 22 .5 | 0 .8 | 31 .0 | 21 .0 | 1 2 .0 | 27 .5 | 0 .8 | 31 .0 | 28 .0 | 18 .0 | 27 .5 | 0 .8 |
| 2 .2 | 2 2 5 | 18 .5 | 15 .0 | 7.0 | 15 .0 | 0 .8 | 26 .0 | 17 .0 | 8 .5 | 22 .5 | 0 .8 | 31 .0 | 23 .5 | 1 3 .0 | 27 .5 | 0 .8 | 31 .0 | 30 .5 | 20 .0 | 27 .5 | 0 .8 |
| 2 .7 | 2 7 5 | 18 .5 | 16 .0 | 7.5 | 15 .0 | 0 .8 | 26 .0 | 18 .0 | 9 .5 | 22 .5 | 0 .8 | ||||||||||
| 3 .3 | 3 3 5 | 18 .5 | 16 .5 | 8.5 | 15 .0 | 0 .8 | 26 .0 | 19 .0 | 10 .5 | 22 .5 | 0 .8 | ||||||||||
| 3 .9 | 3 9 5 | 26 .0 | 16 .0 | 7.0 | 22 .5 | 0 .8 | 26 .0 | 21 .5 | 10 .5 | 22 .5 | 0 .8 | ||||||||||
| 4 .7 | 4 7 5 | 26 .0 | 17 .0 | 7.5 | 22 .5 | 0 .8 | 26 .0 | 22 .0 | 12 .0 | 22 .5 | 0 .8 | ||||||||||
| 5 .6 | 5 6 5 | 26 .0 | 17 .5 | 8.0 | 22 .5 | 0 .8 | 31 .0 | 22 .0 | 12 .0 | 27 .5 | 0 .8 | ||||||||||
| 6 .8 | 6 8 5 | 26 .0 | 18 .5 | 9.0 | 22 .5 | 0 .8 | 31 .0 | 23 .5 | 13 .0 | 27 .5 | 0 .8 | ||||||||||
| 8 .2 | 8 2 5 | 26 .0 | 20 .0 | 10 .0 | 22 .5 | 0 .8 | 31 .0 | 25 .0 | 14 .5 | 27 .5 | 0 .8 | ||||||||||
| 1 0 | 1 0 6 | 26 .0 | 21 .0 | 11 .5 | 22 .5 | 0 .8 | 31 .0 | 26 .5 | 16 .5 | 27 .5 | 0 .8 | ||||||||||

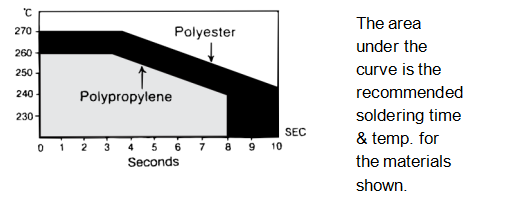

SOLDERING

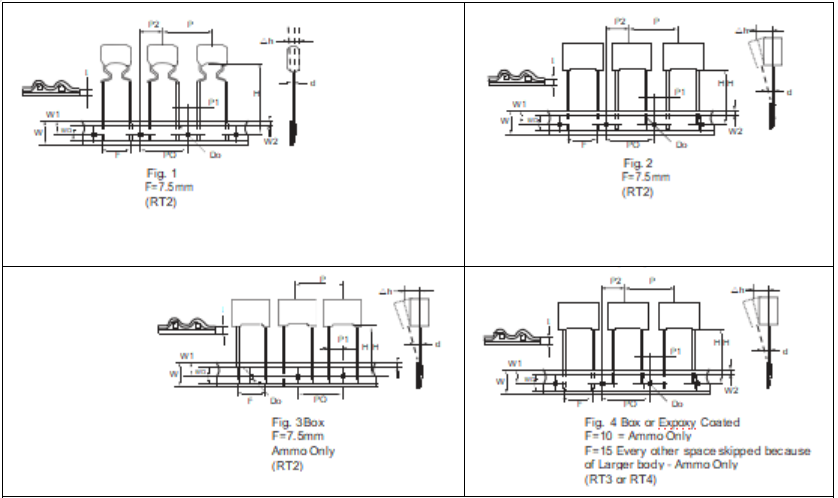

RADIAL TAPING CODE DIAGRAM
SPECIFICATIONS
| Description |
Letter |
Dimension (mm) | |||
| RT2 | RT3 | RT4 | Tol. | ||
| Lead Wire Diameter | d | 0.5 / 0.6 | 0.6 | 0.6 / 0.8 | + 0.05 |
| Tape Pitch | P | 12.7 | 12.7 | 25.4 | + 1 |
| Feed Hole Pitch | PO | 12.7 | 12.7 | 12.7 | + 0.2 |
| Centering of the Lead Wire | P1 | 2.6 / 3.75 | 7.7 | 5.2 | + 0.7 |
| Centering of the Body | P2 | 6.35 | 12.7 | 12.7 | + 1.3 |
| Lead Spacing (Pitch) | F | 7.5 | 10 | 15 | + 0.6; -0.1 |
| Component Alignment | Δh | 0 | 0 | 0 | + 2 |
| Height of Componenet from Tape Center | H | 18.5 | 18.5 | 18.5 | + 0.5 |
| Carrier Tape Width | W | 18 | 18 | 18 | + 1; -0.5 |
| Hold Down Tape Width | WO | 6 | 9 | 10 | Min |
| Hole Position | W1 | 9 | 9 | 9 | + 0.5 |
| Hold Down Tape Position | W2 | 3 | 3 | 3 | Max |
| Feed Hole Diameter | Do | 4 | 4 | 4 | + 0.2 |
| Tape Thickness | t | 0.5 | 0.5 | 0.5 | + 0.2 |
| Figure | fig | 1.2 or 3 | 4 | 4 | |
Remark: *Allowance of accumulated pitch less than 1mm at the sum of 20 pitches.
*Continuous empty component less than 3 consecutive pieces.
*Total empty on one reel less than 1%.
