General Electrolytic Capacitors ▏85 ℃2,000~3,000Hrs ▏CAFB

FEATURES
85℃, 2000hrs for Dia < 8mm, 3000hrs Dia > 10mm
Standard series for general purpose
Replaces RC, RE & RH Series

Datasheet-For-General-Electrolytic-Capacitors-▏85-℃20003000Hrs-▏CAFB.pdf (756 downloads)

SPECIFICATIONS

Item	Performance
Operating Temp.	-40°C ~ +85°C
Capacitance Tolerance	± 20% (120Hz, 20°C)
Leakage Current (at 20°C)	Rated Voltage	< 100V									>100V
	Time	After 2 minutes									After 5 minutes
	Leakage Current	I = 0.01CV or 3 (μA) whichever is greater									CV < 1000 I = 0.03CV + 15(μA)										CV > 1000 I = 0.02CV + 25(μA)
	Where C = rated capacitance in F. V = rated DC working volatage in V.
	Rated Voltage	6.3	10		16		25			35		50		63			100		160		200		250		350		400		450
Dissipation Factor Tanδ at 120Hz, 20°C	Tan δ (max)	0.23	0.20		0.16		0.14			0.12		0.10		0.09			0.08		0.12		0.14		0.17		0.20		0.25		0.25
	When the capacitance exceeds 1000μF, 0.02 shall be added for every 1000μF increase.
Low Temperature Characteristics (at 120Hz)	Impedance ratio shall not exceed the values given in the table below.
	Rated Voltage					6.3			10		16	25	35		50			63	100	160		200		250		350		400	550
	Impedance Radio	Z(-25°C)		φD<16		6			4		3	3	2		2			2	2	3		6		8		12		14	16
		/Z(+20°C)		φD>16		8			6		4	4	3		3			3	3
		Z(-40°C)		φD<16		10			8		6	6	4		3			3	3	4		8		10		10		10	10
		/Z(+20°C)		φD>16		18			16		12	10	8		8			6	6
Load Life test at 20°C (after rated voltage is applied at 85°C for 2000	Test Time	2000hrs(3000hrs for φ D > 10mm)									Shelf Life at 20°C after exposure to 85 for 1000 hours with					Test Time						1000hrs
	Capacitance Change	Within < ±20% of initial value														Capacitance Change						Within < ±20% of initial value
	Dissipation Factor	Less than 200% of specific value														Dissipation Factor						Less than 200% of specific value
/ 3000 hours)	Leakage Current	Within specified value									no voltage					Leakage Current						Within specified value
Ripple Current & Frequency Multipliers	Freq. (Hz) Cap. (μF)	60 (50)		120				500				1K			10K up
	Under 100	0.70		1.00				1.30				1.40			1.50
	100 to 1000	0.75		1.00				1.20				1.30			1.35
	1000 and above	0.80		1.00				1.10				1.12			1.15
Ripple Current & Temperature Multipliers	Temperature (°C)	Under 50		70				85
	Mutipliers	1.78		1.4				1.00
Standards	Satisfies Characteristic W of JIS C 5141

DIMENSION & PERMISSIBLE RIPPLE CURRENT

Ripple Current :mA/rms at 120Hz, 85°C

V.DC µ F Code		6.3V (OJ)		10V (1A)		16V (1C)		25V (1E)		35V (1V)		50V (1H)		63V (1J)		100V (2A)
V.DC µ F Code		ΦD x L	mA	ΦD xL	mA	ΦD x L	mA	ΦD x L	mA	ΦD x L	mA	ΦD x L	mA	ΦD x L	mA	ΦD x L	mA
0.1	0R1											5 x 11	1.5	5 x 11	3	5 x 11	3
0.2	R22											5 x 11	3.5	5 x 11	5	5 x 11	5.8
0.3	R33											5 x 11	5	5 x 11	8	5 x 11	8.8
0.5	R47											5 x 11	7	5 x 11	10	5 x 11	12
1.0	10											5 x 11	15	5 x 11	17	5 x 11	22
2.2	2R2											5 x 11	29	5 x 11	28	5 x 11	33
3.3	3R3											5 x 11	35	5 x 11	34	5 x 11	40
4.7	4R7							5 x 11	31	5 x 11	40	5 x 11	42	5 x 11	45	5 x 11	48
10	100					5 x 11	49	5 x 11	54	5 x 11	58	5 x 11	65	5 x 11	70	5 x 11 6.3 x 11	59 80
22	220			5 x 11	70	5 x 11	75	5 x 11	80	5 x 11	87	5 x 11	95	6.3 x 11	115	6.3 x 11 8 x 11.5	115 135
33	330	5 x 11	72	5 x 11	84	5 x 11	90	5 x 11	97	5 x 11 6.3 x 11	108 115	5 x 11 6.3 x 11	136 163	6.3 x 11 8 x 11.5	140 340	8 x 11.5 10 x 16	145 195
47	470	5 x 11	90	5 x 11	100	5 x 11	110	5 x 11	115	5 x 11 6.3 x 11	130 145	6.3 x 11	165	6.3 x 11 8 x 11.5	170 397	10 x 13 10 x 16	235 255

DIMENSION & PERMISSIBLE RIPPLE CURRENT

Ripple Current :mA/rms at 120Hz, 85°C

* = Flat (non-vented) rubber bung.

Other units are made with raised (vented) rubber bung

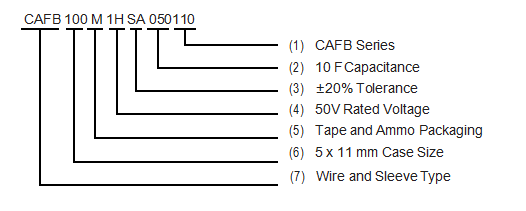

PART NUMBER EXAMPLE

CAFB 471 M 1C BK 100 125

LEAD SPACING AND DIAMETER

φD	5	6.3	8	10	13	16	18	22	25
P	2.0	2.5	3.5	5.0	5.0	7.5	7.5	10	12.5
φd	0.5		0.6			0.8		1.0
α	1.0			1.5				2.0
β	0.5

HOW TO MAKE A PART NUMBER

Series:CAFB

Capacitance: Rated capacitance in µF is represented by a three digit number. The first two digits are the significant figures of the nominalcapacitance and the third digit indicates the number of zeros following these The decimal point is represented by the capital letter R. Please refer to the following example.

µF 0.1 0.47 1 4.7 10 47 100 470 1000 4700 10000

Part Number 0R1 R47 010 4R7 100 470 101 471 102 472 103
Tolerance: (20% ISTypical)

Code K M T W

Tolerance + 10% + 20% + 50% /-10% + 100% /-10%
Rated Voltage: Voltage in volts (V) is represented by a two digit code showing the rated working voltage indicated asfollows:

Voltage (WV) 6.3 10 16 25 35 40 50 63 80 100 160 200 250 350 400 450

Code 0J 1A 1C 1E 1V 1G 1H 1J 1K 2A 2C 2D 2E 2V 2G 2W

Lead Forming &Package

Code	Lead Description	Packaging
BC	Bending Cut	Bulk Packing
BK	Straight Lead	Bulk Packing
CC	Lead Cutting	Bulk Packing
FC	Lead Forming & Cutting	Bulk Packing
FF	Lead Forming	Bulk Packing
SC	Snap-in & Cutting	Bulk Packing
SD	Cathode Lead Beading	Bulk Packing
SF	Snap-in, Forming & Cutting	Bulk Packing
SA	Straight Lead	Tape & Ammo
TA	Lead Forming	Tape & Ammo
SR	Straight Lead	Tape & Reel
TR	Lead Forming	Tape & Reel

CanSize

Diameter (mm)x10 & Length (mm)x10. Can Size 063110, represents 6.3mm diameter by 11mm length.

Wire and SleeveType*

= (Omit) Lead (Pb) Free Wire & PVC Sleeve

`P = Lead (Pb) Free Wire & PET Sleeve

*Note: All standard RFE Aluminum Electrolytic Capacitors are Lead (Pb) free and RoHS compliant. PET sleeve is available for those companies

that also require PVC free product.

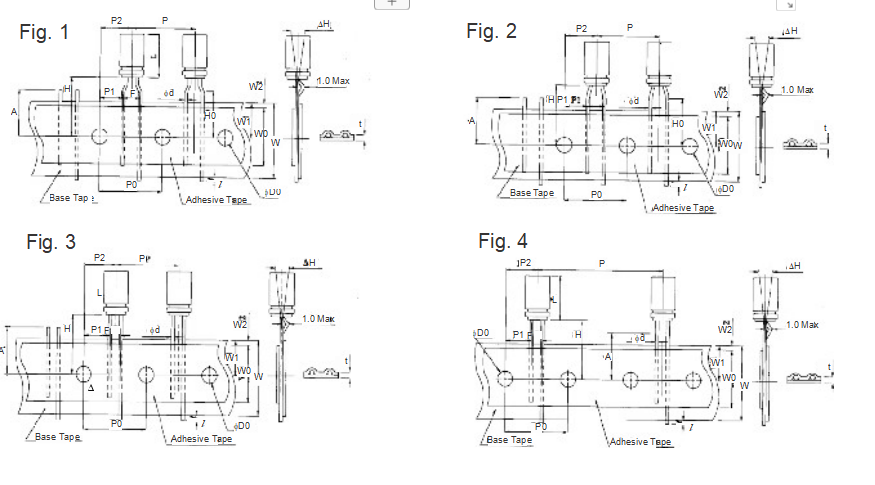

LEADED TAPING & PACKAGING SPECIFICATIONS

Taping Specification for Radial Lead Type

Packing	TA,TR (Fig. 1)								SA, SR (Fig. 2, 3, 4)
L	L ≤ 7mm					L ≥ 7mm			L ≤ 7mm					L ≥ 7mm
fD Symbol	f 3	f 4	f 5	f6.3	f 8	f 5	f 6.3	f 8	f 3	f 4	f 5	f 6.3	f 8	f 5	f 6.3	f 8	Tol.	f 10	f 13	Tol.
fd	0.4	0.45	0.5	0.5	0.5	0.5	0.5	0.6	0.4	0.45	0.45	0.45	0.45	0.5	0.5	0.6	± 0.05	0.6	0.6	± 0.05
F	5.0	5.0	5.0	5.0	5.0	5.0	5.0	5.0	2.5	2.5	2.5	2.5	3.5	2.5	2.5	3.5	-0.2/+0.8	5.0	5.0	-0.2/+0.8
P	12.7	12.7	12.7	12.7	12.7	12.7	12.7	12.7	12.7	12.7	12.7	12.7	12.7	12.7	12.7	12.7	± 1.0	12.7	25.4	± 1.0
P0	12.7	12.7	12.7	12.7	12.7	12.7	12.7	12.7	12.7	12.7	12.7	12.7	12.7	12.7	12.7	12.7	± 0.2	12.7	12.7	± 0.30
P2	6.35	6.35	6.35	6.35	6.35	6.35	6.35	6.35	6.35	6.35	6.35	6.35	6.35	6.35	6.35	6.35	± 1.0	6.35	6.35	± 1.3
P1	3.85	3.85	3.85	3.85	3.85	3.85	3.85	3.85	5.1	5.1	5.1	5.1	4.6	5.1	5.1	4.6	± 0.5	3.85	3.85	± 0.7
H	17.5	17.5	17.5	17.5	17.5	18.5	18.5	20.0	17.5	17.5	17.5	17.5	17.5	18.5	18.5	18.5	± 0.75	18.5	18.5	± 0.75
H0	16.0	16.0	16.0	16.0	16.0	16.0	16.0	16.0	—	—	—	—	—	—	—	—	± 0.5	—	—	± 0.5
W	18.0	18.0	18.0	18.0	18.0	18.0	18.0	18.0	18.0	18.0	18.0	18.0	18.0	18.0	18.0	18.0	± 0.5	18.0	18.0	± 0.5
W0	12.0	12.0	12.0	12.0	12.0	12.0	12.0	12.0	12.0	12.0	12.0	12.0	12.0	12.0	12.0	12.0	Min	12.0	12.0	Min.
W1	9.0	9.0	9.0	9.0	9.0	9.0	9.0	9.0	9.0	9.0	9.0	9.0	9.0	9.0	9.0	9.0	± 0.5	9.0	9.0	± 0.5
W2	1.5	1.5	1.5	1.5	1.5	1.5	1.5	1.5	1.5	1.5	1.5	1.5	1.5	1.5	1.5	1.5	Max.	1.5	1.5	Max.
f D0	4.0	4.0	4.0	4.0	4.0	4.0	4.0	4.0	4.0	4.0	4.0	4.0	4.0	4.0	4.0	4.0	± 0.2	4.0	4.0	± 0.2
t	0.7	0.7	0.7	0.7	0.7	0.7	0.7	0.7	0.7	0.7	0.7	0.7	0.7	0.7	0.7	0.7	± 0.2	0.7	0.7	± 0.2
H	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	± 1.0	0	0	± 1.0
l	1.0	1.0	1.0	1.0	1.0	1.0	1.0	1.0	1.0	1.0	1.0	1.0	1.0	1.0	1.0	1.0	Max.	1.0	1.0	Max.
A	11	11	11	11	11	11	11	11	11	11	11	11	11	11	11	11	Max.	11	11	Max.
Fig. No.	1	1	1	1	1	1	1	1	2	2	2	3	3	2	3	3		3	3,4

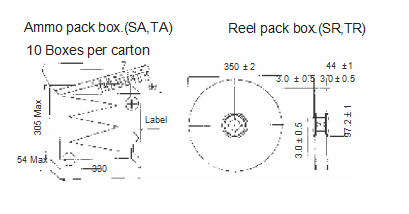

Packaging Quantity

D	3	4	5	6.3	8	10	13
TA, SA	3000	2000	2000	2000	1000	500	250
TR,SR	3000	1500	1200	1000	800	500	500

NOTES:

The above quantities are typical. Quantities may
The component will be oriented on the tape so that the positive lead is leading or the negative lead is leading, depending on the customer’srequest

FEATURES
◆ 2000hrs(3000hrs for φ D > 10mm) assured
◆  SlimType

◆ Rohs Compliant

µF	0.1	0.47	1	4.7	10	47	100	470	1000	4700	10000
Part Number	0R1	R47	010	4R7	100	470	101	471	102	472	103

Code	K	M	T	W
Tolerance	+ 10%	+ 20%	+ 50% /-10%	+ 100% /-10%
