General Electrolytic Capacitors ▏105 ℃▏400~450V ▏CAFA

FEATURES

Longlife, 105 ℃, 2,000 hours assured
Smaller size with large permissible ripplecurrent
SlimType

Datasheet-For-General-Electrolytic-Capacitors-▏105-℃▏400450V-▏CAFA.pdf (971 downloads)

SPECIFICATIONS

Items	Performance
Life	at 105 °C 2000 Hours
Operating Temp	400V				420 ~ 450V
	-40 °C ~ +105 °C				-25 °C ~ +105 °C
Capacitance Tolerance	+20% (at 120Hz, 20 °C)
Leakage Current (at 20 °C)	Time		after 5 minutes
	Leakage Current		CV < 1,000 I = 0.03CV + 15(µA)			CV > 1,000 I = 0.02CV+25 (µA)
	Where C = rated capacitance in µF. V = rated DC working voltage in V
Dissipation Factor (Tan δ at 120Hz, 20°C)	Rated Voltage		400	420	450
	Tan δ (max)		0.24	0.24	0.24
Low Temperature Characteristics (at 120Hz)	Impedance ratio shall not exceed the values given in the table below
	Rated Voltage			400	420	450
	Impedance	Z (-25°C) / Z (+20 °C)		5	6	6
	Ratio	Z (-40°C) / Z (+20°C)		6	—	—
Load Life Test	Test Time		2,000 hrs
	Capacitance Change		Within + 20% of initial value
	Dissipation Factor		Less than 200% of specified value
	Leakage Current		Within specified value
	* The above specifications shall be satisfied when the capacitors are restored to 20 °C after the rated voltage applied with rated ripple current for 2,000 hrs at 105 °C
	Test Time		1,000 hours
Shelf Life Test	Capacitance Change		Within + 20% of initial value
	Dissipation Factor		Less than 200% of specified value
	Leakage Current		Within specified value
	* The above specifications shall be satisfied when the capacitors are restored to 20 °C after exposing them for 1,000 hrs at 105 °C without voltage applied. The rated voltage shall be applied to the capacitors before the measurements. (Refer to JIS C 5101-4 4.1)
Ripple Current & Frequency Multipliers	Freq. (Hz)		60	120	500	1k	10k up
	Multipliers		0.80	1.00	1.25	1.45	1.50
Other Standards	JIS C 5101-4

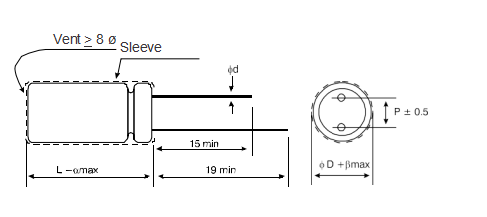

DIMENSIONS

Unit: mm

φD	8	10	12.5	16	18
P	3.5	5.0	5.0	7.5	7.5
φd	0.6			0.8
a	2.0
R	0.5

DIMENSIONS & PERMISSIBLE RIPPLE CURRENT

V. DC	Cap . (µF )	8φ			10φ			12.5φ			16φ			18φ
		φD x L	Ripple Current		φ D x L	Ripple Current		φ D x L	Ripple Current		φ D x L	Ripple Current		φ D x L	Ripple Current
		φD x L	120 Hz	100k Hz	φ D x L	120 Hz	100k Hz	φ D x L	120 Hz	100k Hz	φ D x L	120 Hz	100k Hz	φ D x L	120 Hz	100k Hz
400V (2G)	15	8 x 30	190	285
	22	8 x 35	250	375
	27	8 x 40	300	450	10 x 30	245	370
	33	8 x 45	350	525	10 x 35	295	445
	39	8 x 50	390	585	10 x 40	345	515
	47				10 x 45	400	600
	56				10 x 50	450	675	12.5 x 30	470	705
	68							12.5 x 35	540	810
	82							12.5 x 40	620	930
	100
	120										16 x 35.5 16 x 40	800 840	1,200 1,260
	150										16 x 45	940	1,410
	180										16 x 50	1050	1,575	18 x 40	1,060	1,590
	220													18 x 45	1,200	1,800
420V (2P)	15	8 x 30	195	293
	22	8 x 35	255	383
	27	8 x 45	320	480	10 x 30	245	370
	33	8 x 50	370	555	10 x 35	295	445
	39				10 x 40	345	515
	47				10 x 45	400	600
	56				10 x 50	450	675	12.5 x 30	470	705
	68							12.5 x 35	540	810
	82							12.5 x 45	630	945
	100							12.5 x 50	730	1,095	16 x 35.5	730	1,095
	120										16 x 40	840	1,260
	150										16 x 45	940	1,410	18 x 35.5	920	1,380
	180										16 x 50	1,050	1,575	18 x 40	1,060	1,590
	220													18 x 50	1,220	1,830
450V (2W)	15	8 x 30	195	293
	22	8 x 40	270	405	10 x 30	225	330
	27	8 x 45	320	480	10 x 35	265	400
	33	8 x 50	370	555	10 x 40	315	475
	39				10 x 45	360	545
	47				10 x 50	420	625	12.5 x 30	430	645
	56							12.5 x 35	490	735
	68							12.5 x 40	560	840
	82							12.5 x 45	630	945
	100							12.5 x 50	730	1,095	16 x 35.5	730	1,095
	120										16 x 45	840	1,260	18 x 35.5	820	1,230
	150										16 x 50	980	1,470	18 x 40	970	1,455
	150													18 x 45	995	1,490
	180													18 x 45	1,090	1,635
	180													18 x 50	1,140	1,710

PART NUMBER EXAMPLE

CAFA 560 M 2G BK 125 300
