SMD Aluminum Electrolytic Capacitors ▏AEC-Q200 ▏CAGC

FEATURES
Standard 105℃, 2,000 hours assured
Voltage Range 6.3 Vdc ~ 450Vdc, 4Φ ~ 18Φ
Capacitance Range 1µF ~ 8,200 µF
Automotive version available, TS-16949

Datasheet-For-SMD-Aluminum-Electrolytic-Capacitors-▏AEC-Q200-▏CAGC.pdf (1021 downloads)

PART NUMBER EXAMPLE

SPECIFICATIONS

Items	Performance
Operating Temperature Range	6.3 ~ 100V							160 ~ 450V
	-55 ˚C ~ +105˚C							-40˚C ~ +105˚C
Capacitance Tolerance	Standard (+20% (at 120Hz, 20˚C), Option + 10% (at 120Hz, 20°C)
Leakage Current(at 20˚C)	Rated Voltage	6.3 ~ 100V							160 ~ 450V
	Time	after 2 minutes							after 5 minutes
	Case Size	4 ~ 10ɸ					12.5 ~ 18ɸ				12.5 ~ 18ɸ
	Leakage Current	I = 0.01CV or 3 A, whichever is greater					I = 0.03CV or 4 A, whichever is greater					I = 0.04CV + 100 A
	Where, C = rated capacitance in µF V = rated DC working voltage in V
Dissipation Factor (Tan δ at 120Hz, 20˚C)	Rated Voltage	6.3	10	16	25	35	50	63	100	160 ~ 250	400 ~ 450
	4 ~ 10	0.45	0.35	0.28	0.18	0.16	0.14	0.12	0.12	–	–
	12.5 ~ 18	0.40	0.38	0.34	0.26	0.22	0.18	0.14	0.10	0.20	0.25
	When the capacitance exceeds 1,000µF, 0.02 shall be added every 1,000µF increase.
Low Temperature Characteristics (at 120Hz)	Impedance ratio shall not exceed the values given in the table below.
	Rated Voltage					6.3	10	16	25	35	50	63	100	160 ~ 250	400 ~ 450
	Impedance Ratio	Z (-25˚C)/Z(+20˚C)			ɸD < 12.5	4	4	3	2	2	2	2	3	–	–
					ɸD < 12.5	5	4	3	2	2	2	2	2	3	6
		Z(-55/-40˚C)/Z(+20˚C)			ɸD < 12.5	12	8	6	4	3	3	3	4	–	–
					ɸD < 12.5	10	8	6	4	3	3	3	3	6	10
Endurance	Test Time		2,000 Hrs
	Capacitance Change		Within +25% of initial value for ɸ D < 6.3mm; Within + 20% of initial value for ɸ D > 8mm
	Dissipation Factor		Less than 300% of specified value for ɸ D < 6.3mm; less than 200% of specified value for ɸ D > 8mm
	Leakage Current		Within specified value
	∗The above specifications shall be satisfied when the capacitors are restored to 20˚C after the rated voltage applied for 2,000 hrs at 105˚C
Shelf Life Test	Test Time: 1,000 hrs; other items are the same as those for the Endurance. The rated voltage shall be applied to the capacitors before the measurements for 160 ~ 450V (Refer to JIS C 5101-4 4.1).
Ripple Current & Frequency Multipliers	Freq. (Hz) Cap. (µF)		50		120		1k		10k up
	Under 1,000		0.80		1.00		1.25		1.40
	1,000 < C < 8,200		0.85		1.00		1.15		1.25

DIMENSION & PERMISSIBLE RIPPLE CURRENT

µF	V.DC	6.3V (0J)		10V (1A)		16V (1C)		25V (1E)		35V (1V)		50V (1H)		63V (1J)		100V (2A)
µF	Code	ΦD x L	mA	ΦD x L	mA	ΦD x L	mA	ΦD x L	mA	Φ D x L	mA	Φ D xL	mA	ΦD x L	mA	ΦD x L	mA
1	010											4 x 5.7	8	4 x 5.7	8
2.2	2R2											4 x 5.7	12	4 x 5.7	12
3.3	3R3											4 x 5.7	14	5 x 5.7	17
4.7	4R7							4 x 5.7	17	4 x 5.7	17	5 x 5.7	20	6.3 x 5.7	22
10	100					4 x 5.7	20	4 x 5.7	20	5 x 5.7	27	6.3 x 5.7	32	6.3 x 5.7	32
22	220	4 x 5.7	22	4 x 5.7	22	5 x 5.7	30	5 x 5.7	30	6.3 x 5.7	44	6.3 x 5.7	38	6.3 x 7.7	58	8 x 10	100
33	330	5 x 5.7	34	5 x 5.7	34	5 x 5.7	34	6.3 x 5.7	46	6.3 x 5.7	46	6.3 x 7.7	65	8 x 10	140	10 x 10	150
47	470	5 x 5.7	38	5 x 5.7	38	6.3 x 5.7	48	6.3 x 5.7	48	6.3 x 7.7	80	6.3 x 7.7	70	8 x 10	170	12.5 x 13.5	250
100	101	6.3 x 5.7	69	6.3 x 5.7	69	6.3 x 5.7	69	6.3 x 7.7	100	8 x 10	240	8 x 10	210	10 x 10.3	310	12.5 x 13.5	380
220	221	6.3 x 7.7	120	6.3 x 7.7	120	6.3 x 7.7	120	8 x 10 10 x 7.7	270 270	8 x 10	270	10 x 10.3	330	12.5 x 13.5	470	16 x 16.5	450
330	331	8 x 10	290	8 x 10	290	8 x 10 10 x 7.7	290 290	8 x 10	290	10 x 10	370	12.5 x 13.5	490	16 x 16.5	650	18 x 16.5 16 x 21.5	590 750
470	471	8 x 10	320	8 x 10 10 x 7.7	320 320	10 x 10	380	10 x 10	380	12.5 x 13.5	520	12.5 x 16	550	16 x 16.5	700	18 x 21.5	980
1,000	102	10 x 10	410	10 x 10.3	410	12.5 x 13.5	550	12.5 x 16	550	16 x 16.5	800	18 x 16.5	990
2,200	222	12.5 x 13.5	680	12.5 x 13.5	680	16 x 16.5	900	16 x 16.5	900	18 x 16.5	1,050
3,300	332	12.5 x 16	850	16 x 16.5	950	16 x 16.5	950	18 x 16.5 16 x 21.5	1,150 1,200
3,300	332	12.5 x 16	850	16 x 16.5	950	16 x 16.5	950	18 x 16.5 16 x 21.5	1,150 1,200
4,700	472	16 x 16.5	1,000	16 x 16.5	1,000	18 x 16.5 16 x 21.5	1,225 1,275	18 x 21.5	1,300
4,700	472	16 x 16.5	1,000	16 x 16.5	1,000	18 x 16.5 16 x 21.5	1,225 1,275	18 x 21.5	1,300
6,800	682	18 x 16.5 16 x 21.5	1,290 1,350	18 x 16.5 16 x 21.5	1,290
6,800	682	18 x 16.5 16 x 21.5	1,290 1,350	18 x 16.5 16 x 21.5	1,350
8,200	822	18 x 21.5	1,450	18 x 21.5	1,450

µF	V.DC	160V (2C)		200V (2D)		250V (2E)		400V (2G)		450V (2W)
µF	Code	Φ D x L	mA	Φ D xL	mA	Φ D xL	mA	D x L	mA	D x L	mA
3.3	3R3					12.5 x 13.5	60			12.5 x 13.5	40
4.7	4R7					12.5 x 13.5	65	12.5 x 13.5	45	12.5 x 13.5	45
10	100			12.5 x 13.5	80	12.5 x 13.5	70	12.5 x 13.5	50	12.5 x 16	75
22	220			12.5 x 16	10	12.5 x 13.5	105	16 x 16.5	85	16 x 16.5	85
33	330	12.5 x 13.5	95	12.5 x 16	120	16 x 16.5	180	18 x 16.5	100	18 x 16.5	100
47	470	16 x 16.5	240	16 x 16.5	220	16 x 16.5	220	18 x 21.5	130
100	101	16 x 16.5	250	18 x 16.5	280	18 x 16.5	260

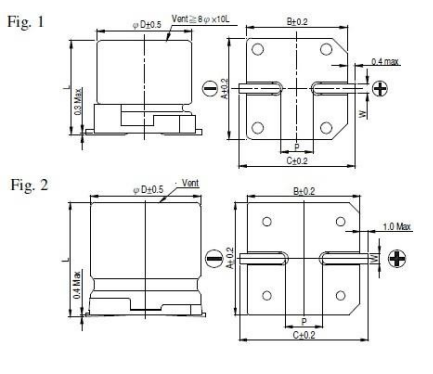

LEAD SPACING AND DIAMETER

D	L	A	B	C	W	P±0.2	Fig. No.
4	5.7 + 0.3	4.3	4.3	5.1	0.5 ~ 0.8	1.0	1
5	5.7 + 0.3	5.3	5.3	5.9	0.5 ~ 0.8	1.5	1
6.3	5.7 + 0.3	6.6	6.6	7.2	0.5 ~ 0.8	2.0	1
6.3	7.7 + 0.3	6.6	6.6	7.2	0.5 ~ 0.8	2.0	1
8	10.0 + 0.5	8.4	8.4	9.0	0.7 ~ 1.1	3.1	1
10	7.7 + 0.3	10.4	10.4	11.0	0.7 ~ 1.3	4.7	1
10	10.0 + 0.5	10.4	10.4	11.0	0.7 ~ 1.3	4.7	1
10	10.3 + 0.5	10.4	10.4	11.0	0.7 ~ 1.3	4.7	1
13	13.5 + 0.5	13.0	13.0	13.7	1.1 ~ 1.4	4.4	2
13	16.0 + 0.5	13.0	13.0	13.7	1.1 ~ 1.4	4.4	2
16	16.5 + 0.5	17.0	17.0	18.0	1.1 ~ 1.4	6.4	2
16	21.5 + 0.5	17.0	17.0	18.0	1.1 ~ 1.4	6.4	2
18	16.5 + 0.5	19.0	19.0	20.0	1.1 ~ 1.4	6.4	2
18	21.5 + 0.5	19.0	19.0	20.0	1.1 ~ 1.4	6.4	2

FEATURES

◆ Standard 105℃,2,000 hours assured
◆ Voltage Range 6.3 Vdc ~ 450Vdc,4Φ ~18Φ
◆ CapacitanceRange1µF~ 8,200 µF
◆ Automotive versionavailable,TS-16949
◆ RoHS Compliant
