Axial Leads Metallized Polypropylene Film Capacitor | Flat Oval | CDEB
CDEB is constructed with metallized polypropylene film as medium and electrode, wrapped and sealed with flame-resistance plastic and epoxy resin, with high reliability, high-temperature-resistance, small volume, large capacity and good self-healing property.
‧ Mainly used in instruments and the DC & AC circuit of the household equipment and acoustics system.
‧ Mainly used in instruments and the DC & AC circuit of the household equipment and acoustics system.
FEATURES
‧ CDEB is constructed with metallized polypropylene film as medium and electrode, wrapped and sealed with flame-resistance plastic and epoxy resin, with high reliability, high-temperature-resistance, small volume, large capacity and good self-healing property.
‧ Mainly used in instruments and the DC & AC circuit of the household equipment and the fractional frequency circuit of acoustics system.
SPECIFICATIONS

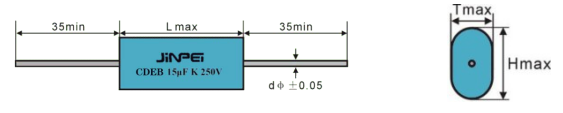

| CAP | L | T | H | d | L | T | H | d | L | T | H | d | L | T | H | d | L | T | H | d |
| 223 | 0.022 — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | 16.0 | 7.5 | 10.5 | 0.6 |
| 333 | 0.033 — | — | — | — | — | — | — | — | — | — | — | — | 16.0 | 7.0 | 10 | 0.6 | 21.0 | 6.5 | 9.5 | 0.6 |
| 473 | 0.047 — | — | — | — | — | — | — | — | — | — | — | — | 16.0 | 8.5 | 12 | 0.8 | 21.0 | 7.5 | 12 | 0.6 |
| 683 | 0.068 — | — | — | — | — | — | — | — | — | — | — | — | 21.0 | 7.0 | 11.5 | 0.6 | 26 | 7.0 | 13 | 0.6 |
| 104 | 0.1 16.0 | 6.0 | 9.0 | 0.6 | 21.0 | 7.0 | 10.5 | 0.6 | 26.0 | 6.5 | 13 | 0.6 | 26 | 7.0 | 11.5 | 0.6 | 26 | 8.5 | 14.5 | 0.8 |
| 224 | 0.22 21.0 | 5.0 | 9.0 | 0.6 | 16.0 | 6.5 | 10.5 | 0.6 | 16.0 | 12.0 | 16 | 0.8 | 26 | 10.0 | 16 | 0.8 | 32 | 10.5 | 18 | 0.8 |
| 334 | 0.33 16.0 | 7.0 | 10.5 | 0.6 | 16.0 | 9.0 | 13.0 | 0.6 | 21.0 | 10.5 | 15 | 0.8 | 32 | 10.0 | 17.5 | 0.8 | 37.5 | 11.5 | 20 | 0.8 |
| 474 | 0.47 16.0 | 8.5 | 12.5 | 0.8 | 21.0 | 9.0 | 14.0 | 0.6 | 21.0 | 13.0 | 17 | 0.8 | 37.5 | 10.5 | 19.5 | 0.8 | 47.5 | 10.5 | 21 | 0.8 |
| 684 | 0.68 21.0 | 6.8 | 12.0 | 0.6 | 21.0 | 10.0 | 14.0 | 0.8 | 26 | 12.0 | 18 | 0.8 | 47.5 | 10.0 | 20.5 | 0.8 | 57.5 | 11.5 | 23.5 | 0.8 |
| 105 | 1.0 21.0 | 8.5 | 13.5 | 0.8 | 26 | 9.0 | 13.0 | 0.8 | 26 | 15.0 | 20.5 | 1.0 | 57.5 | 10.5 | 23 | 0.8 | 67.5 | 12.5 | 25 | 1.0 |
| 225 | 2.2 31 | 11.0 | 17.5 | 0.8 | 32 | 11.5 | 16.0 | 0.8 | 32 | 18.5 | 26.5 | 1.0 | 67.5 | 15.5 | 27.5 | 1.0 | 67.5 | 20.0 | 32.5 | 1.0 |
| 335 | 3.3 32 | 11.5 | 17.5 | 0.8 | 32 | 13.5 | 19.5 | 0.8 | 32 | 23.0 | 32.5 | 1.0 | 67.5 | 19.5 | 31.5 | 1.0 | 67.5 | 20.0 | 32.5 | 1.0 |
| 475 | 4.7 31 | 16.5 | 22.5 | 1.0 | 37.5 | 15.0 | 22.0 | 1.0 | 37.5 | 24.0 | 35 | 1.0 | 67.5 | 24.0 | 36.5 | 1.0 | — | — | — | — |
| 565 | 5.6 37.5 | 13.0 | 20.5 | 1.0 | 47.5 | 14.5 | 21.0 | 0.8 | 47.5 | 21.0 | 34 | 1.0 | — | — | — | — | — | — | — | — |
| 685 | 6.8 47.5 | 11.0 | 20.5 | 0.8 | 47.5 | 15.0 | 23.0 | 1.0 | 57.5 | 20.5 | 33.5 | 1.0 | — | — | — | — | — | — | — | — |
| 825 | 8.2 47.5 | 12.5 | 22.0 | 1.0 | 57.5 | 14.0 | 22.0 | 1.0 | 57.5 | 23.0 | 35.5 | 1.0 | — | — | — | — | — | — | — | — |
| 106 | 10.0 47.5 | 15.0 | 23.5 | 1.0 | 57.5 | 14.5 | 24.5 | 1.0 | 67.5 | 23.0 | 35.5 | 1.0 | — | — | — | — | — | — | — | — |
| 156 | 15.0 57.5 | 14.5 | 26.0 | 1.0 | 67.5 | 16.0 | 27.0 | 1.0 | — | — | — | — | — | — | — | — | — | — | — | — |
| 226 | 22.0 57.5 | 18.5 | 29.5 | 1.0 | 67.5 | 19.0 | 32.5 | 1.0 | — | — | — | — | — | — | — | — | — | — | — | — |
| 306 | 30.0 67.5 | 19.0 | 32.0 | 1.0 | 67.5 | 23.5 | 36.0 | 1.0 | — | — | — | — | — | — | — | — | — | — | — | — |
| 336 | 33.0 67.5 | 20.0 | 33.5 | 1.0 | 67.5 | 24.5 | 37.5 | 1.0 | — | — | — | — | — | — | — | — | — | — | — | — |
| 476 | 47.0 67.5 | 26.0 | 38.0 | 1.0 | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — |
Note: Specification are subject to change without notice. For more detail and update, please visit our website.
PART NUMBER EXAMPLE
