Axial Leads Metallized Polyester Film Capacitor | Flat Oval | CDDB
◆OPERATINGTEMPERATURE: -40℃ TO + 105℃
◆CAPACITANCERANGE: 0.01µF ~68µF
◆CAPACITANCETOLERANCE: J (±5%), K (±10%)
◆RATEDVOLTAGE: 100V, 250V, 400V, 630V(DC)
◆WITHSTAND VOLTAGE: 1.6U 2s (1.5U 5s)
FEATURES
CDDB is constructed with metallized polyester film as medium and electrode, wrapped and sealed with flame-resistance plastic and epoxy resin, with high reliability,high-temperature-resistance, small volume, large capacity and good self-healing property.
Mainly used in instruments and the DC & AC circuit of the household equipment and the fractional frequency circuit of acoustics system.

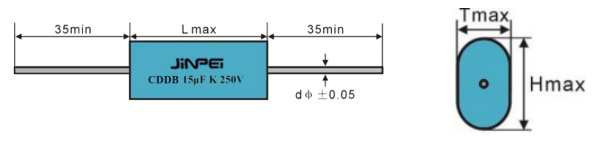

| CAP | L | T | H | d | L | T | H | d | L | T | H | d | L | T | H | d | |
| 103 | 0.01 | 15.0 | 5.0 | 8.0 | 0.6 | 15.0 | 5.0 | 8.0 | 0.6 | 15.0 | 5.0 | 8.0 | 0.6 | 15.0 | 5.0 | 8.0 | 0.6 |
| 223 | 0.022 | 15.0 | 5.0 | 8.5 | 0.6 | 15.0 | 5.0 | 8.5 | 0.6 | 15.0 | 5.0 | 8.5 | 0.6 | 15.0 | 5.0 | 8.5 | 0.6 |
| 333 | 0.033 | 15.0 | 5.0 | 8.5 | 0.6 | 15.0 | 5.0 | 8.5 | 0.6 | 15.0 | 5.0 | 8.5 | 0.6 | 20.0 | 5.0 | 9.0 | 0.6 |
| 473 | 0.047 | 15.0 | 5.0 | 8.5 | 0.6 | 15.0 | 5.0 | 8.5 | 0.6 | 15.0 | 5.0 | 8.5 | 0.6 | 20.0 | 5.0 | 9.0 | 0.6 |
| 683 | 0.068 | 15.0 | 5.0 | 8.5 | 0.6 | 15.0 | 5.0 | 8.5 | 0.6 | 20.0 | 5.0 | 8.5 | 0.6 | 20.0 | 6.0 | 11.0 | 0.6 |
| 104 | 0.1 | 15.0 | 5.0 | 8.5 | 0.6 | 15.0 | 5.0 | 8.5 | 0.6 | 20.0 | 5.0 | 8.5 | 0.6 | 15.5 | 7.0 | 10.5 | 0.6 |
| 224 | 0.22 | 15.0 | 5.0 | 8.5 | 0.6 | 20.0 | 5.0 | 9.0 | 0.6 | 15.5 | 7.5 | 11.5 | 0.6 | 20.5 | 7.5 | 11.5 | 0.6 |
| 334 | 0.33 | 15.0 | 5.0 | 9.0 | 0.6 | 15.5 | 7.0 | 10.5 | 0.6 | 20.5 | 6.5 | 11.5 | 0.6 | 20.5 | 8.0 | 14.5 | 0.6 |
| 474 | 0.47 | 15.5 | 6.0 | 10.0 | 0.6 | 15.5 | 8.5 | 12.5 | 0.8 | 26.0 | 6.5 | 11.0 | 0.6 | 26.0 | 7.5 | 15.5 | 0.6 |
| 684 | 0.68 | 20.0 | 5.0 | 9.0 | 0.6 | 20.5 | 7.5 | 11.5 | 0.6 | 26.0 | 7.5 | 12.5 | 0.6 | 32.0 | 8.0 | 16.0 | 0.6 |
| 105 | 1.0 | 20.0 | 7.0 | 11.0 | 0.6 | 25.0 | 7.0 | 12.0 | 0.6 | 32.0 | 7.5 | 14.0 | 0.6 | 32.0 | 9.5 | 18.5 | 0.8 |
| 225 | 2.2 | 25.0 | 8.0 | 12.0 | 0.6 | 26.0 | 11.5 | 15.5 | 0.8 | 37.5 | 10.5 | 17.0 | 0.8 | 37.5 | 13.5 | 21.5 | 1.0 |
| 335 | 3.3 | 25.0 | 9.5 | 16.0 | 0.8 | 26.0 | 14.0 | 18.5 | 0.8 | 37.5 | 13.0 | 20.5 | 1.0 | 47.5 | 17.0 | 26.5 | 1.0 |
| 405 | 4.0 | 31.0 | 8.0 | 15.0 | 0.6 | 32.0 | 13.5 | 17.5 | 0.8 | 37.5 | 14.0 | 22.0 | 1.0 | 47.5 | 15.5 | 23.5 | 1.0 |
| 475 | 4.7 | 31.0 | 9.0 | 15.5 | 0.8 | 32.0 | 13.5 | 19.5 | 0.8 | 37.5 | 15.0 | 24.5 | 1.0 | 47.5 | 17.5 | 25.0 | 1.0 |
| 565 | 5.6 | 31.0 | 10.0 | 17.0 | 0.8 | 32.0 | 15.0 | 21.0 | 1.0 | 47.5 | 13.5 | 23.0 | 1.0 | 57.5 | 16.5 | 24.5 | 1.0 |
| 685 | 6.8 | 31.0 | 11.0 | 18.5 | 0.8 | 37.5 | 14.0 | 22.0 | 1.0 | 57.5 | 13.0 | 22.5 | 1.0 | 57.5 | 18.5 | 26.5 | 1.0 |
| 825 | 8.2 | 31.0 | 12.5 | 19.0 | 0.8 | 37.5 | 15.5 | 23.5 | 1.0 | 57.5 | 14.5 | 24.0 | 1.0 | 57.5 | 20.5 | 28.5 | 1.0 |
| 106 | 10.0 | 31.0 | 14.5 | 21.0 | 1.0 | 37.5 | 16.5 | 26.5 | 1.0 | 57.5 | 16.0 | 27.0 | 1.0 | 57.5 | 22.7 | 30.5 | 1.0 |
| 156 | 15.0 | 46.0 | 15.0 | 22.0 | 1.0 | 47.5 | 17.5 | 27.0 | 1.0 | 57.5 | 20.0 | 31.0 | 1.0 | 57.5 | 27.0 | 37.0 | 1.0 |
| 226 | 22.0 | 46.0 | 17.5 | 25.0 | 1.0 | 47.5 | 22.0 | 33.0 | 1.0 | 67.5 | 22.0 | 33.0 | 1.0 | — | — | — | — |
| 336 | 33.0 | 56.0 | 19.0 | 27.0 | 1.0 | 57.5 | 23.5 | 34.5 | 1.0 | — | — | — | — | — | — | — | — |
| 476 | 47.0 | 56.0 | 24.5 | 31.0 | 1.0 | 56.0 | 32.0 | 39.0 | 1.0 | — | — | — | — | — | — | — | — |
| 686 | 68.0 | 56.0 | 29.0 | 35.0 | 1.0 | 61.0 | 37.5 | 45.0 | 1.0 | — | — | — | — | — | — | — | — |
Note: Specification are subject to change without notice. For more detail and update, please visit our website.
PART NUMBER EXAMPLE
INTRODUCTION
◆ CDDB is constructed with metallized polyester film as medium and electrode, wrapped and sealed with flame-resistance plastic and epoxy resin, with high reliability,high-temperature-resistance, small volume, large capacity and good self-healing property.
◆ Mainly used in instruments and the DC &AC circuit of the household equipment and the fractional frequency circuit of acoustics system.
