Axial Leads Aluminum Electrolytic Capacitors | 85℃| CAOA
FEATURES
‧85℃, 2000 hours assured.
‧Voltage range of 6.3 ~ 450V
‧Wide operating temperature range, from -40℃~ +85℃
‧85℃, 2000 hours assured.
‧Voltage range of 6.3 ~ 450V
‧Wide operating temperature range, from -40℃~ +85℃

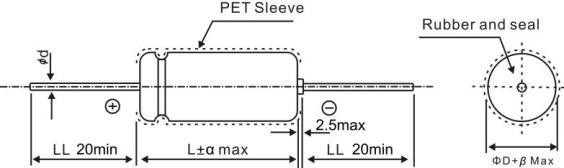

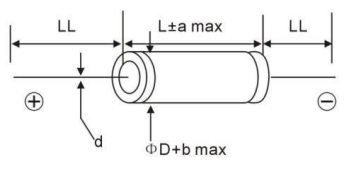

DIAGRAM OF DIMENSIONS
LEAD DIAMETER
| ØD | 5 | 6.3 | 8 | 10 | 13 | 16 | 18 | 22 | 25 |
| Ød | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 | 0.8 | 0.8 | 0.8 | 0.8 |
| α | 1.5 | 1.5 | 1.5 | 2.0 | 2.0 | 2.0 | 2.0 | 2.0 | 2.0 |
| β | 0.5 | 0.5 | 0.5 | 1.0 | 1.0 | 1.0 | 1.0 | 1.0 | 1.0 |
DIMENSIONS: Diameter (DØ) x Length (L) mm
RIPPLE CURRENT. mA at 85℃, 120Hz
| (0J) | (1A) | (1C) | (1E) | (1V) | |||||
| µF | ØDxL | mA ØDxL | mA ØDxL | mA | ØDxL | mA | ØDxL | mA | |
| 10 | — | — — | — — | — | 5×12 | 40 | 5×12 | 55 | |
| 22 | — | — — | — 5×12 | 71 | 6.3×13 | 76 | 6.3×13 | 70 | |
| 33 | — | — — | — 5×12 | 85 | 6.3×13 | 80 | 6.3×13 | 115 | |
| 47 | 5×12 | 87 5×12 | 94 6.3×13 | 88 | 6.3×13 | 100 | 6.3×13 | 138 | |
| 100 | 6.3×13 | 121 6.3×13 | 145 6.3×13 | 160 | 8×13 | 215 | 8×16 | 232 | |
| 220 | 6.3×13 | 215 8×13 | 231 8×13 | 298 | 8×16 | 319 | 10×17 | 401 | |
| 330 | 8×16 | 305 8×16 | 327 8×16 | 365 | 10×17 | 454 | 10×21 | 514 | |
| 470 | 8×16 | 364 8×16 | 390 8×16 | 460 | 10×21 | 524 | 13×22 | 613 | |
| 1000 | 10×17 | 662 10×17 | 671 10×21 | 775 | 13×22 | 873 | 13×27 | 955 | |
| 2200 | 13×22 | 929 13×22 | 1051 13×27 | 1125 | 16×28 | 1344 | 16×33 | 1421 | |
| 3300 | 13×27 | 1150 13×27 | 1288 16×28 | 1454 | 16×33 | 1611 | 18×40 | 1640 | |
| 4700 | 13×27 | 1354 16×28 | 1552 16×33 | 1650 | 18×40 | 1881 | 22×40 | 2280 | |
| 6800 | 16×28 | 1762 16×33 | 1930 16×40 | 2040 | 18×40 | 2170 | 22×40 | 2470 | |
| 10000 | 16×40 | 2062 18×40 | 2122 18×40 | 2503 | 22×40 | 2893 | 25×41 | 3180 |
Note: Specifications are subject to change without notice. For more detail and update, please visit our website.
INTRODUCTION
◆ 85℃, 2000 hours assured.
◆ Voltage range of 6.3 ~ 450V
◆ Wide operating temperature range, from -40℃~ +85℃
