Brief Introduction
CBDC Series silver-cased ,hermetic sealed, with insulation sleeve wet tantalum electrolytic capacitors.With polar axial leads are characterized in stable and excellent performances, and high reliability.
CBDC Series meets the requirements of Chinese Electronic industry standard SJ/T10030-91, widely used in electronic equipment for military and civil applications such as telecommunication, aerospace and aviation.
General Characteristics
Operating Temperature Range: -55℃～+125℃(>85℃ with rated voltage derating); Capacitance range: 1μF ~1500μF
Capacitance Tolerance: K=±10% ,M=±20% Voltage: 6.3V~125V
DC Leakage: at +20℃, I0≤0.0008CR UR or 1μA(Whichever is greater); at +85℃ and +125℃, I0≤0.0060 CR UR or 6μA(Whichever is greater) Dissipation Factor at 20℃: please see Table 2
Impedance at -55℃ : please see Table 2
Case sizes, Dimensions and Max. weight: As shown in Table 1 and figure 1. Nominal Capacitance, Rated voltage, Voltage Derating：See table 2

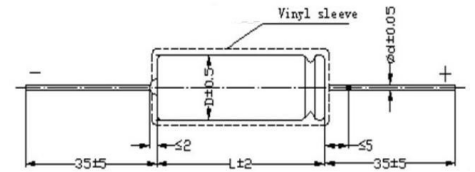

Drawing ，Case Dimension and Max. weight
PART NUMBER EXAMPLE
Notes
1、Tantalum capacitors can’t been measured by multimeter (Easily cause irreversible damage and lead to reject)
2、Capacitance, DF measure frequency: 100Hz，U-=2.20V，U~=1.0 0V(effective value)
3、Measure leakage current above 85℃,please use derated voltage. 4、Special size and big capacitance products, please negotiate with us
Features
CBDC Series silver-cased ,hermetic sealed, with insulation sleeve
wet tantalum electrolytic capacitors.With polar axial leads are characterized
in stable and excellent performances, and high reliability.
CBDC Series meets the requirements of Chinese Electronic industry standard SJ/T10030-91, widely used in electronic
equipment for military and civil applications such as telecommunication, aerospace and aviation.
RoHS compliant
