Axial Lead Wet Tantalum Capacitors ▏Hermetic Sealed |CBDAA

Brief Introduction

CBDAA （equative CA301 series)wet electrolyte tantalum capacitors With polar axial leads are characterized in small size, low DC Leakage,Silver case,stable and excellent performances, high reliability and long life.

Series meets the requirements of Chinese Electronic industry standard QZJ840628, QJ/PWV77-2003, widely used in electronic equipment for military and civil applications such as telecommunication, aerospace and aviation.

Datasheet-For-Axial-Lead-Wet-Tantalum-Capacitors-▏Hermetic-Sealed-CBDAA.pdf (1270 downloads)

Technical Characteristics

Operating Temperature Range: -55℃～+125℃(>85℃ use derated voltage)

Capacitance Tolerance: M=±20%,K=±10%

DC Leakage: at +25℃, I ≤0.0008CR UR 1uA(Whichever is greater); at +85℃ I≤ 8 I0 or 8μA(Whichever is greater)

At +125℃, I≤ 8 I0 or 8μA(Whichever is greater) Dissipation factor (tgδ) at 25℃ please see table 2

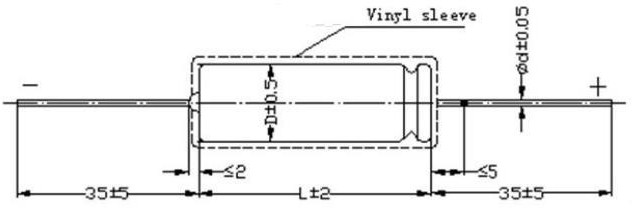

Outline and dimensions

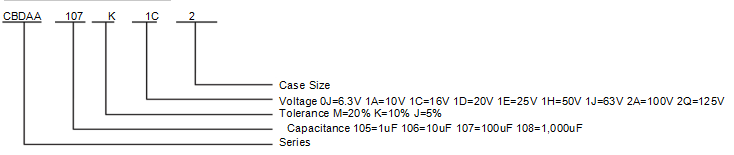

PART NUMBER EXAMPLE

Notes

1、Tantalum capacitors can’t been measured by multimeter (Easily cause irreversible damage and lead to reject)

2、Capacitance, DF measure frequency: 100Hz，U-=2.2 0V，U~=1.0 0V(effective value)

3、Measure leakage current above 85℃,please use derated voltage. 4、Special size and big capacitance products, please negotiate with us

Features

CBDAA Series wet electrolyte tantalum capacitors
With polar axial leads are characterized in small size, low DC Leakage,
Silver case,stable and excellent performances, high reliability and long life.
Series meets the requirements of Chinese Electronic industry standard QZJ840628, QJ/PWV77-2003,
widely used in electronic equipment for military and civil applications
such as telecommunication, aerospace and aviation.

RoHS compliant
