CBDA Series half-sealed tubular wet tantalum electrolytic capacitors
With polar axial leads are characterized in small size, low DC Leakage, stable and excellent performances, high reliability and long life. CBDA
Series meets the requirements of Chinese Electronic industry standard SJ/T10030-91,
widely used in electronic equipment for military and civil applications such as telecommunication, aerospace and aviation.
General Characteristics
Operating Temperature Range: -55X3 ~+125<0(>85<0 with rated voltage derating)
Capacitance range: 1 uF~3300uF
Capacitance Tolerance: ±20%, ±10%
Voltage: 6.3V~125V
DC Leakage: at +20cC, 10^0.001 CRVR or 1 卩 A(Whichever is greater);
at +85P and +125P, I0W0.0080 CRVRor 8 卩 A(Whichever is greater)

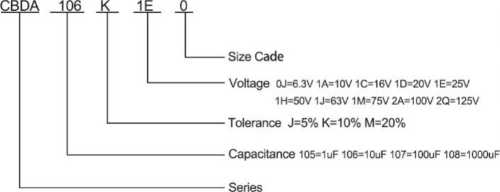

PART NUMBER EXAMPLE

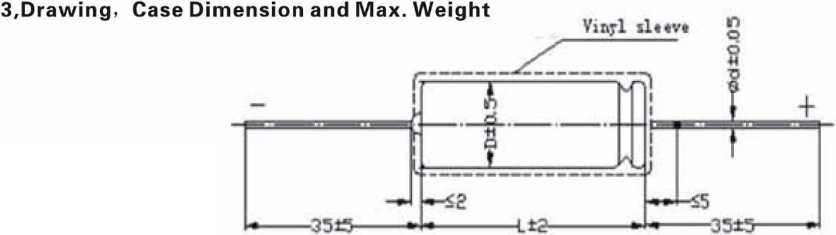

| Code | Max. weight(g) | D±0.5 ( mm ) | L±2 ( mm ) |
| 0 | 3 | 5 | 10 |
| 1 | 4 | 5 | 14 |
| 2 | 5 | 6 | 16 |
| 3 | 7 | 8 | 16 |
| 4 | 10 | 8 | 22 |
| 5 | 14 | 10 | 22 |
| 6 | 17 | 10 | 25 |
| 7 | 20 | 10 | 30 |
| 8 | 23 | 10 | 33 |
Nominal Capacitance, Rated voltage. Voltage Derating,Case size and General Characteristics
| Rated Voltage | Voltage Derating | Case size | Capacitance (mF) | DF(%)Max 25C85C125幻 | lmpedance( Q) -55P 100HZ |
| 6.3 | 4 | 0 | 1.0 | 6 | 1800 |
| 0 | 1.5 | 6 | 1400 | ||
| 0 | 2.2 | 6 | 1100 | ||
| 0 | 3.3 | 6 | 700 | ||
| 0 | 4.7 | 6 | 500 | ||
| 0 | 6.8 | 8 | 350 | ||
| 0 | 10 | 8 | 260 | ||
| 0 | 15 | 10 | 200 | ||
| 0 | 22 | 10 | 180 |
Features
CBDA Series half-sealed tubular wet tantalum electrolytic capacitors
With polar axial leads are characterized in small size,
low DC Leakage, stable and excellent performances, high reliability and long life.
CBDA Series meets the requirements of Chinese Electronic industry standard SJ/T10030-91, widely used in electronic equipment for military and civil applications such as telecommunication, aerospace and aviation.
RoHS compliant
