Axial Lead Wet Tantalum Capacitors ▏Metal Case | CBDE
Brief Introduction and Feature
1)CBDE（equative CA30T series) Metal case ,hermetic sealed, with insulation sleeve wet tantalum electrolytic capacitors.
2)With polar, axial leads through hole, long life, good performances and stability.
3)Widely used in electronic equipment for communication equipment etc. industrial device.
Meet standard: QJ/PWV93-2003
◆ Operating Temperature Range: -55℃~125℃
◆ Rated Voltage Range: 6V~125V
◆ Nominal Capacitance Range: 1.7uF~1,200uF
◆ Capacitance Tolerance(20℃): ±5% 、 ±10%、 ±20%
General Characteristics
Operating Temperature Range: -55℃～+125℃(>85℃ with voltage derating); Capacitance range: 1.7μF~1200μF
Capacitance Tolerance: K=±10% ,M=±20% Voltage: 6V~125V
DF see Table 2
DCL see table 2
Case sizes, Dimensions and Max. weight: As shown in Table 1 and figure 1. Nominal Capacitance, Rated voltage, Voltage Derating：See table 2

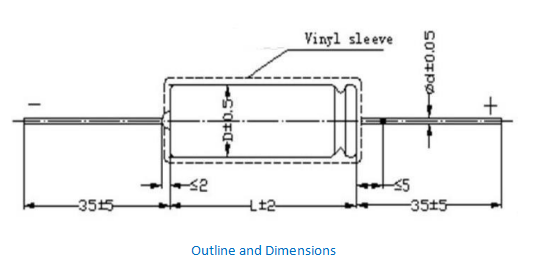

Drawing,Case Dimension and Max. weight
PART NUMBER EXAMPLE
Notes
1、Tantalum capacitors can’t been measured by multimeter (Easily cause irreversible damage and lead to reject)
2、Capacitance, DF measure frequency: 100Hz，U =2.20– -1.0V，U =1.00 -~0.5V(effective value), measure method is by series equivalent circuit.
3、Measure leakage current above 125℃,please use derated voltage. DLC read within 5 minute.
4、Special size and big capacitance products, please negotiate with us
Features
1） CBDE, Metal case ,hermetic sealed, with insulation sleeve wet tantalum electrolytic capacitors.
2） With polar, axial leads through hole, long life, good performances and stability.
3） Widely used in electronic equipment for communication equipment etc. industrial device
RoHS compliant
