Axial Lead Solid Tantalum Capacitors ▏Metal Case | CBDY
Brief Introduction
CBDY Series metal- cased solid tantalum electrolytic capacitors with polar axial leads are characterized in small s ize, wide operating temperature range, stable performances, high reliability and long life, CBDY Series meets the requirements of Chinese National Standard GB 8583- 88, widely used in instruments meters and other electronic equipment for military and civil applications
General Characteristics
Temperature Range: – 55℃～＋125℃(> 85℃ with rated voltage derating).
Capacitance Tolerance:± 20% ,± 10%
DC Leakage:20℃ lO≤0.01CrUr or 0.5uA(whichever greater)
Diss ipation fac tor (20℃): seetable1
Tempera ture Cha rac teris tics : Seetable1

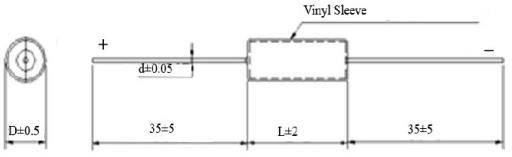

Drawing , Dimensions and Max Weight
| Case code | Weight Max(g) | D±0.5(mm) | L±2 (mm) | d±0.1(mm) |
| 1 | 0.7 | 3.2 | 8 | 0.4 |
| 2 | 2.3 | 5 | 12 | 0.6 |
| 3 | 3.0 | 6 | 14 | 0.6 |
| 4 | 4.0 | 8 | 14 | 0.8 |
| 5 | 8.0 | 8 | 22 | 0.8 |
| 6 | 14.0 | 10 | 22 | 0.8 |
Note: When enc a ps ula ted with pla s tic ins ula tion s leeve, dimens ion D inc rea s e 0 .8 mm a nd L inc rea s e 2 mm.
No minal Capacitance, Ratedvoltage , Vol tage Derating
| R ated voltage | 6.3 |
10 |
16 |
25 |
32 | 40 | 63 | 75 | 100 |
| Voltage Derating | 4 |
6.3 |
10 |
16 |
20 | 25 | 40 | 50 | 63 |
| C ode C a pa c ita nc e ( μF) | 4 |
6.3 |
10 |
16 |
20 | 25 | 40 | 50 | 63 |
|
1.0 |
0.68 |
0.33 |
0.33 |
0.22 | 0.22 | 0.22 | 0.22 | 0.047 | |
|
1.5 |
1.0 |
0.47 |
0.47 |
0.33 | 0.33 | 0.33 | 0.33 | 0.068 | |
| 2.2 1.5 |
0.68 |
0.68 |
0.47 | 0.47 | 0.47 | 0.1 | |||
| 1 3.3 2.2 |
1.0 |
1.0 |
0.68 | 0.68 | 0.15 | ||||
|
4.7 |
3.3 |
1.5 |
1.5 |
1.0 | 1.0 | 0.22 | |||
|
6.8 |
4.7 |
2.2 |
2.2 |
1.5 | 0.33 | ||||
|
10 |
6.8 |
3.3 |
|||||||
|
15 |
10 |
4.7 |
3.3 |
2.2 | 1.5 | 0.68 | 0.47 | ||
|
22 |
15 |
6.8 |
4.7 |
3.3 | 2.2 | 1.0 | 0.68 | 0.47 | |
|
33 |
22 |
10 |
6.8 |
4.7 | 3.3 | 1.5 | 1.0 | 0.68 | |
|
47 |
33 |
15 |
10 |
6.8 | 4.7 | 2.2 | 1.5 | 1.0 | |
|
47 |
22 |
15 |
10 | 6.8 | 3.3 | 2.2 | 1.5 | ||
|
68 |
33 |
3.3 | |||||||
| 3 |
68 |
47 |
22 |
15 | 10 | 4.7 | 4.7 | ||
|
100 |
100 |
68 |
33 |
15 | |||||
|
150 |
50 |
100 |
47 |
22 | 22 | 6.8 | 2.2 | ||
|
220 |
68 |
33 | 33 | 10 | 3.3 | ||||
| 5 330 |
220 |
150 |
100 |
47 | 47 | 15 | |||
|
470 |
330 |
220 |
68 | 22 | |||||
|
680 |
470 |
330 |
150 |
100 | 68 | 33 | |||
|
1000 |
680 |
470 |
220 |
150 | 100 | 47 | |||
Features
CBDY S eries metal- cased solid tantalum electrolytic capacitors with polar axial
leads are characterized in small size wide opeerating temperature range, stable performances, high reliability and long life,
CBDY S eries meets the requirements of Chin se National S tandard GB8583- 88, widely used in instruments meters and other
electronic equipment for military and civil applications
RoHS compliant
